STEDI  |  SKU: LEDTYPE-X-SRT

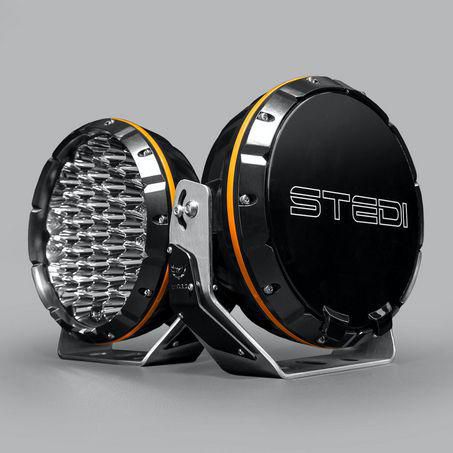

STEDI - LED Driving Lights 8.5" Type-X™ Sport (Pair)

$699.00
Tax included Shipping calculated at checkout.


Description

STEDI - 8.5" Type-X™ Sport (Pair)

Specifications:

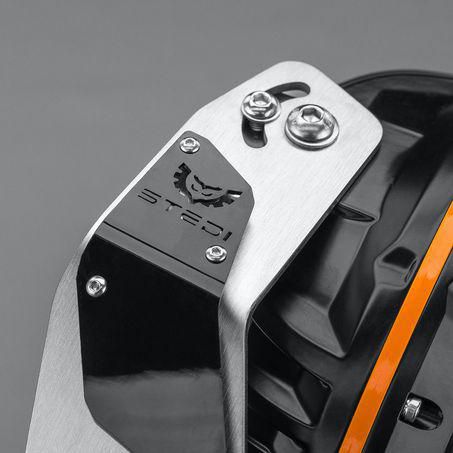

  • 4mm thick 304 Series Stainless Mounting bracket, which includes a rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable scratch-resistant
  • 100% Polyester UV and abrasion-resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises of 36 OSRAMs OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.

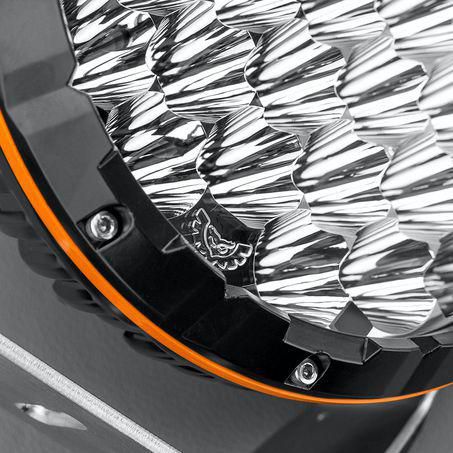

  • Four wide-beam reflectors are built, which form a lateral-shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI)
LED 36 x Osram Oslon SSL
RAW LUMENS 20,780 (Pair)
TESTED LUMENS 14,950 (Pair)
AMP DRAW 9.8A @ 13.2v (each)
POWER DRAW 129W
CANDELA 1,102,500cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.35kg (each)
OPERATING TEMP -40°C - 60°C
PHOTOMETRIC DATA
10 m 11,025 Lx
50 m 441 Lx
200 m 27 Lx
300 m 12 Lx
400 m 6 Lx
1,000 m 1.1 Lx
1,050 m 1 Lx
