Description
The EF3549 14" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality.

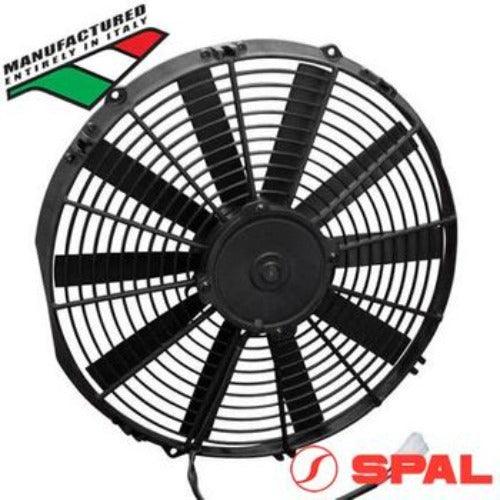

EF3549 14" SPAL THERMO FAN DETAILS
Spal Fan Model # VA08-BP51/C-23A
U.S. Part # 30101806
Voltage 24V
Flow Type Puller
Blade Diam. 14 inch (350mm)
Blade Type Straight
Shroud Type Finger Guard
Amps 5.0
CFM 1295
M3/H 2200
EF3549 14" SPAL THERMO FAN DIMENSIONS
A 366mm / 14.41"
B 382mm / 15.04"
C 191mm / 7.51"
D 331mm / 12.99"
E 62mm / 2.44"
