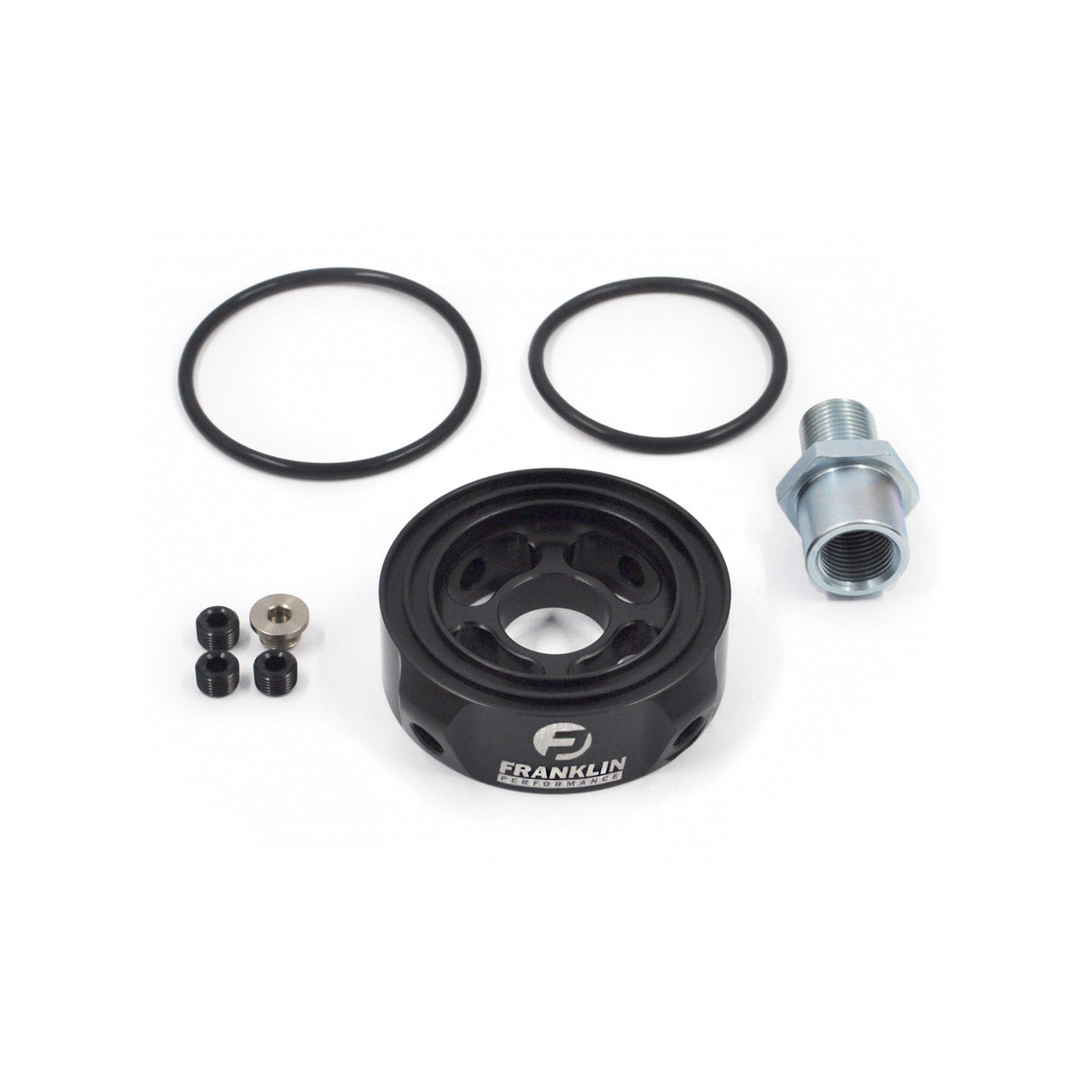

Sandwich plate adaptor for installing oil pressure or temperature sensors between the oil filter and the engine on most Japanese vehicles.
This is very high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The product has a unique feature that the sensor ports are angled away from the engine, giving more clearance to install larger sensors.
Three 1/8"NPT ports and one M10x1.0 port are provided for temperature or pressure sensors.
The sandwich plate is supplied a choice of different threaded adaptors to suit your application. The adaptors are: 3/4" UNF, 13/16"-16 UNF, M20x1.5 and M18x1.5. Please choose the adaptor you require from the menu.
The main body is made from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance. The adaptors are made from medium tensile 1045 steel and then zinc plated.
The sensor adaptor sandwich plate has two o-rings on the block side to fit a wider range of vehicles. The o-ring dimensions are:
- Inner o-ring: 58mm inside x 66mm outer diameter.
- Outer o-ring: 69mm inside x 77mm outer diameter.
