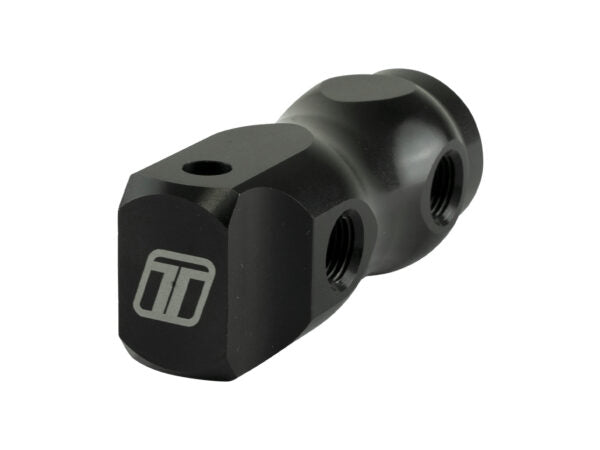

The Turbosmart Simple Reference Manifold Block is a professional solution for remote mounting and sharing of engine (MAP) reference with multiple outputs such as Fuel Pressure Regulators, Maps Sensors, Boost Gauges, Wastegates and Brake Boosters. Manufactured from Billet (6262 T6) Aluminium and Black anodized, with 4 x 1/8 NPT Ports and a simple 1/4 NPT Port, the Simple Reference Distribution Manifold allows 4 1/8 NPT outputs to be shared with the 1/4 NPT Reference and is suitable for both hose tail fittings as well as high-pressure, braided and more exotic fittings and hoses.

Available In
Simple Remote Sensor Manifold
Simple Reference Distribution Manifold
Modular Remote Sensor Manifold
Modular Reference Distribution Manifold
Modular Combo (Sensor & Reference) Manifold

Features
Billet (6262 T6) Aluminium Construction
Mounting Bracket
1/8 NPT Ports
5 Port Shared System, (1 x 1/4 NPT + 4 x 1/8 NPT)
Blanking Plugs and Hose Tail Fittings
