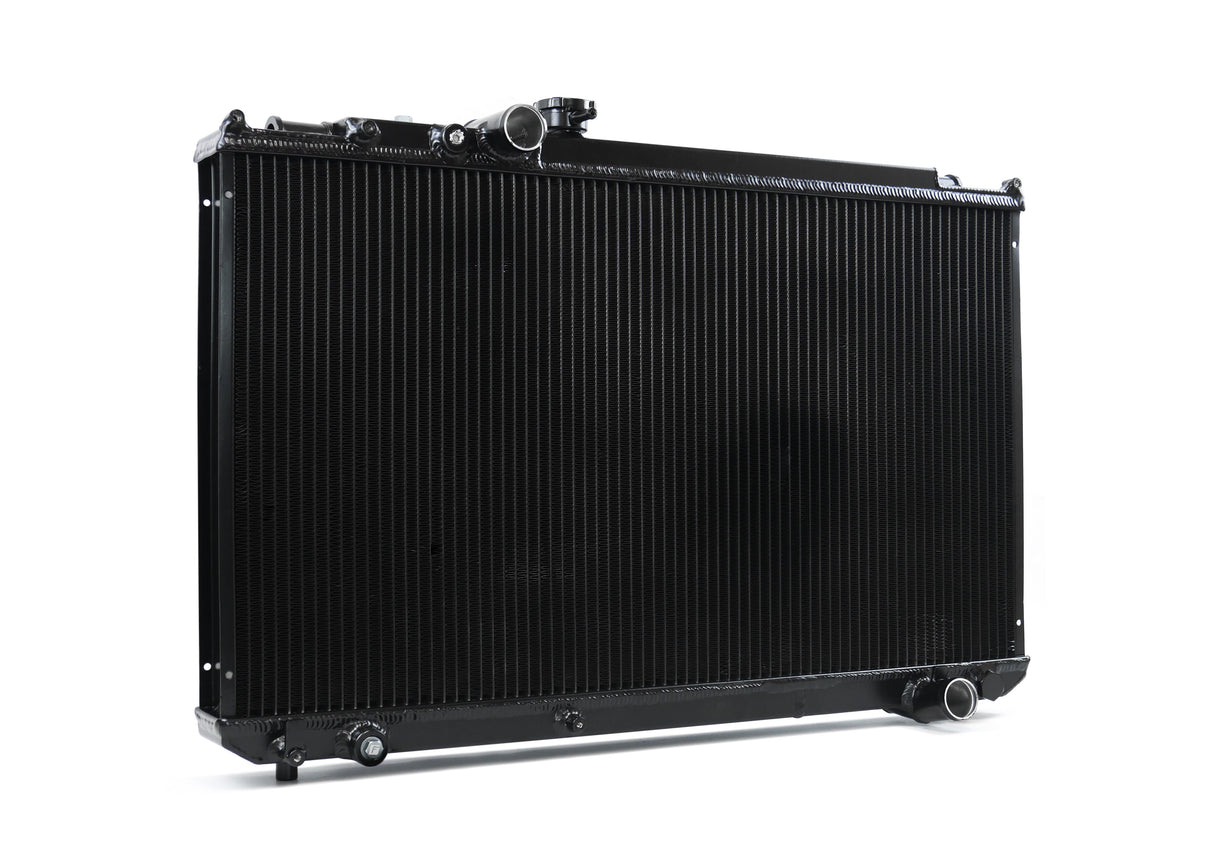

FENIX: RACE7262-57M / -BL / -Z / -Z-BL.

Core size: 400mm x 728mm x 57mm.

Replacement for:

1996-01 Toyota Chaser JZX100 1JZ-GTE 2.5L 6cyl petrol.
1996-01 Toyota Cresta JZX100 1JZ-GTE 2.5L 6cyl petrol.
1996-00 Toyota Mark II JZX100 1JZ-GTE 2.5L 6cyl petrol.
Transmission: Manual.

Upgradeable option for:

1992-96 Toyota Chaser JZX90 1JZ-GTE 2.5L 6cyl petrol.
1992-96 Toyota Cresta JZX90 1JZ-GTE 2.5L 6cyl petrol.
1992-06 Toyota Mark II JZX90 1JZ-GTE 2.5L 6cyl petrol.
Transmission: Manual.

NOTE: JZX100 Upper radiator mounts required for conversion. Will not suit OEM JZX90 fan shroud.

Features:

• Available as single pass or with triple pass baffling.
• 5mm High density core [Single Pass] / 8mm Standard density core [Triple Pass].
• Full Aluminium construction.

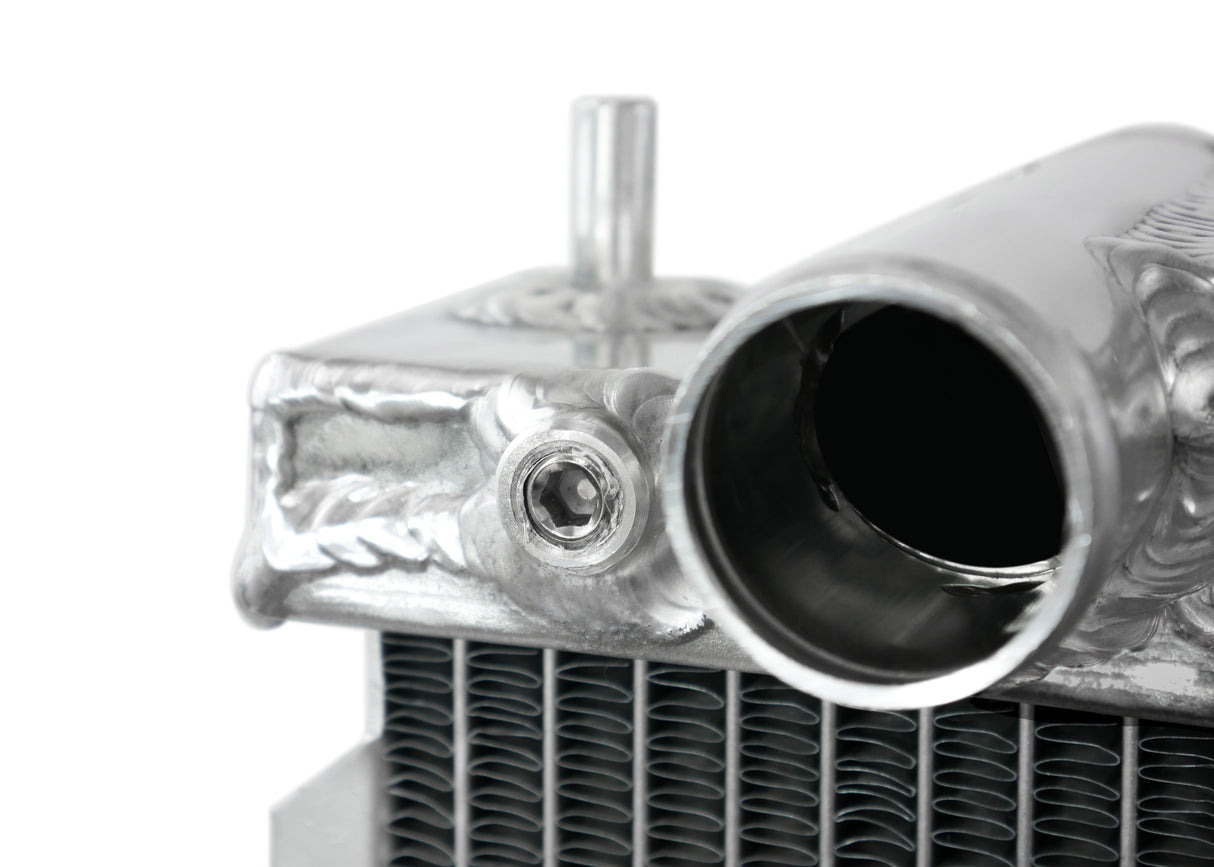

• 1/8” NPT temperature sensor port and hex bung.

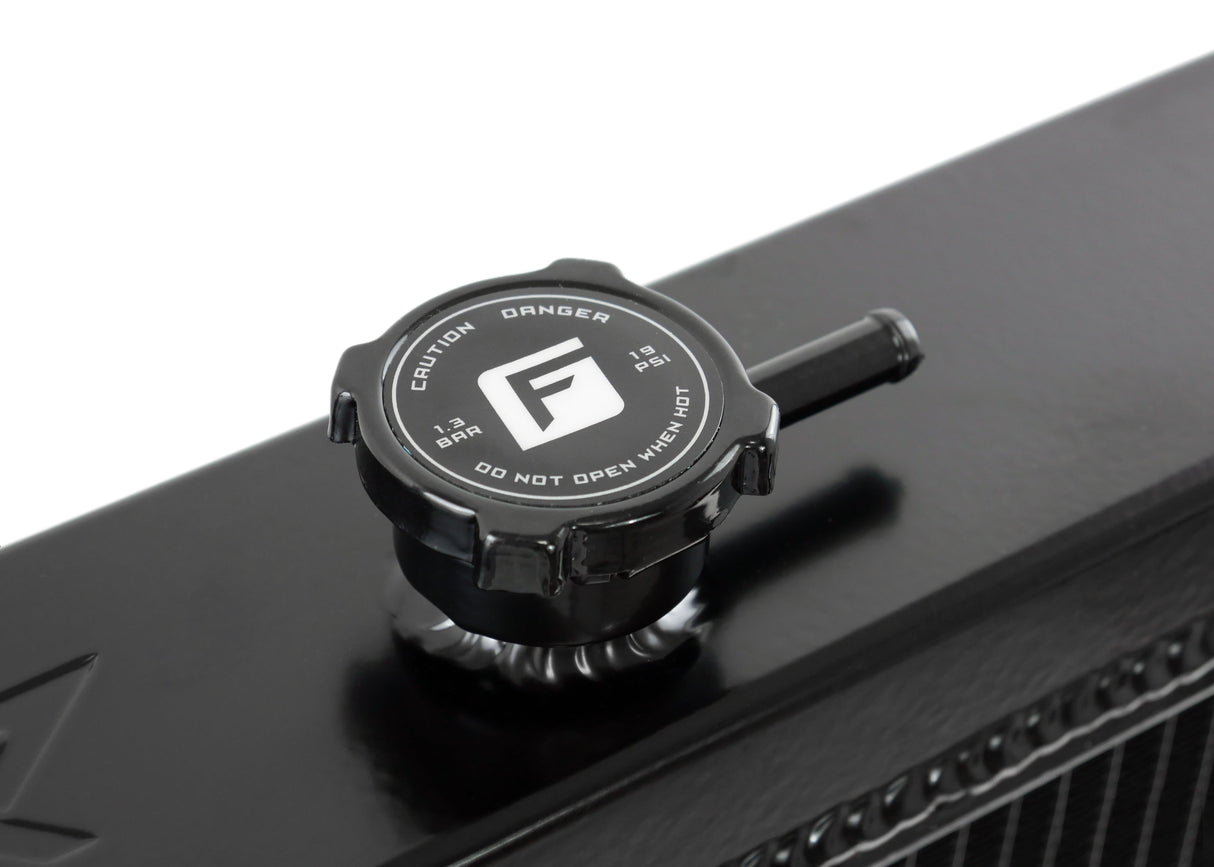

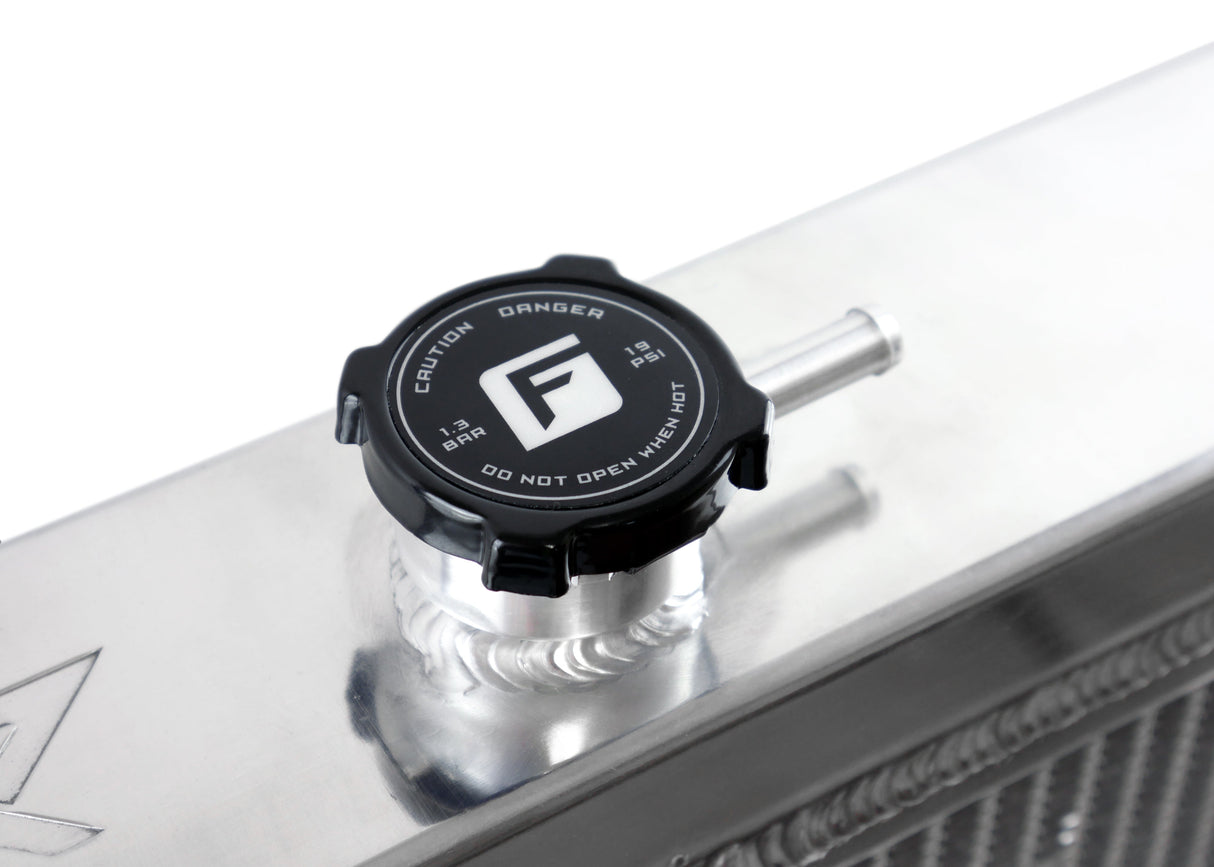

• V2 Fenix radiator cap.

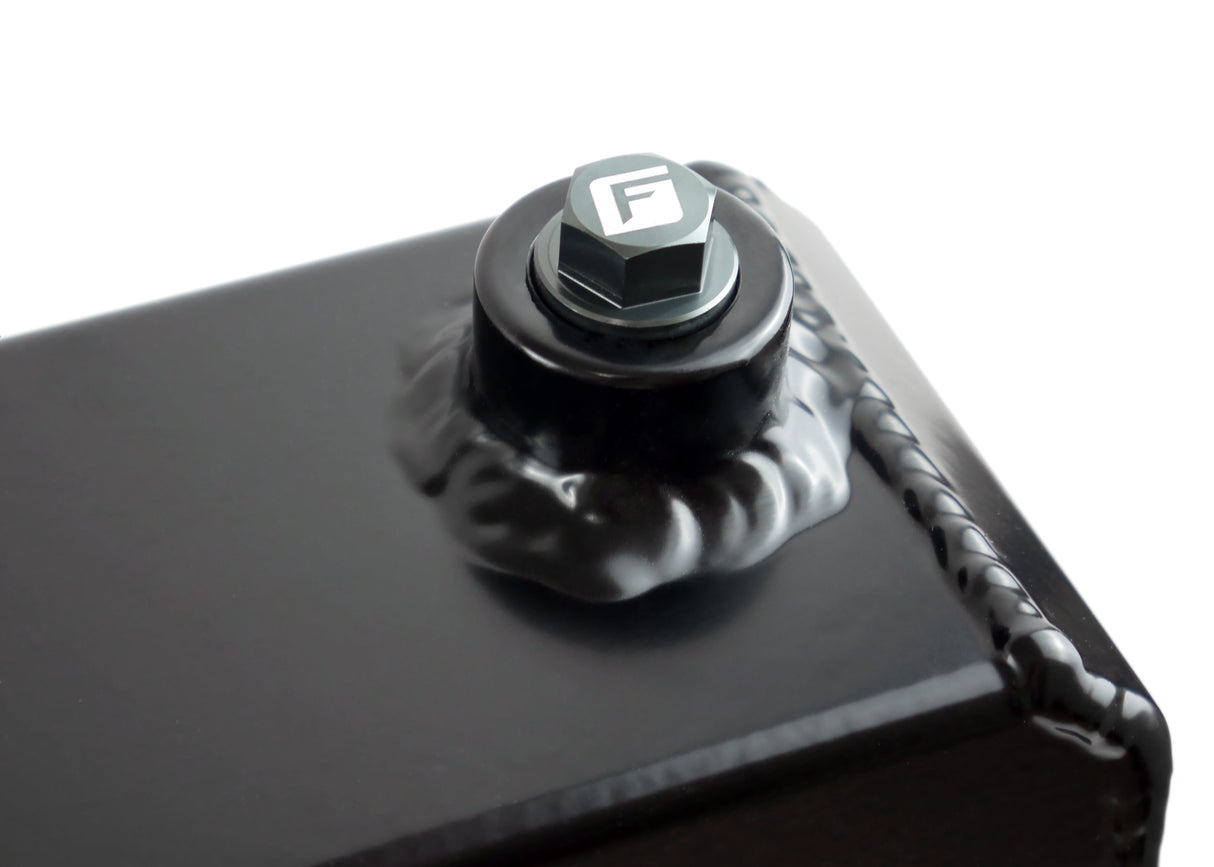

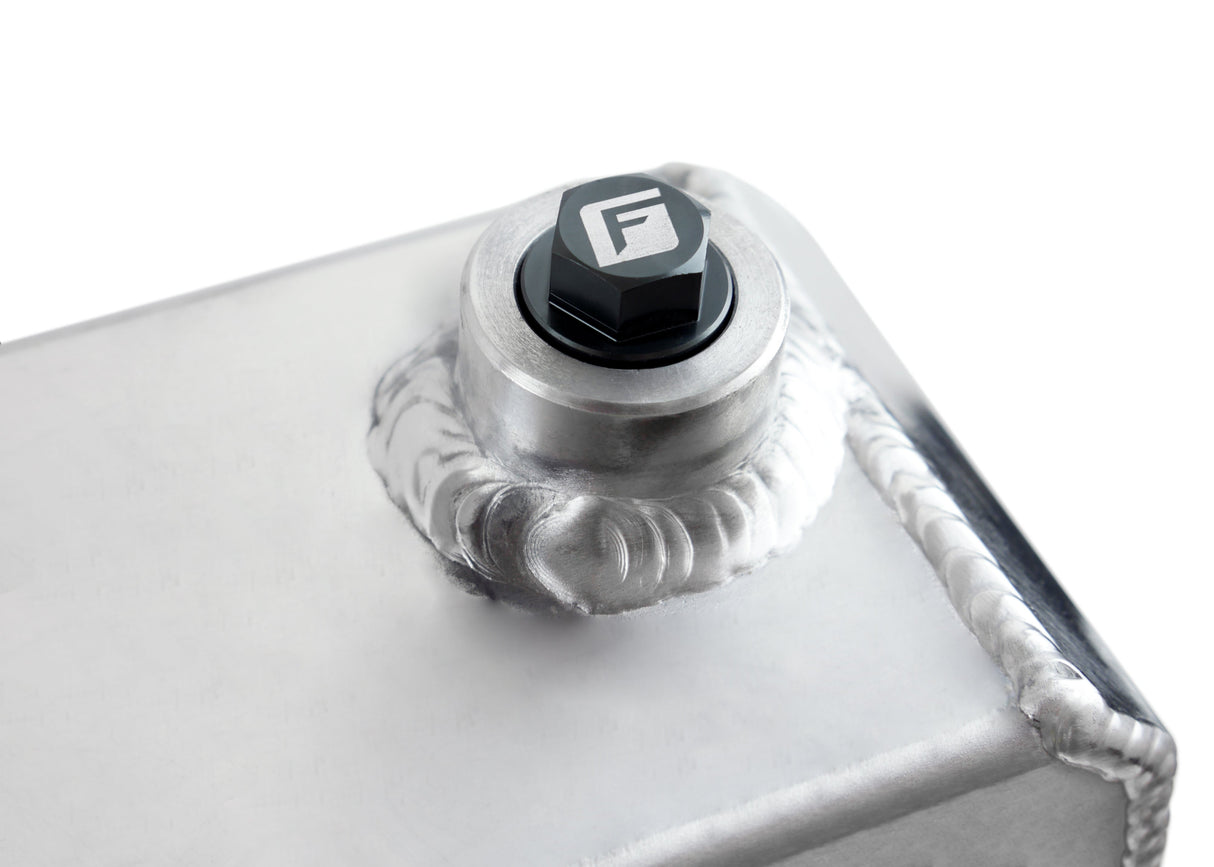

• V2 billet drainage bung.

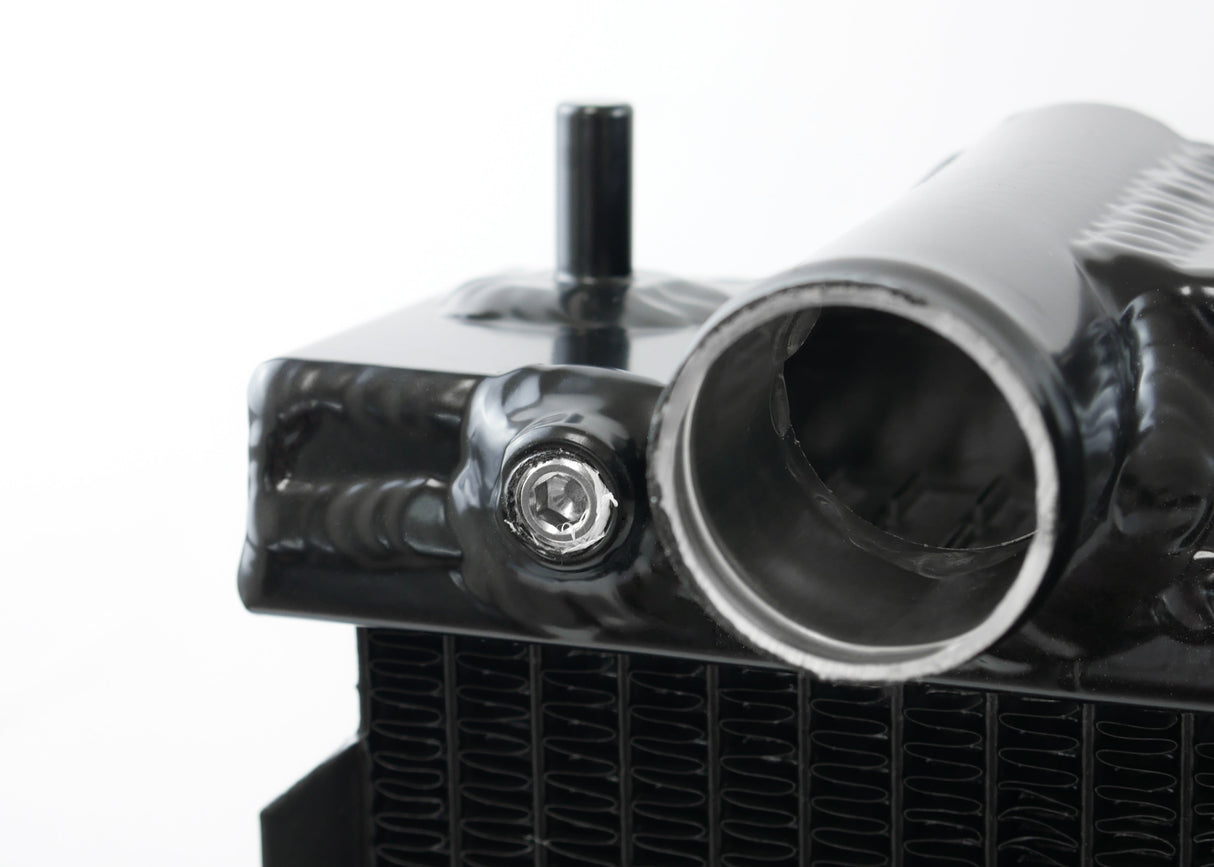

• Billet bleed valve. (Triple pass only)

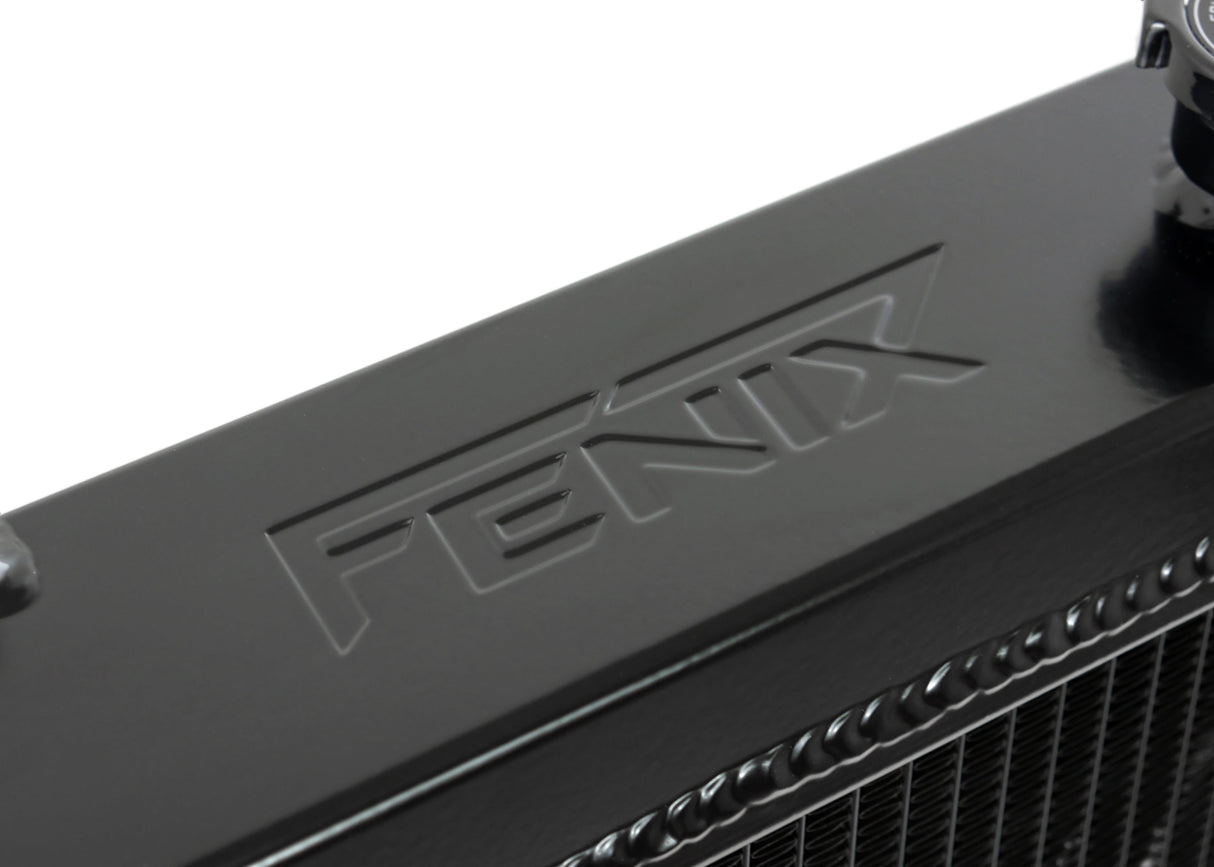

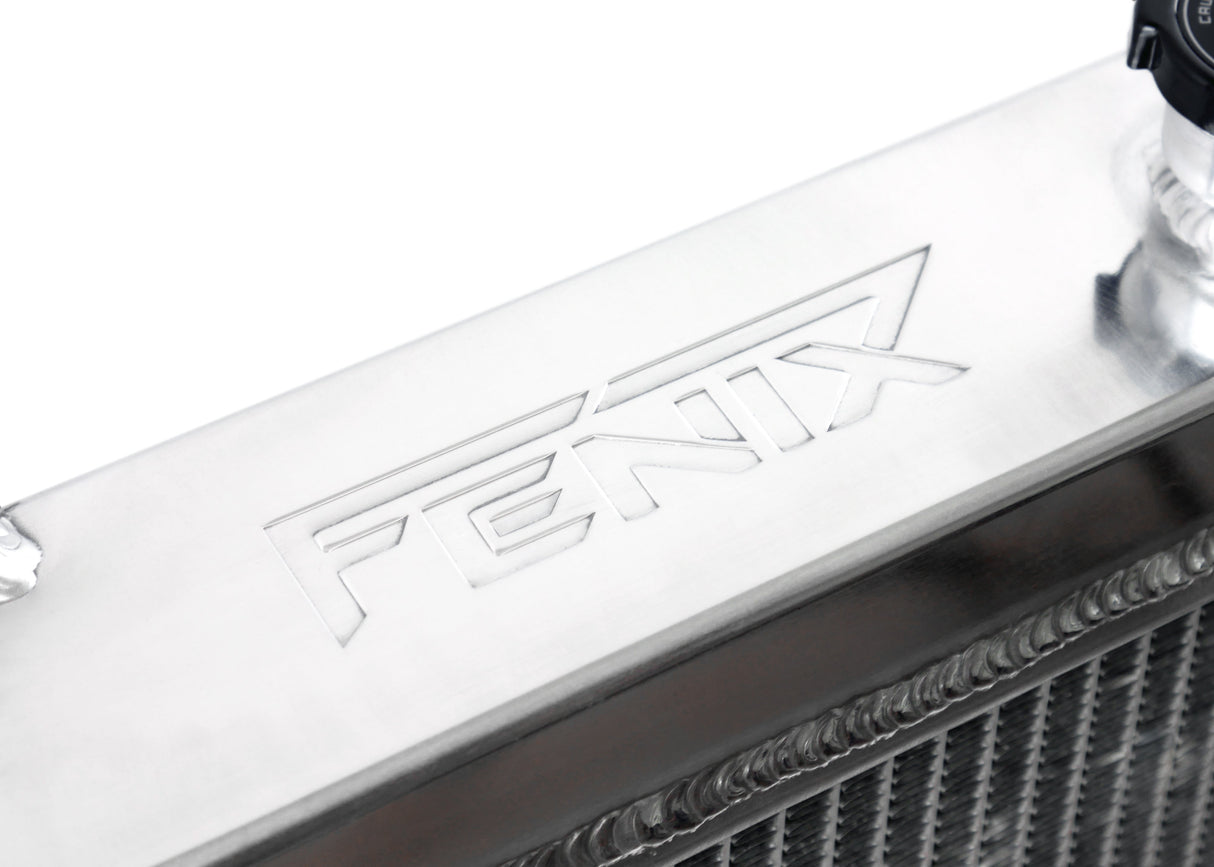

• Embossed Fenix logo on top tank.

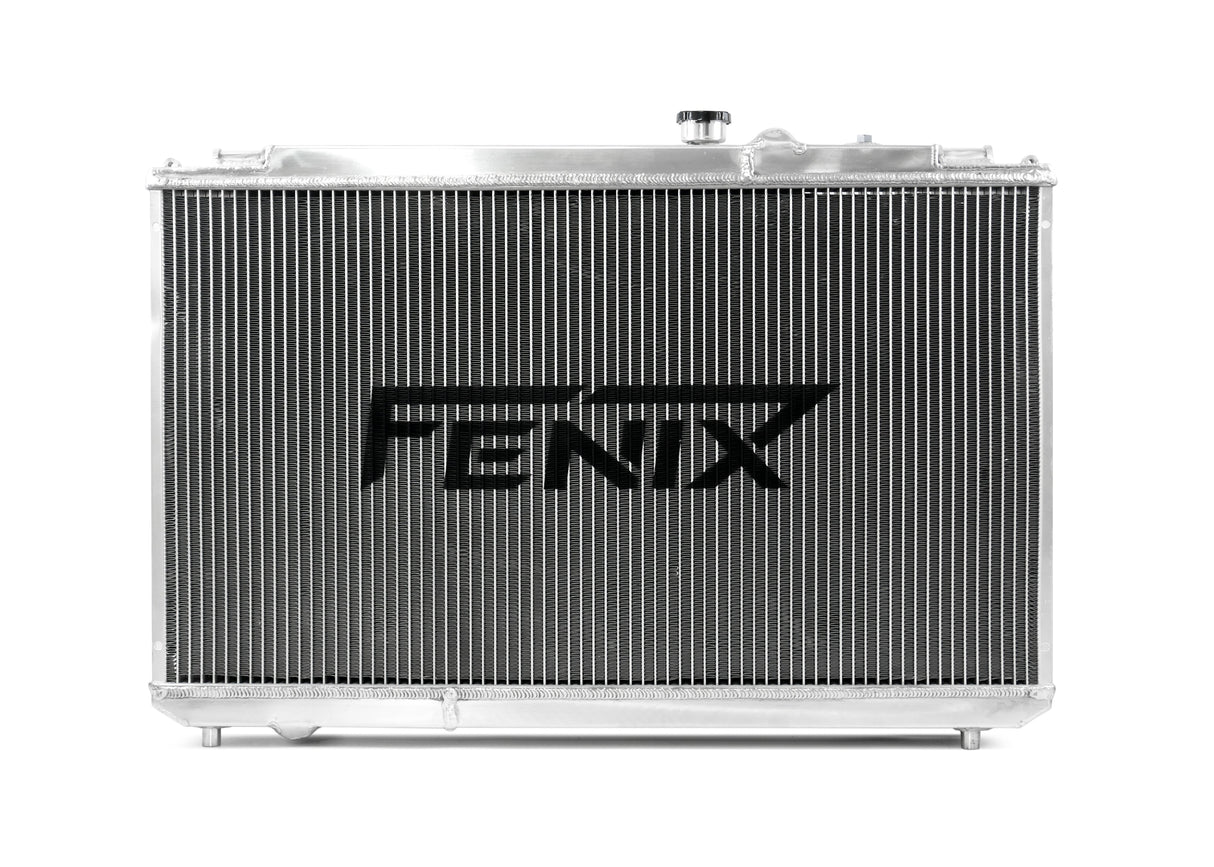

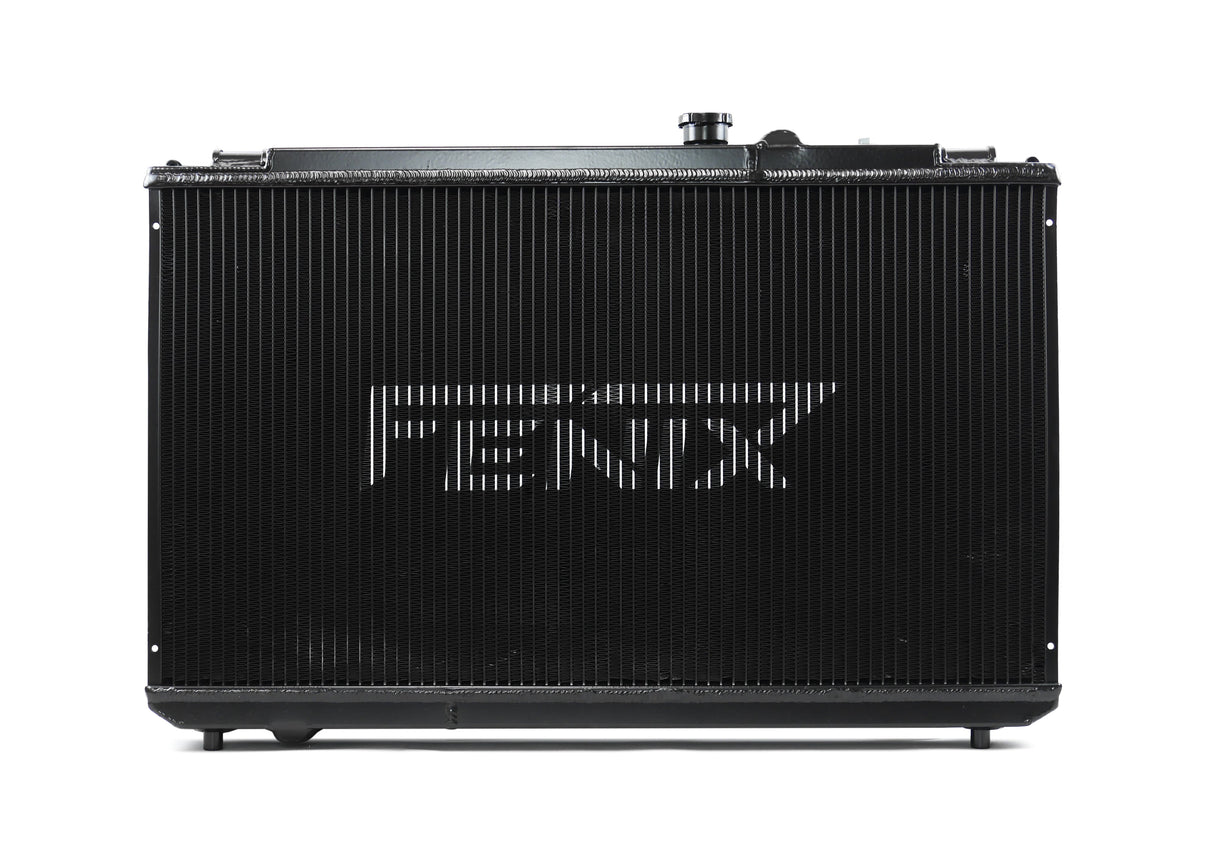

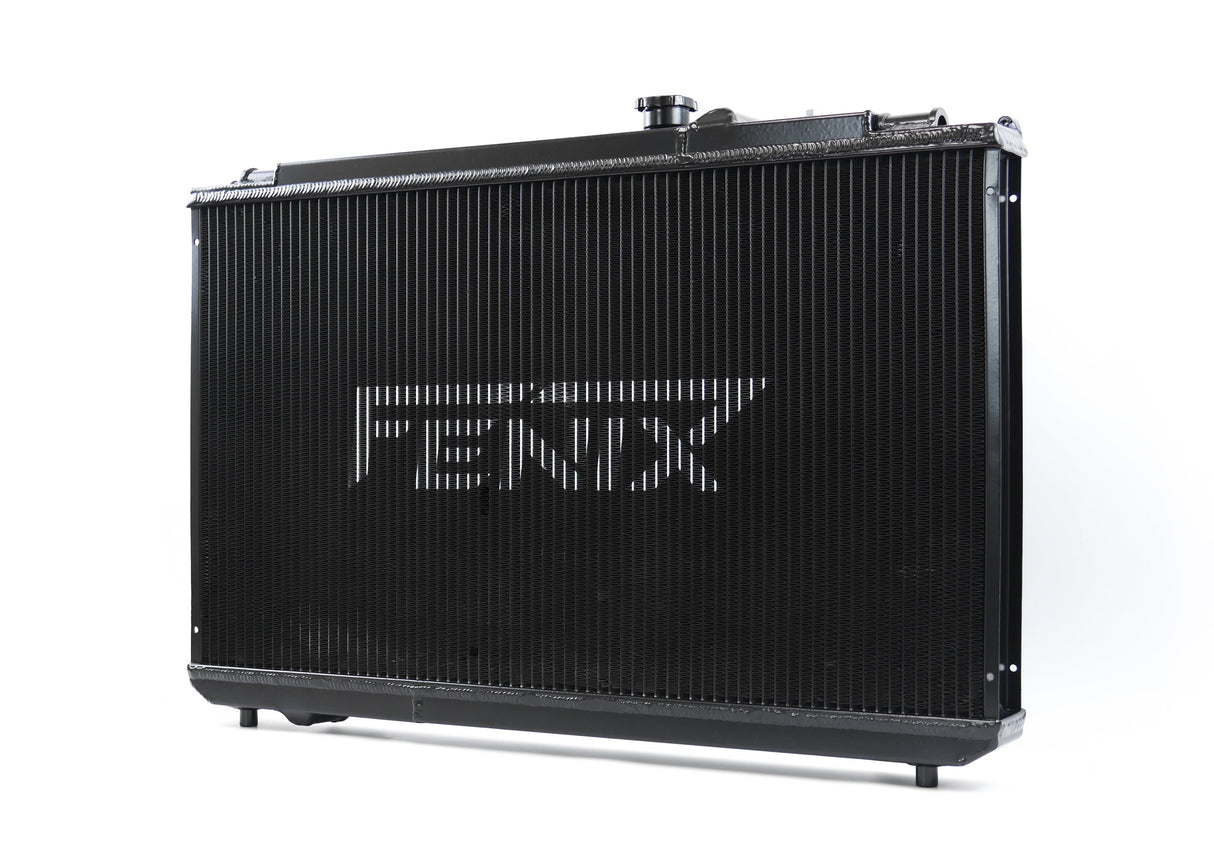

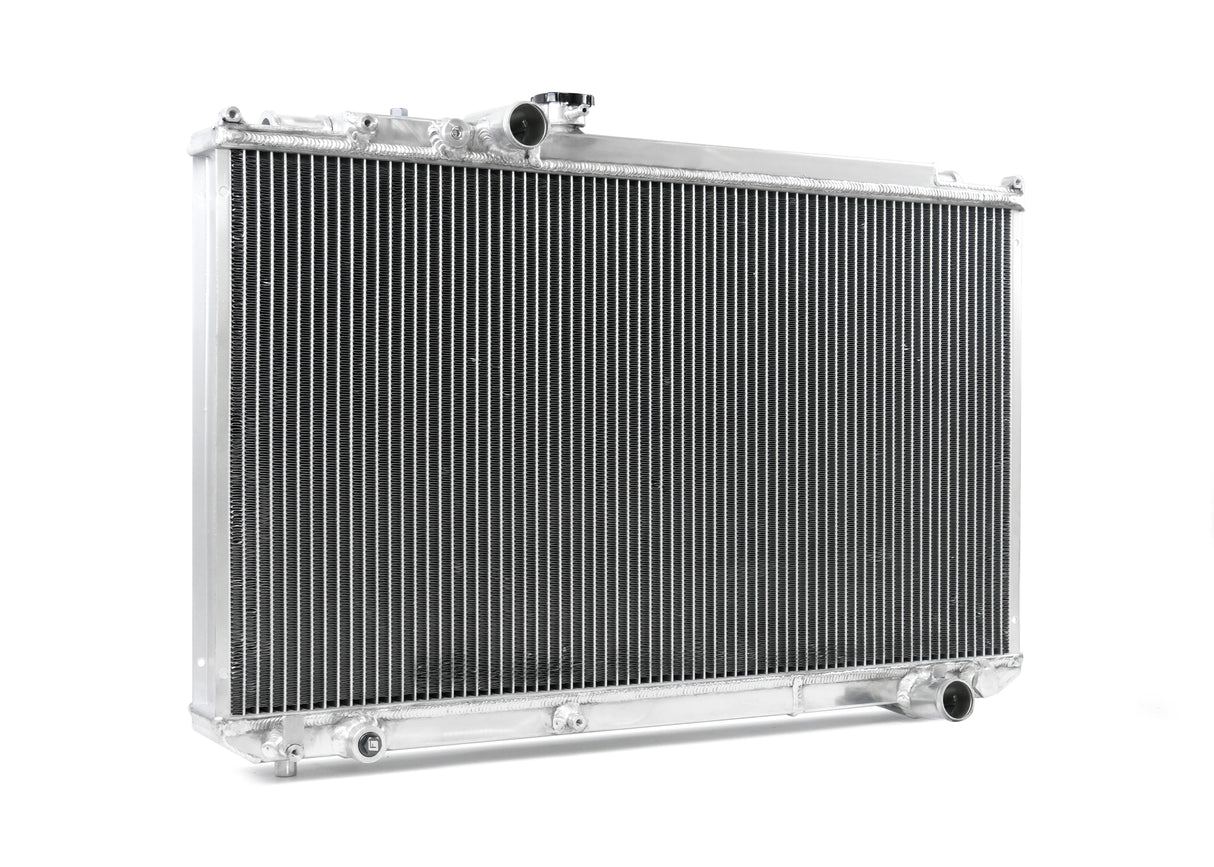

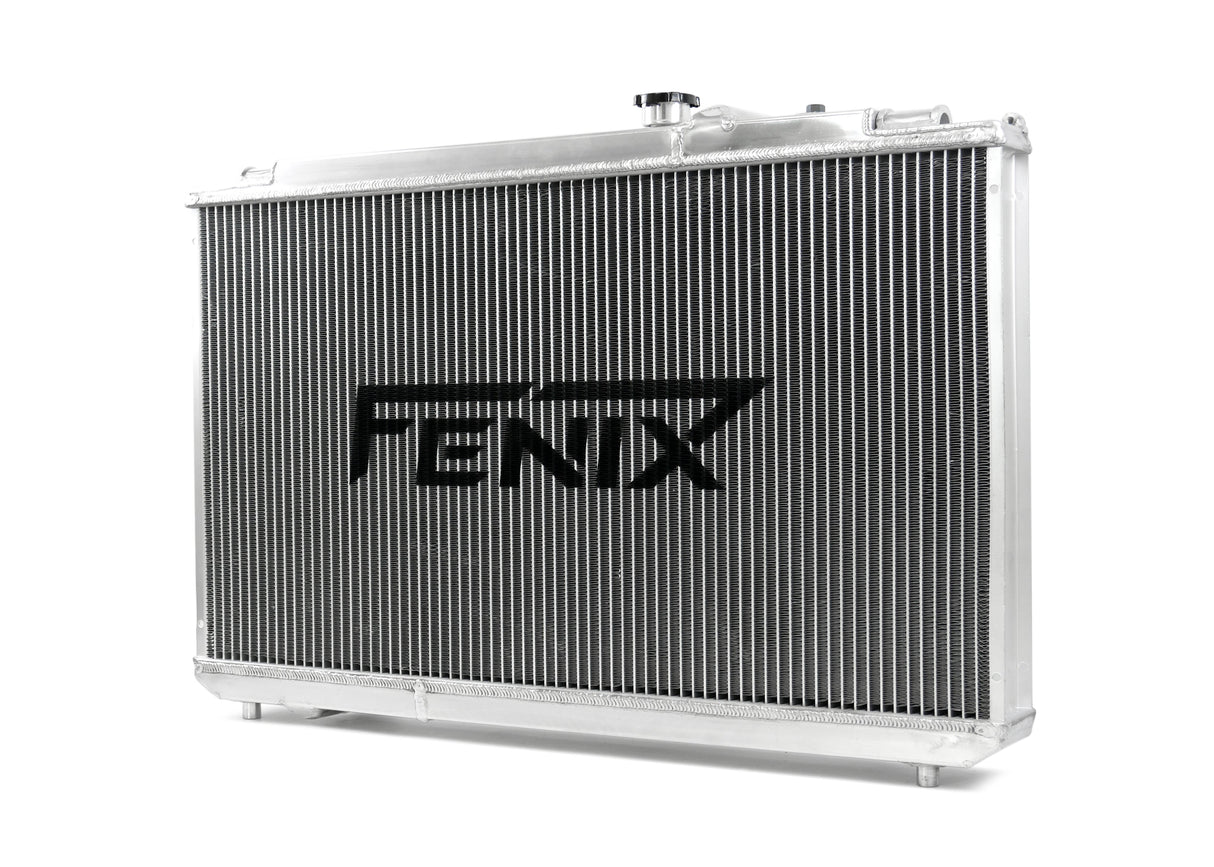

NOTE: Photographs depict triple pass unit with bleed valve. SPAL fan option may impact on OEM LHS airbag sensor for Series 2 (1998+). This sensor may need to be relocated at your own discretion.

Special Order options are made to order and can take up to 2 weeks to produce. Contact us prior to purchasing If your order is urgent.

_______________________________________________________________________

Upgrade your old, stock radiator with a Fenix Performance Toyota alloy radiator. Designed with performance and reliability in mind, we find the weak points of OEM radiators and eliminate them, while offering a factory fit and an increased cooling efficiency of up to 30%.

Partner your Fenix Performance Radiator with the optional Fan & Shroud for the ultimate cooling combo.

*Core size is tube and fin area only and does not include tanks or plate under tank.
