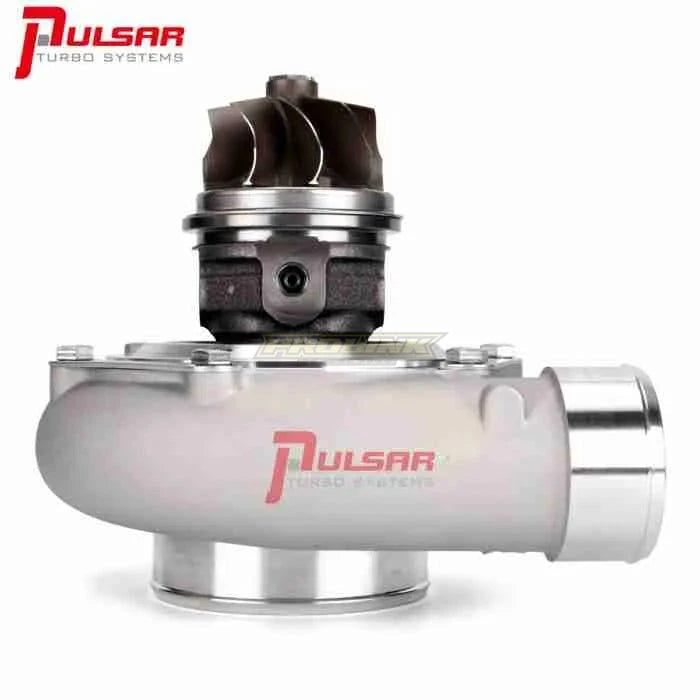

If you have a genuine PT35 exhaust housing and modified(or plan to modify) with an external gate for your XR6, this Super Core could be dropped-in directly. There is no modification needed.

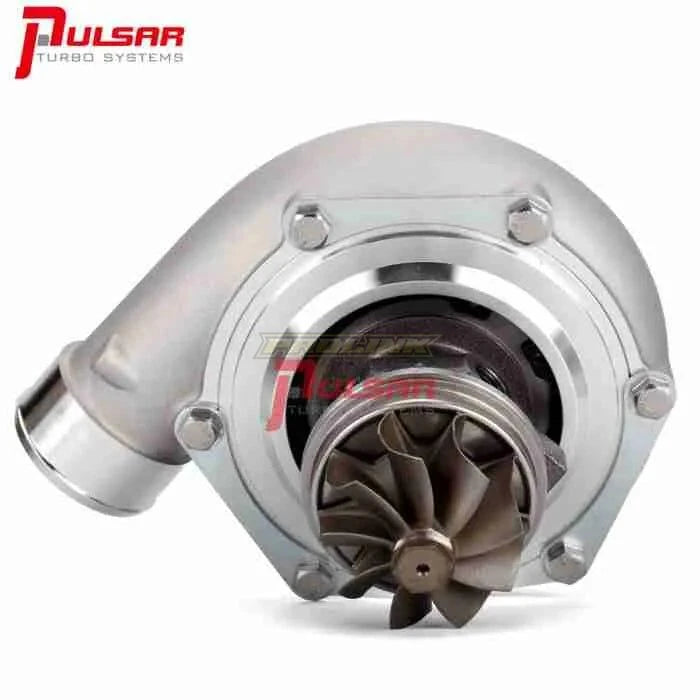

- Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
- Turbine Wheel: 68*62.3mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: T3 Open
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
Application:
Replacement for factory XR6 PT3582R PT3576R Turbos.
- 2002- BA FALCON XR6
- 2004- BF FALCON XR6
- 2008- FPV F6/TYPHOON/TORNADO
- 2006- TERRITORY
- 2008- FG FALCON XR6
- 2008- FG FALCON G6E
