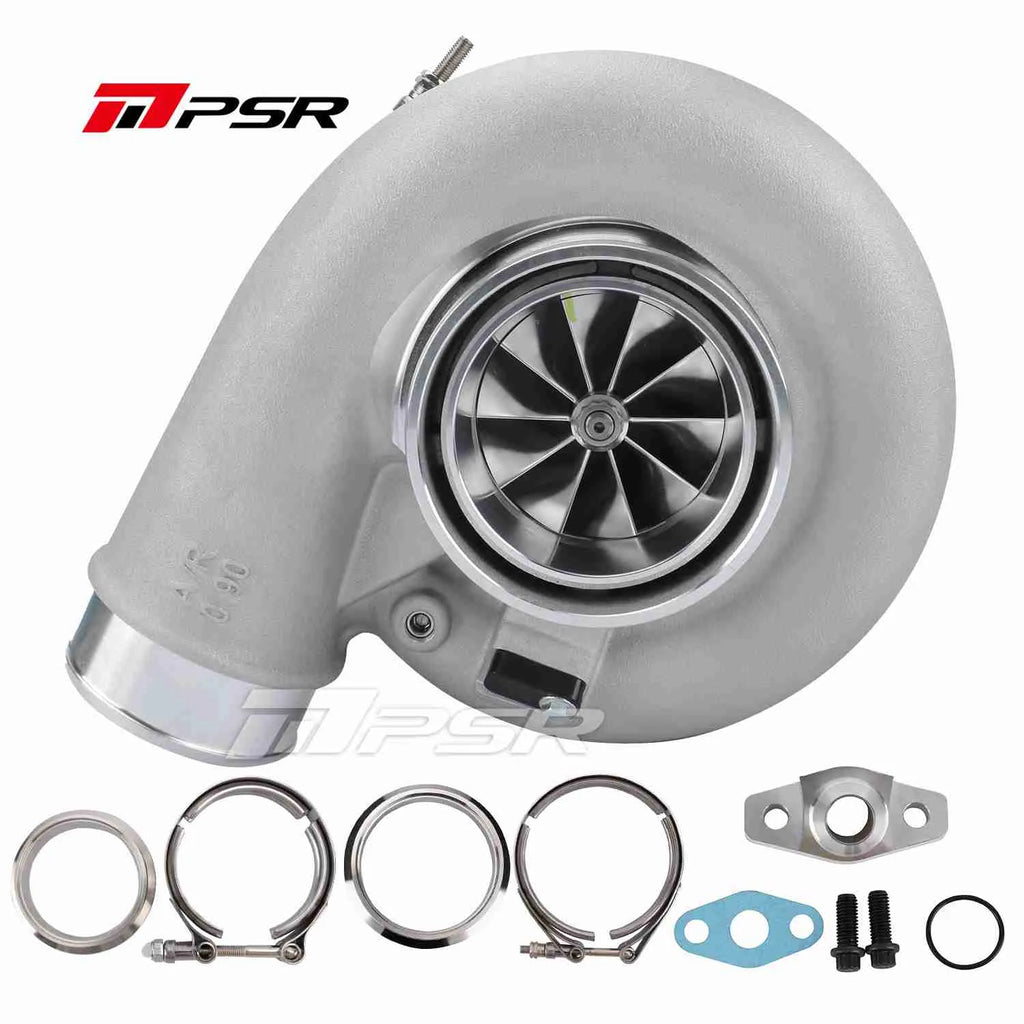

PULSAR 7375G PTG42 1200HP 73mm Compact Reverse Rotation Dual Ball Bearing Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• 2 Options in Turbine Housing
• Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separately
• Compressor Wheel: 73*91mm
• Turbine Wheel: 82*75mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 3″ hose
• Turbine Intlet: 3″ V-Band
• Turbine Outlet: 3.5″ V-Band
• Water Ports: -6AN
• Oil Feed: Flange Required
• Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

Turbine housing option:

1. Vband inlet (fit 3″ OD tubing) and Vband outlet (fit 3.5″ OD tubing), 1.01 A/R
2. Vband inlet (fit 3″ OD tubing) and Vband outlet (fit 3.5″ OD tubing), 1.15 A/R
