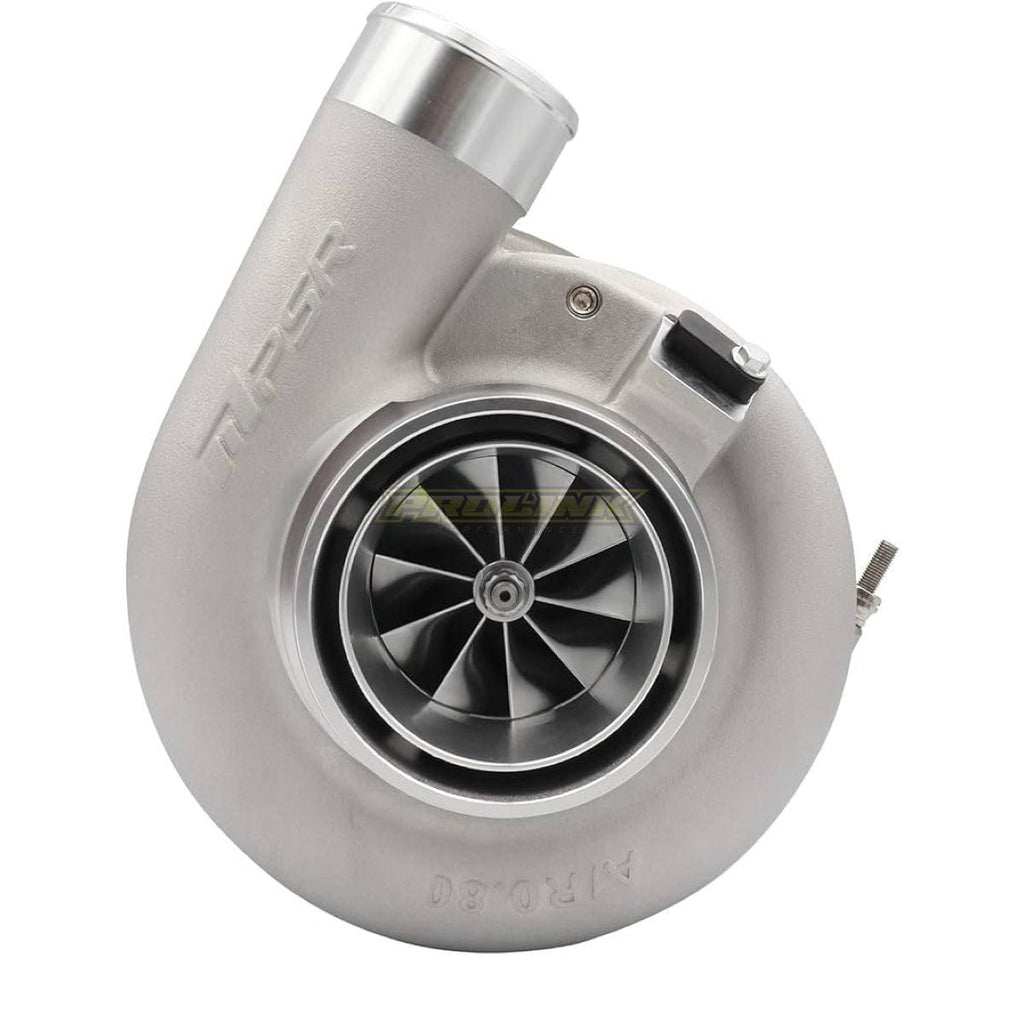

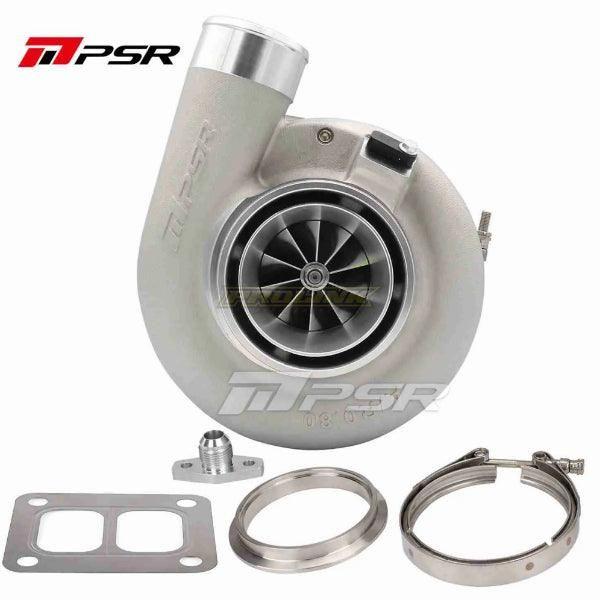

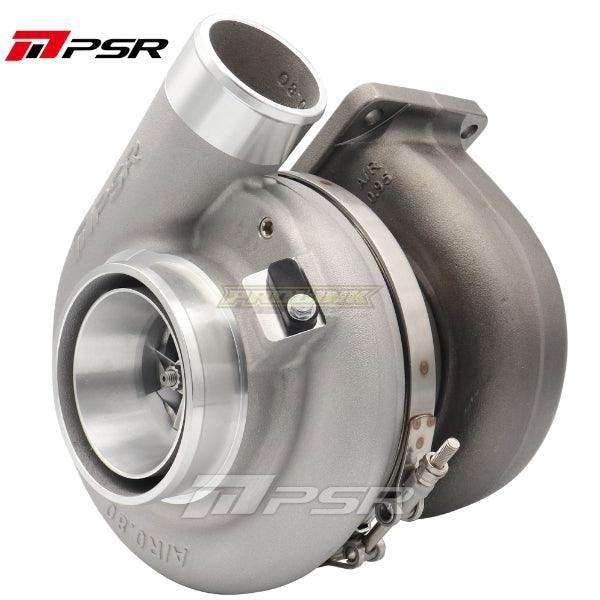

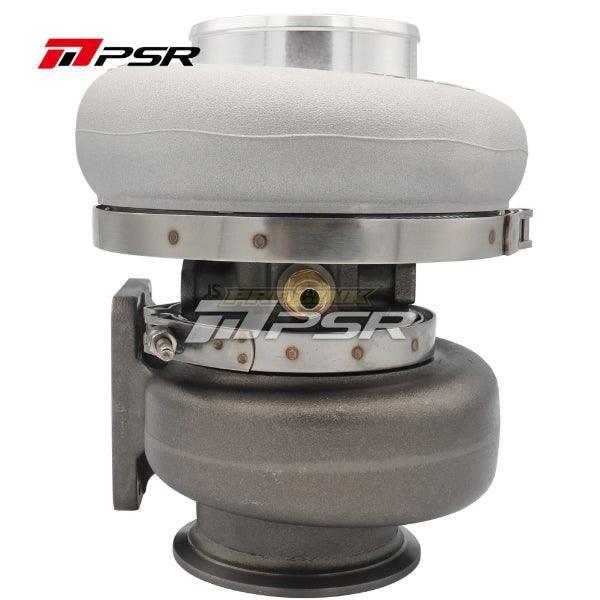

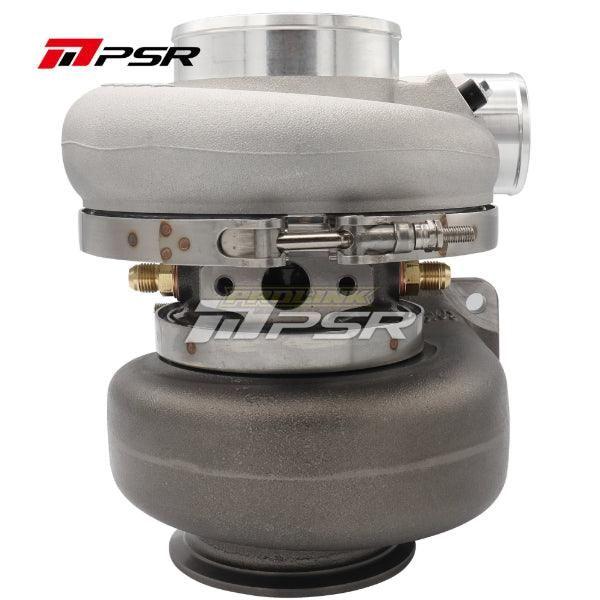

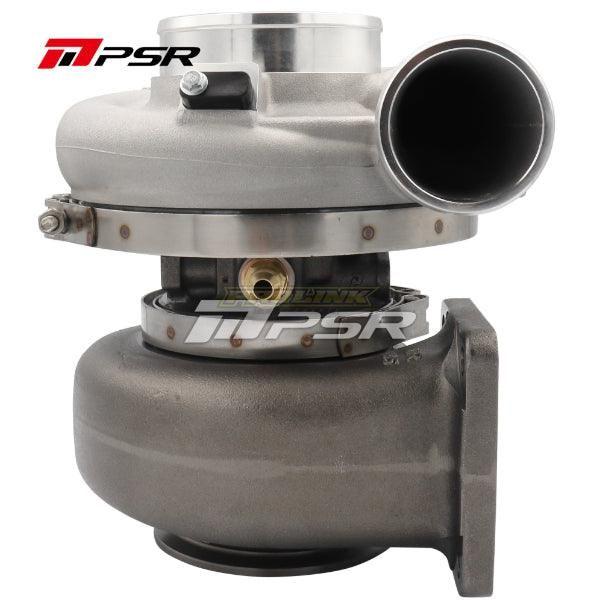

PULSAR 7170G PTG40 1150HP Dual Ball Bearing

Name: PULSAR 7170G PTG40 1150HP Dual Ball Bearing
Brand: Pulsar Turbochargers
Price: 1629.00 NZD
Availability: InStock

Compressor Housing: Standard

Turbine Housing: Without Turbine Housing

Variant

Price:

$1,629.00 NZD

Quantity:

Dual ceramic ball bearing with steel cage provides optimal turbo response &
better durability by reducing the shaft-motion
71mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

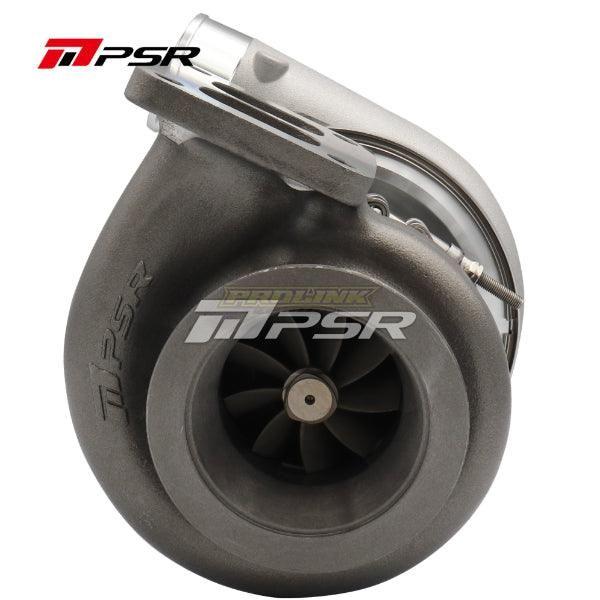

9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
Water fittings included with the super core
3 Options in Turbine Housing
Suitable engine size: 2.0-6.0L
Compressor Wheel: 71*88mm
Turbine Wheel: 77*70mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2.5″ Hose

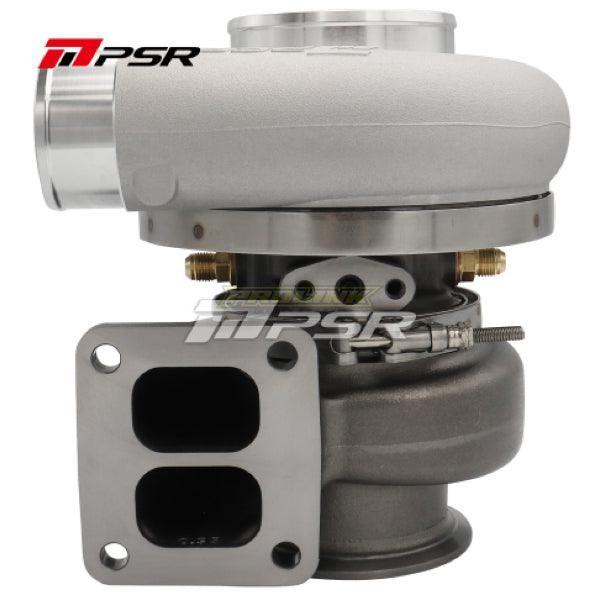

Turbine Inlet: V-band or T4 divided
Turbine Outlet: 3.5”or 4″ V-band (see details after housing selection)
Water Ports: -6AN
Oil Feed(excl’): Flange Required(Recommended size: -4AN Std T4 Flange )
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
T4(Divided) 0.95 A/R, 1.06 A/R, Dual V-band 1.06A/R
