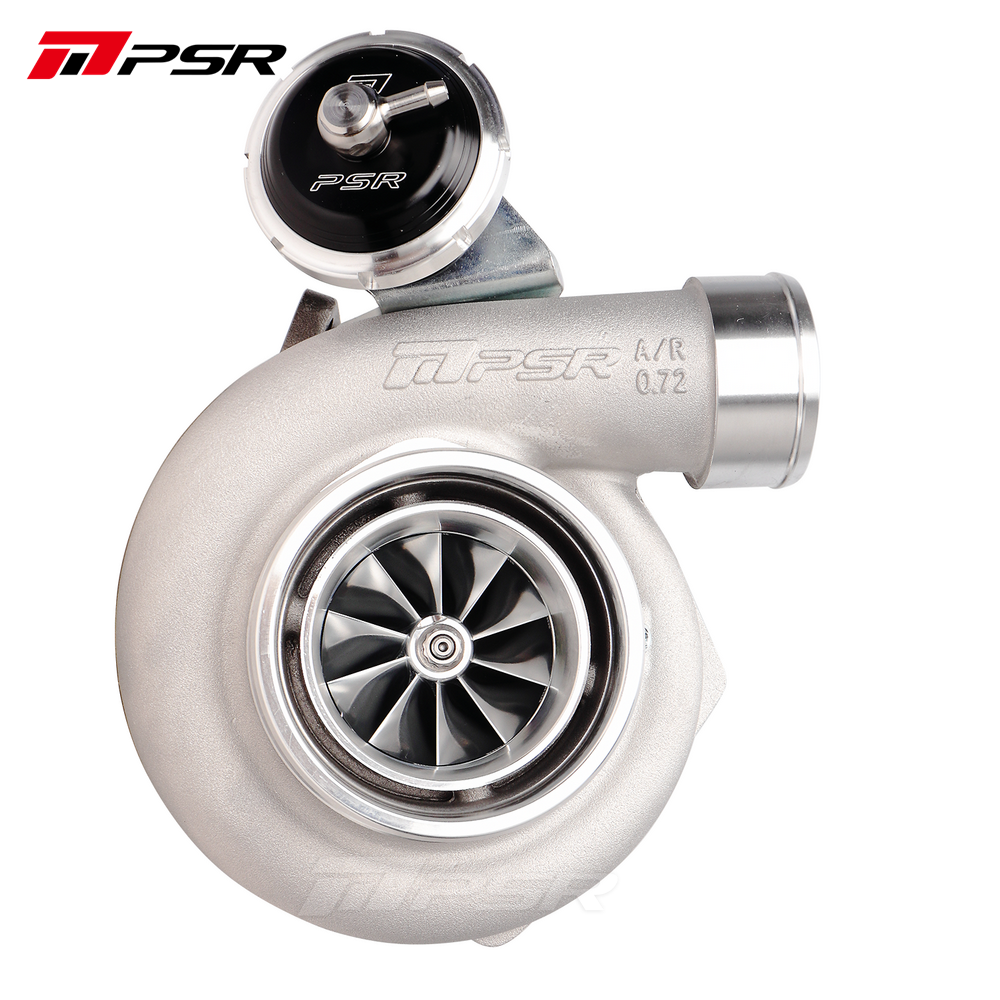

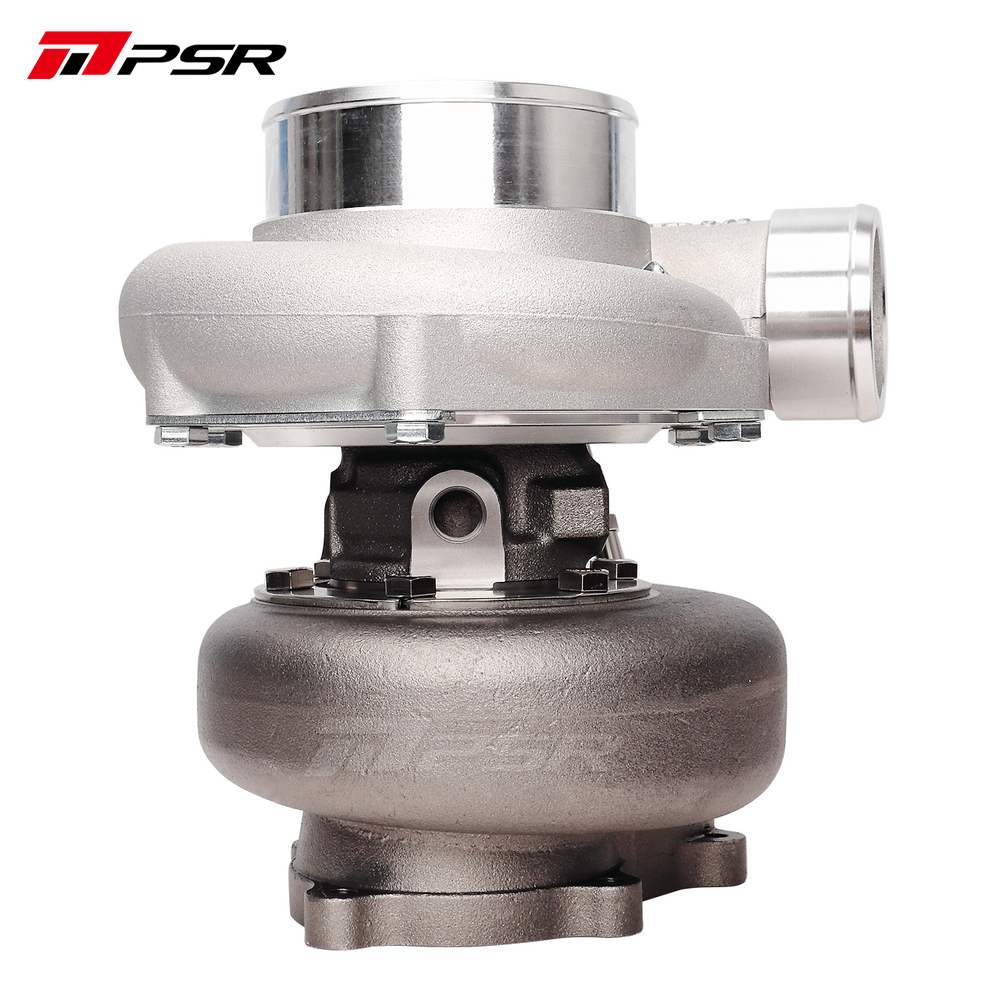

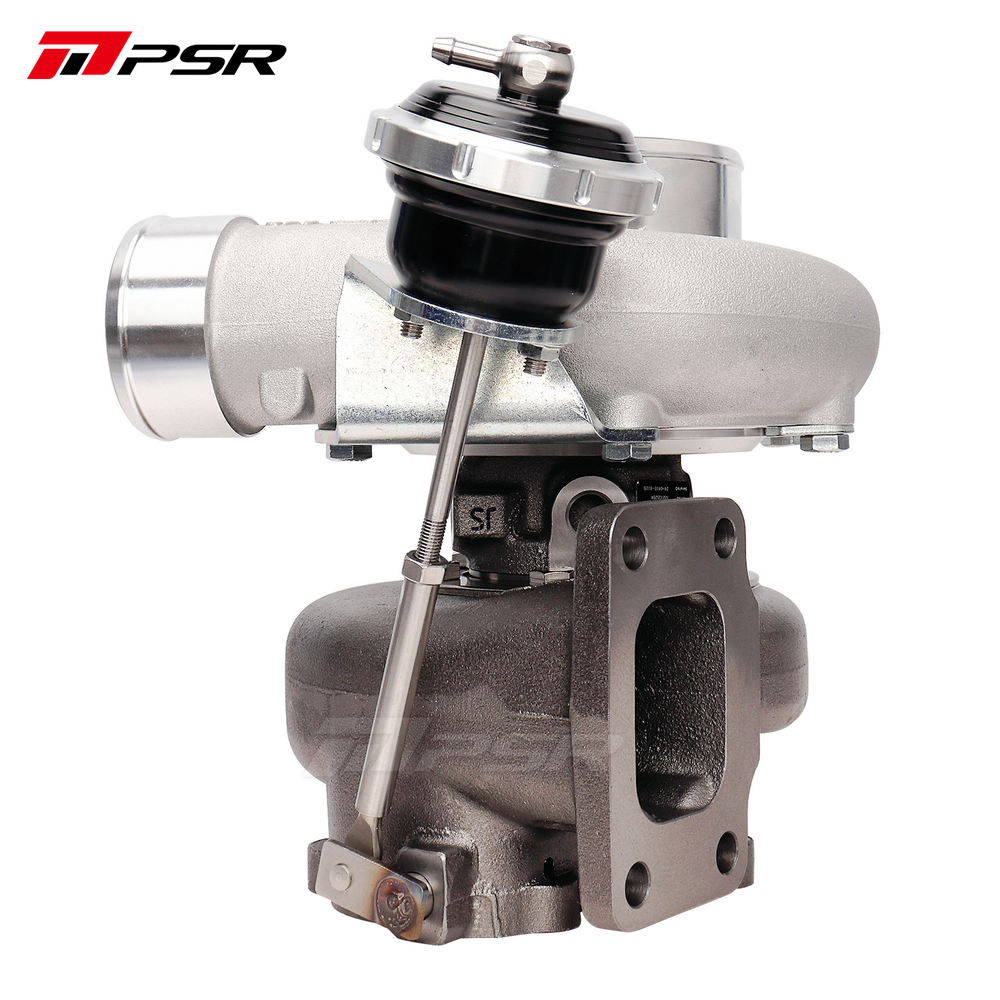

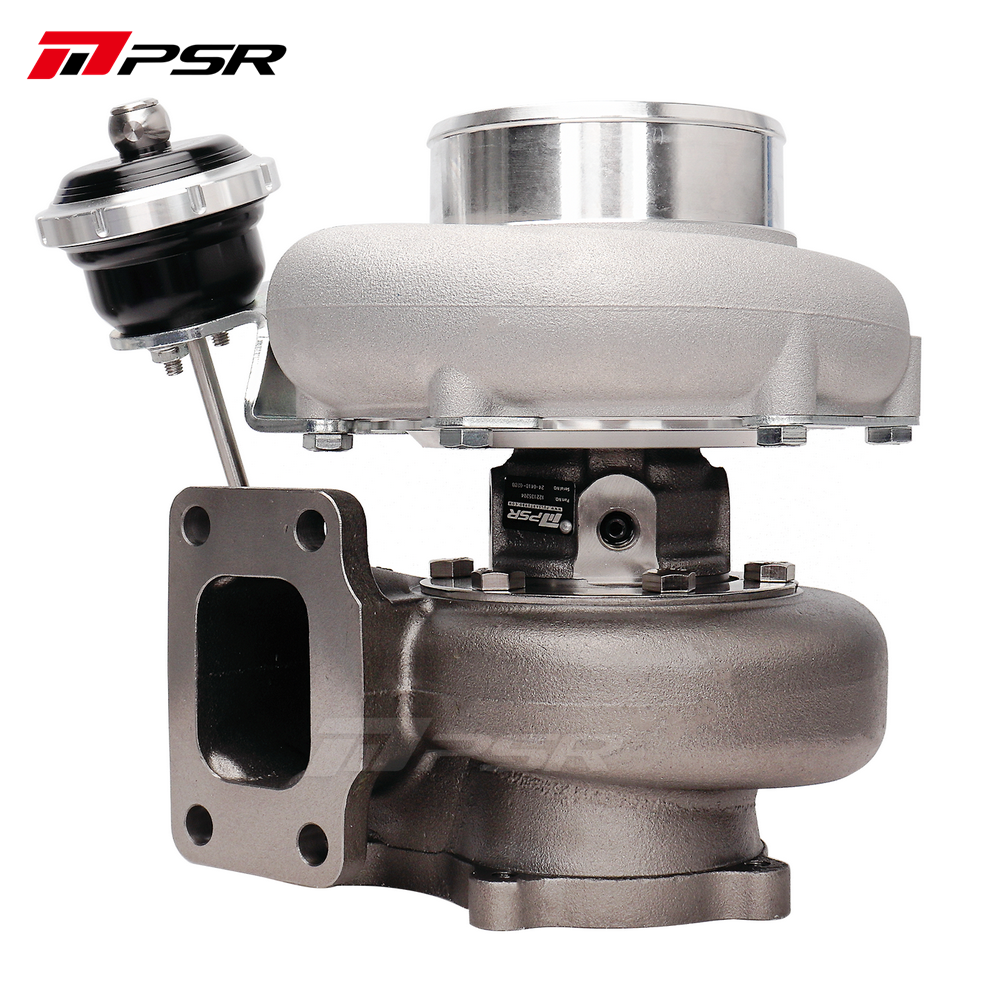

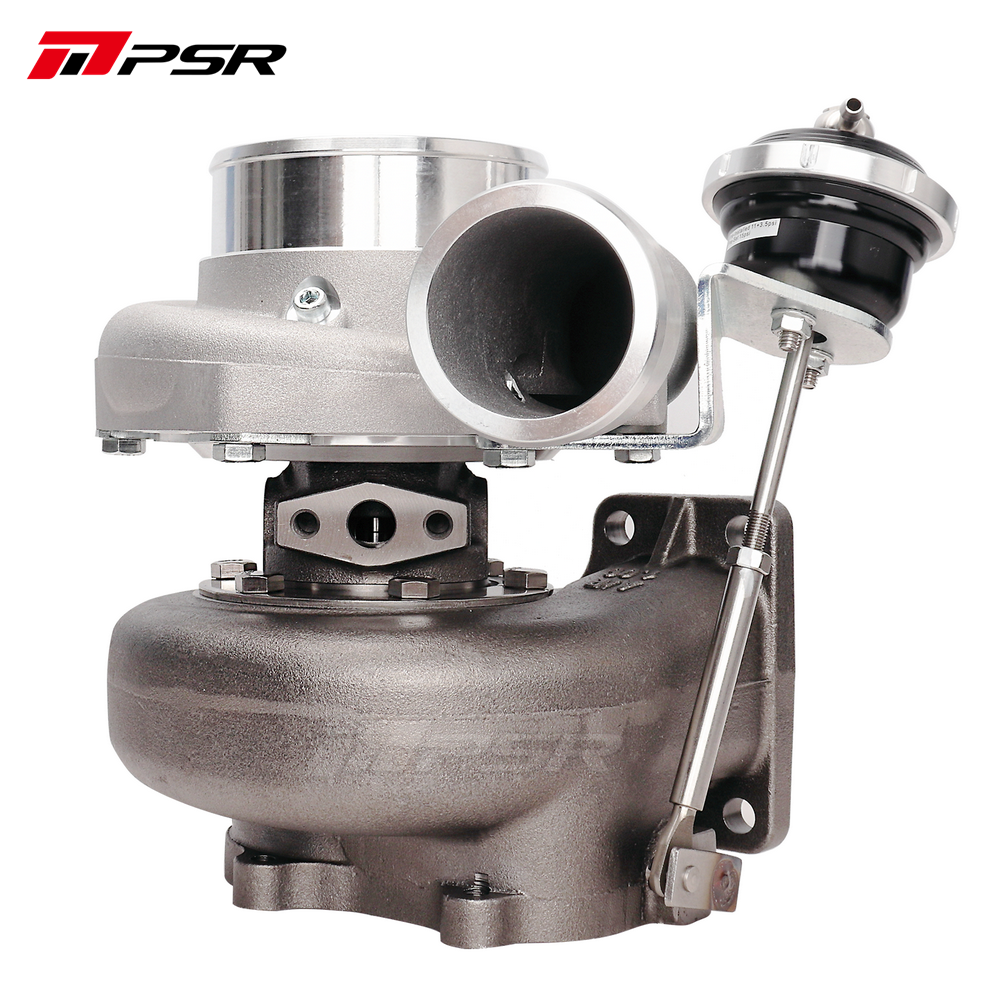

PSR3584 Gen3 Dual Ball Bearing Turbocharger for Ford Falcon XR6

Name: PSR3584 Gen3 Dual Ball Bearing Turbocharger for Ford Falcon XR6
Brand: Pulsar Turbo Systems New Zealand
Price: 1557.14 NZD
Availability: InStock

$1,557.14 ~~$1,831.93~~

Tax included Shipping calculated at checkout.

Turbine Housing Options

Compressor Housing Options

Actuator Working Pressure

Product variants

Description

New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
Larger Turbine Wheel for higher flowability
Genuine structure and rebuildable dual ceramic ball bearing system
Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
Billet actuator with black anodized coating
3 Layer Stainless Steel 5 Bolt Gasket

Description:

Compressor Wheel: 67.3*84.4mm (extended tip diameter: 87.3mm)
Larger Turbine Wheel for Higher Horsepower: 74*66mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2.5″ Hose
Turbine Inlet: T3 Open
Turbine Outlet: 5 Bolt
Turbine housing internal wastegate hole: 33mm
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
Actuator working pressure: 15psi/10psi/5psi

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

2002- BA FALCON XR6
2004- BF FALCON XR6
2008- FPV F6/TYPHOON/TORNADO
2006- TERRITORY
2008- FG FALCON XR6
2008- FG FALCON G6E
