Pulsar Turbo Systems New Zealand

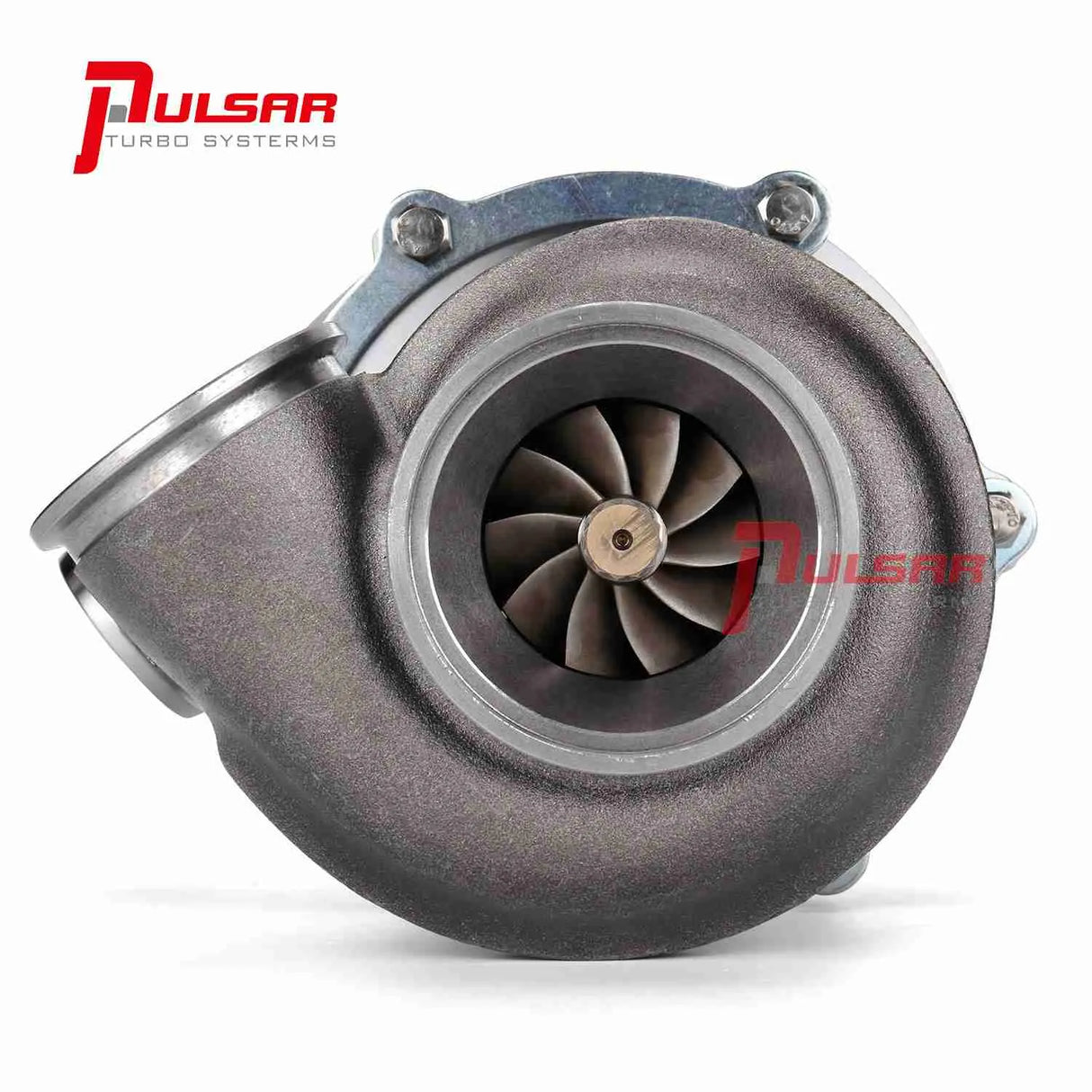

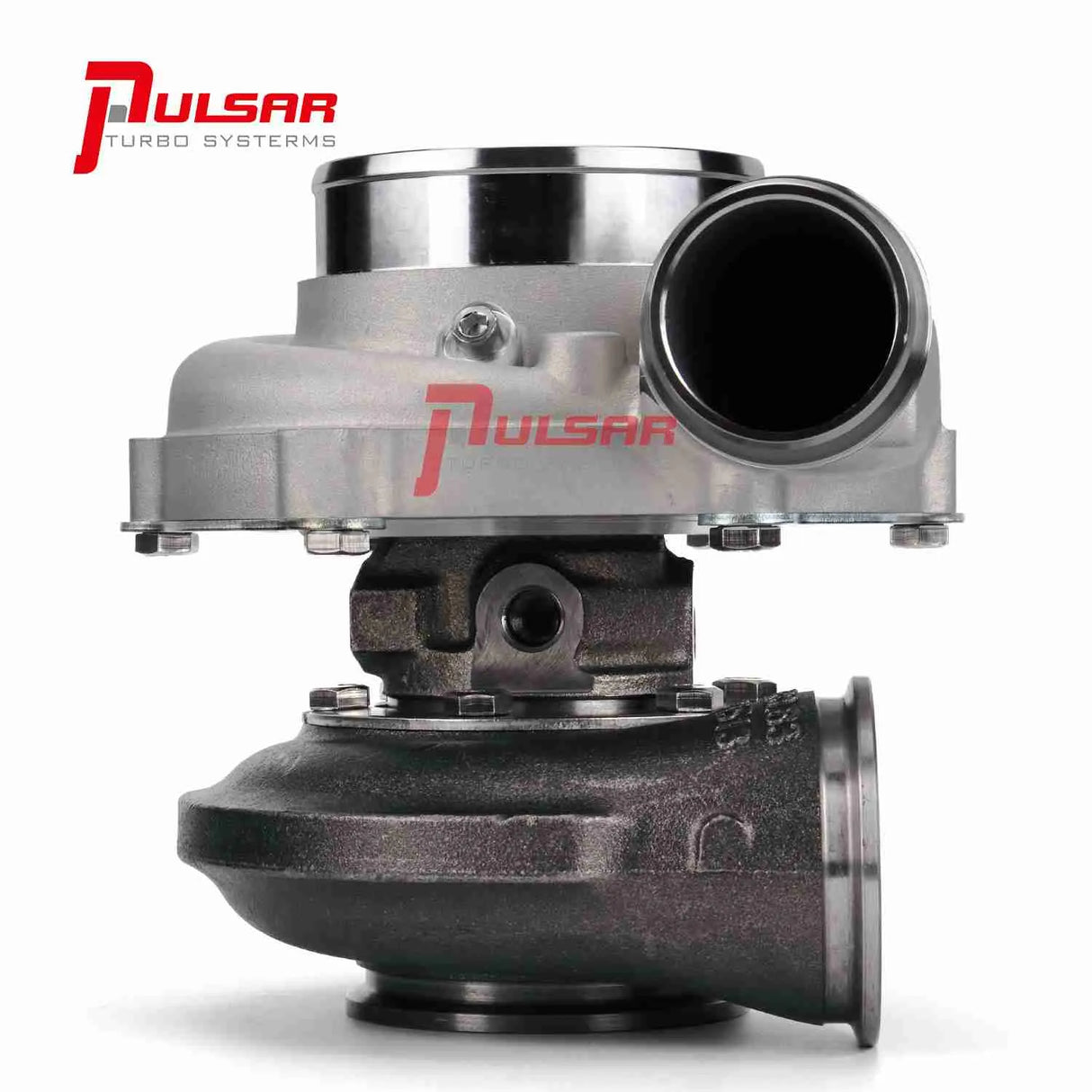

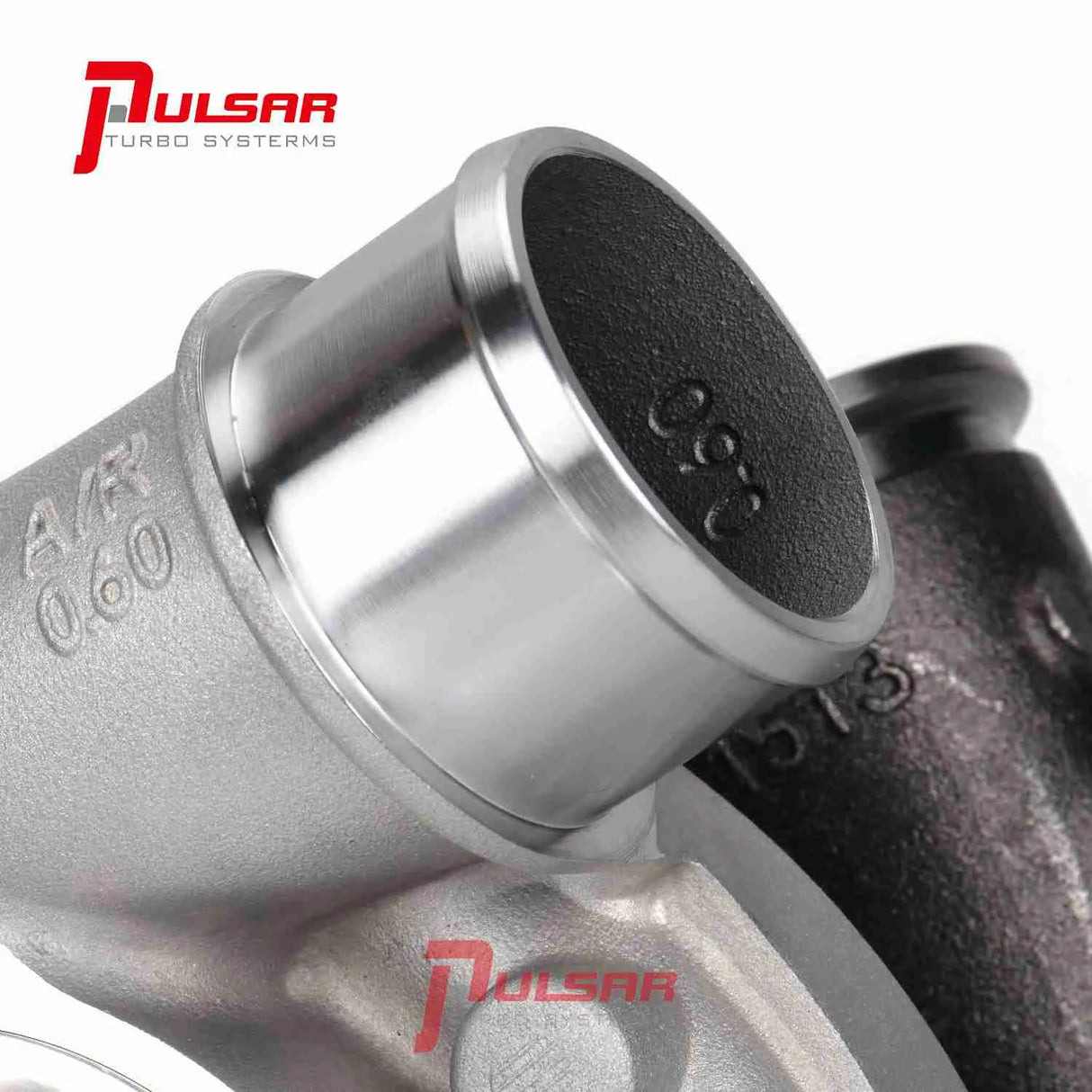

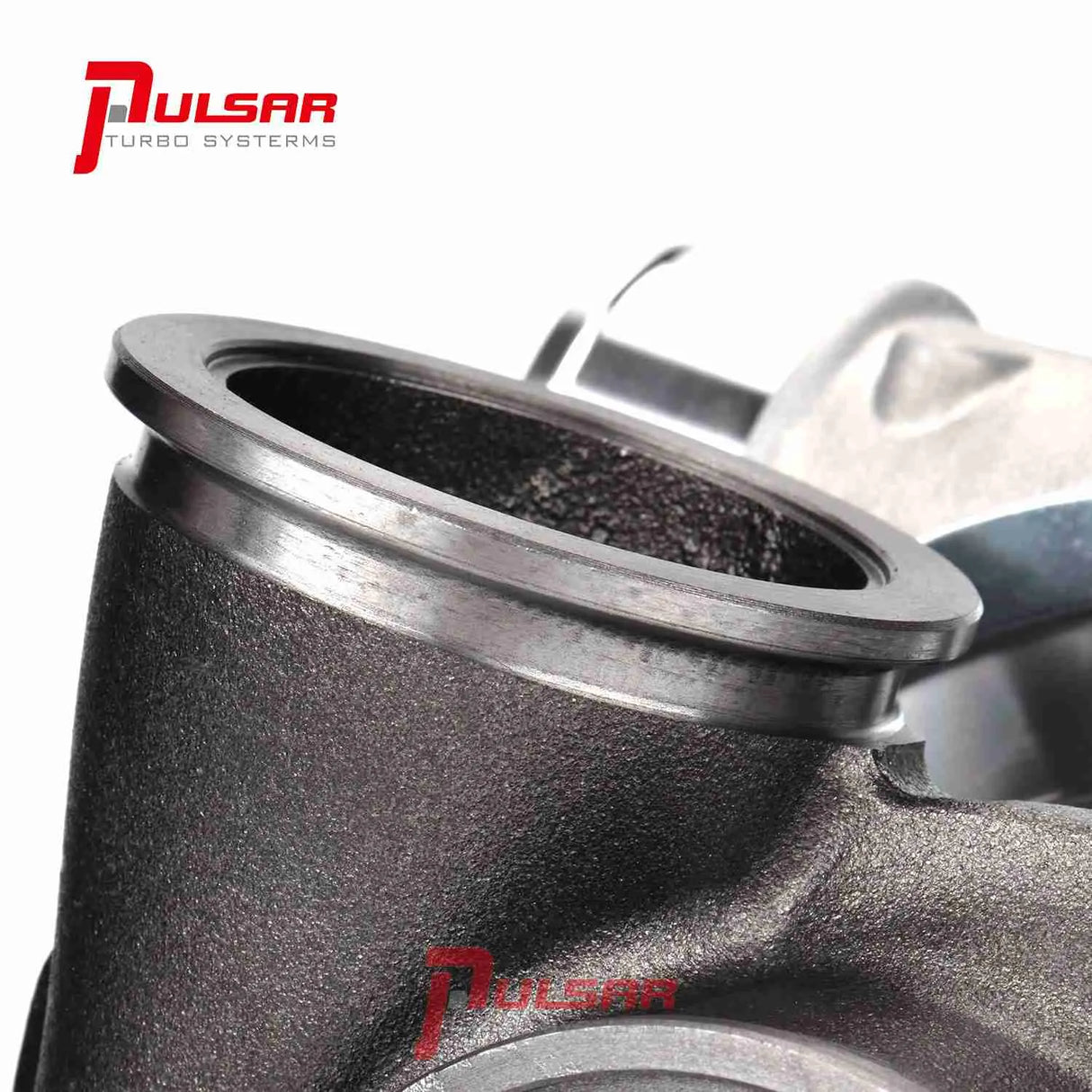

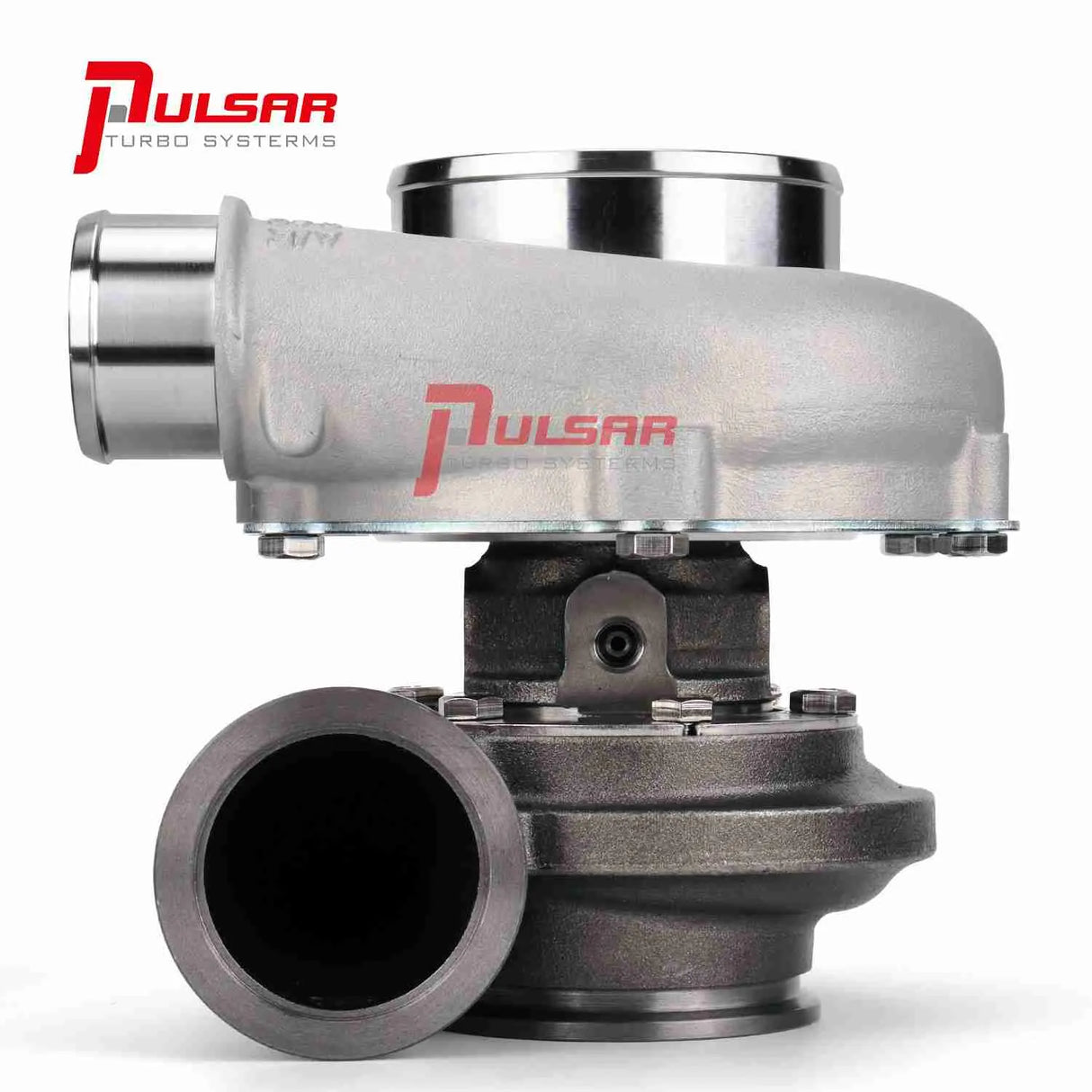

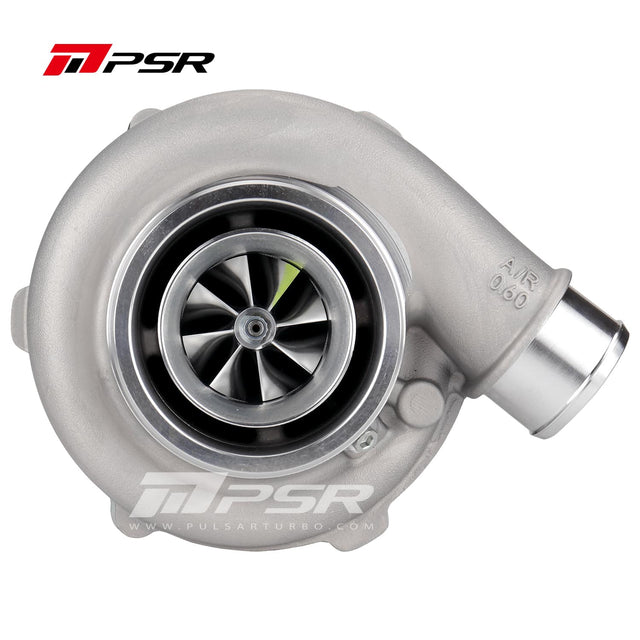

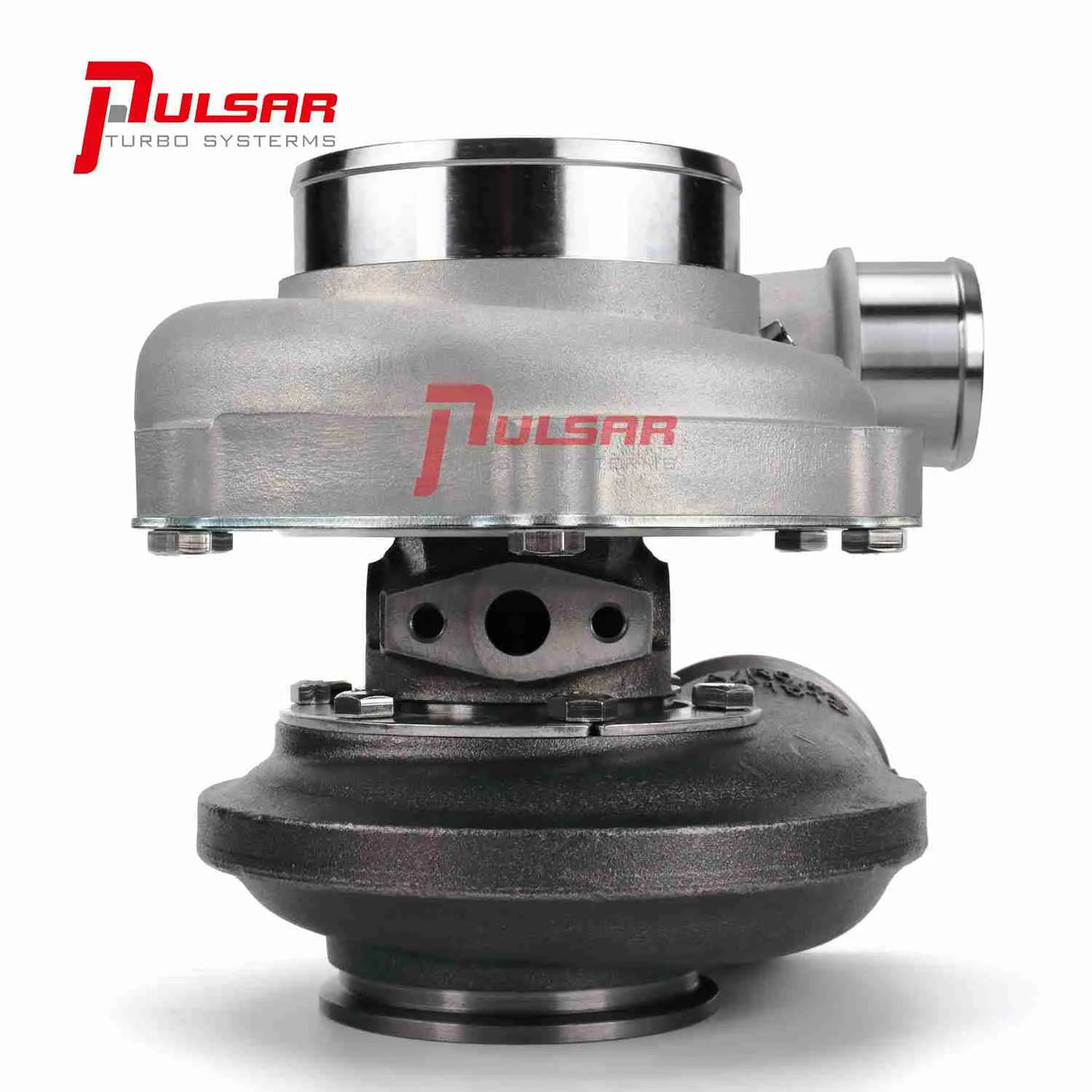

PSR3071 Gen2 Dual Ball Bearing Turbocharger

$1,193.80 $1,404.47
Tax included Shipping calculated at checkout.

Description
  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel

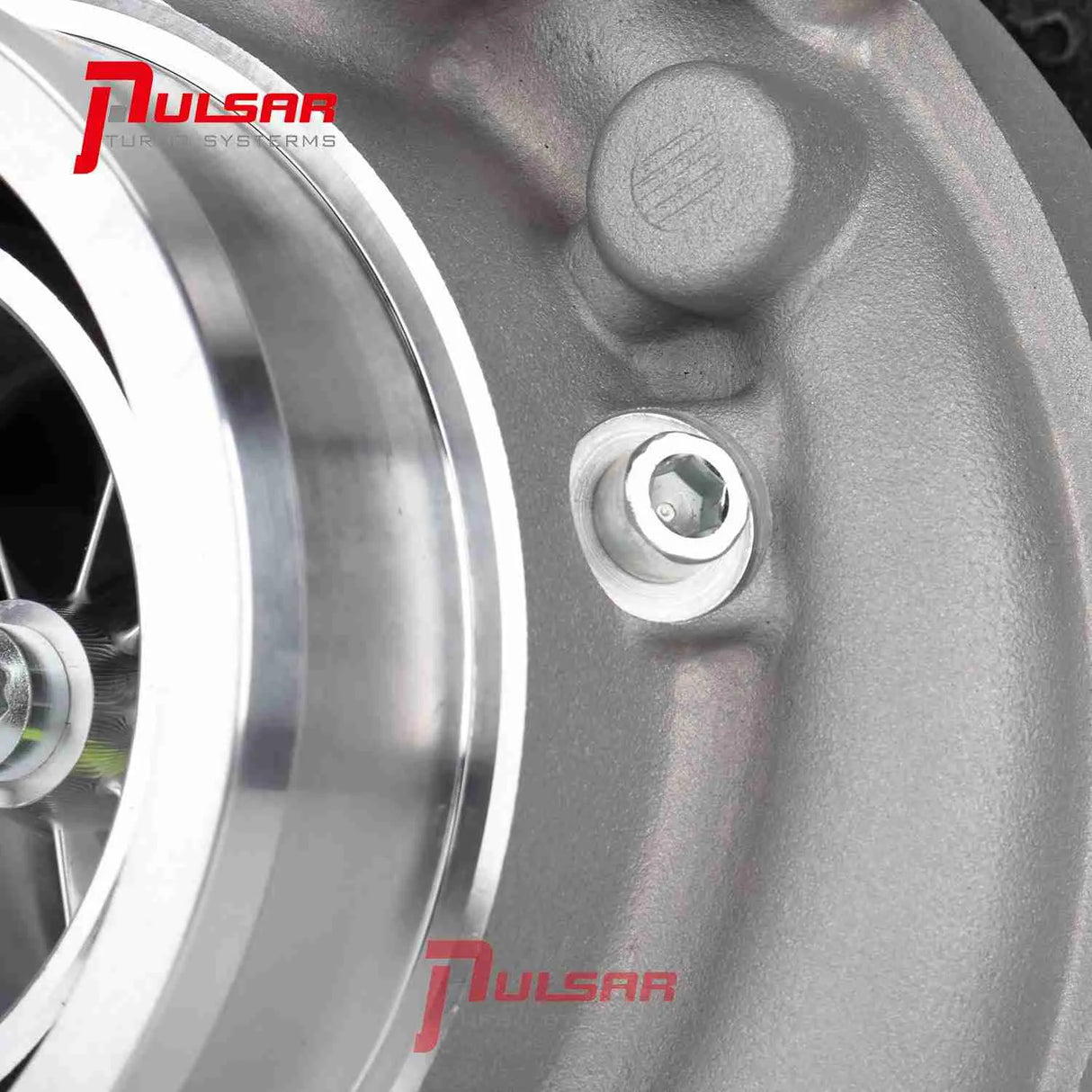

  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

Description:

  • Compressor Wheel: 54*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″ OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

LOOKING FOR A SPECIFIC PART?

Share announcements and information with your customers and welcome them to your store.

Enquire Now!
Pulsar Turbo Systems New Zealand

PSR3071 Gen2 Dual Ball Bearing Turbocharger

From $865.07 $1,017.73
  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Gen2 Cover Integrated with the Speed Sensor Port
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

Description:

  • Compressor Wheel: 54*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″ OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Compressor Housing Options

  • Standard
  • T51R MOD
  • W/O Compressor Housing

Turbine Housing Options

  • 0.64A/R T25 Inlet 5 bolt Outlet IWG
  • 0.86A/R T25 Inlet 5 bolt Outlet IWG
  • T3 .63 V-Band
  • T3 .82 V-Band
  • 1.06A/R T3
  • T4 Divided 0.85A/R
  • 0.83A/R Dual V-Band
  • .83 Dual V-Band + T4 Adapter
  • 1.01 Dual V-Band
  • 1.01 Dual V-Band + T4 Adapter
  • .82 Stainless Steel Dual V-Band
  • .82 Stainless Steel Dual V-Band + T25 Adapter
  • .82 Stainless Steel Dual V-Band + T3 Adapter
  • .82 Stainless Steel Dual V-Band + T4 Adapter
  • 1.03A/R Stainless Steel Dual V-Band
  • 1.03A/R Stainless Steel Dual V-Band + T25 Adapter
  • 1.03A/R Stainless Steel Dual V-Band + T3 Adapter
  • 1.03A/R Stainless Steel Dual V-Band + T4 Adapter
  • .64 Stainless Steel Dual V-Band
  • .64 Stainless Steel Dual V-Band + T25 Adapter
  • .64 Stainless Steel Dual V-Band + T3 Adapter
  • .64 Stainless Steel Dual V-Band + T4 Adapter
  • Dual V-band 0.72A/R with IWG
  • Without Turbine Housing

Actuator Options

  • PSR Logged Billet 11.6psi
  • Without Actuator
