Pulsar Turbo Systems New Zealand

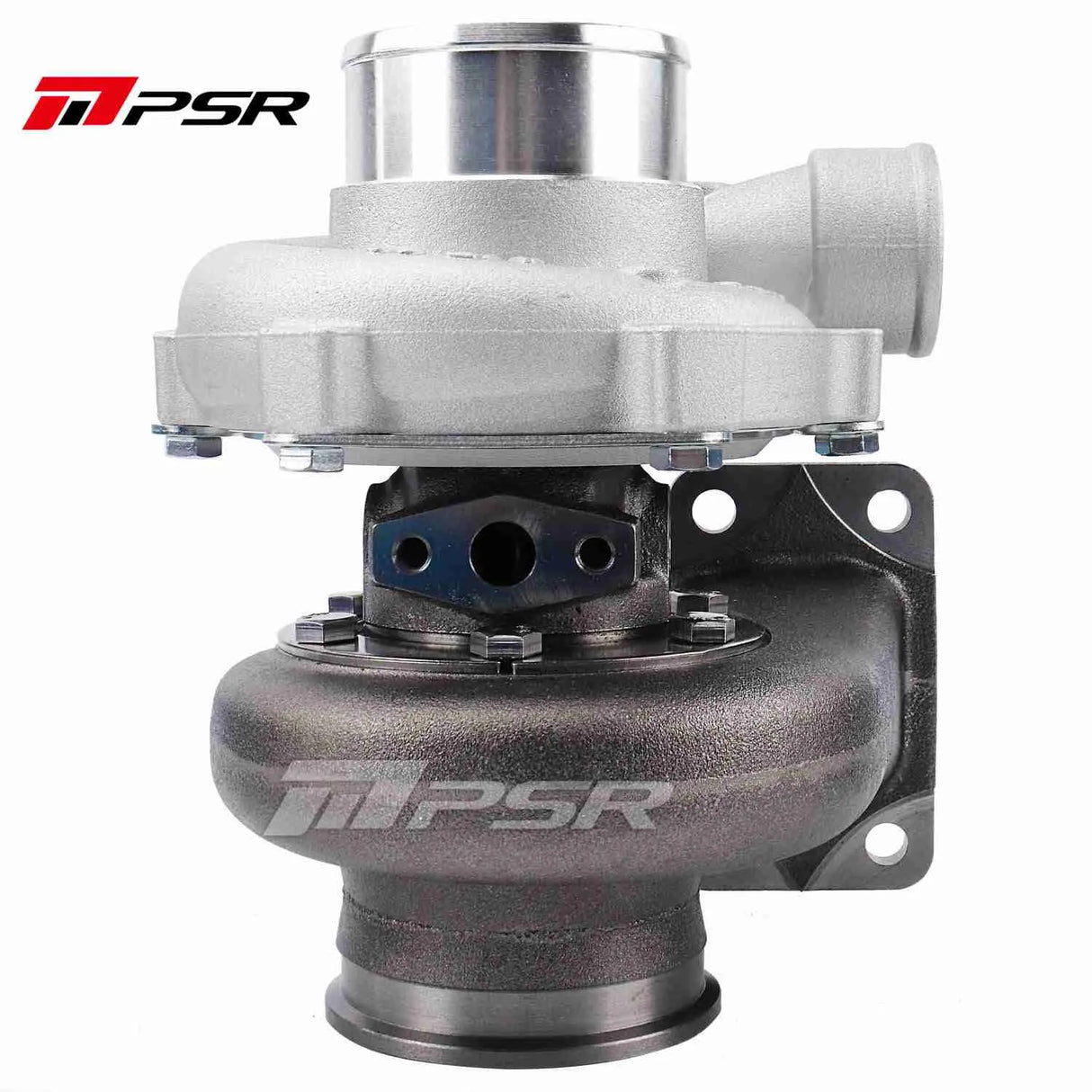

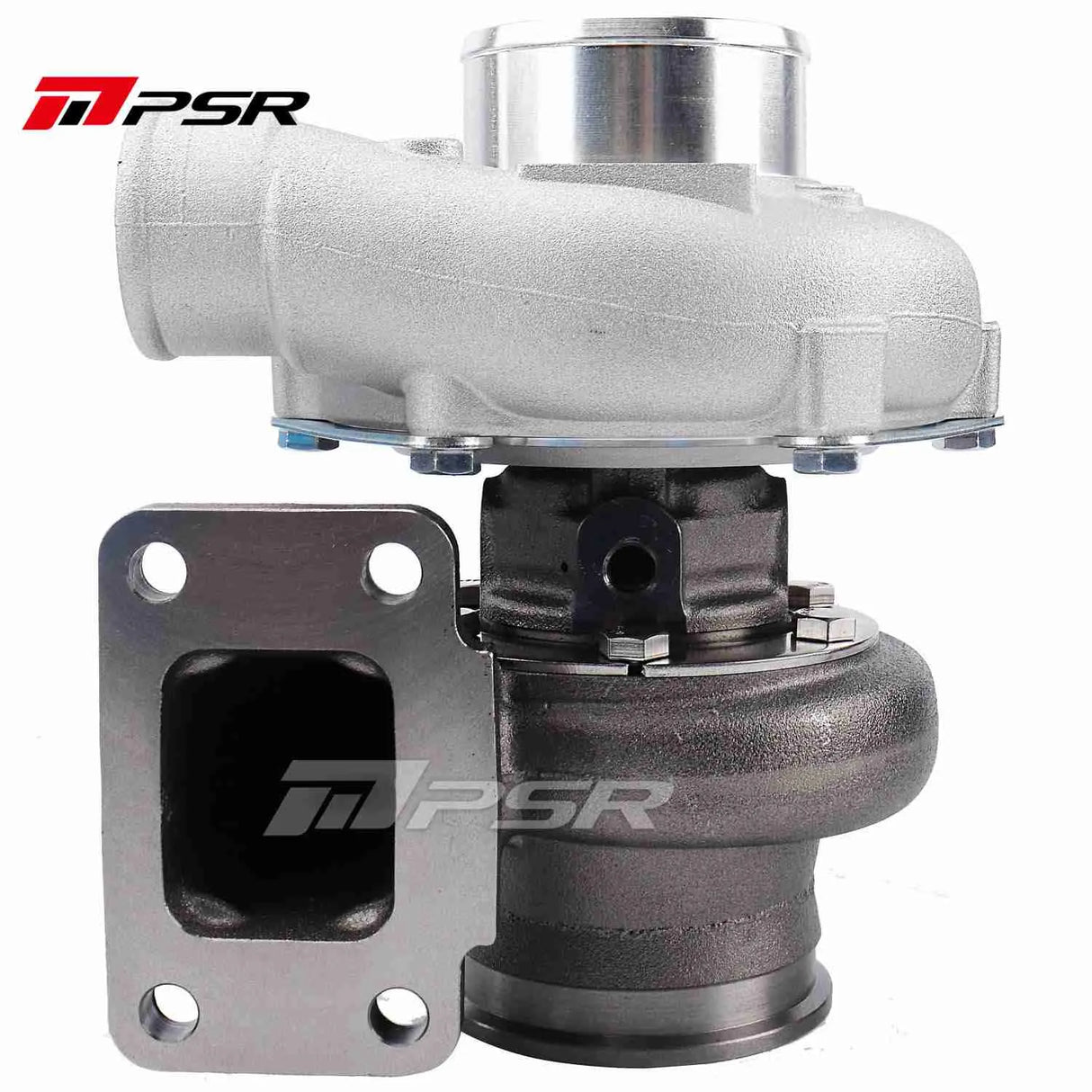

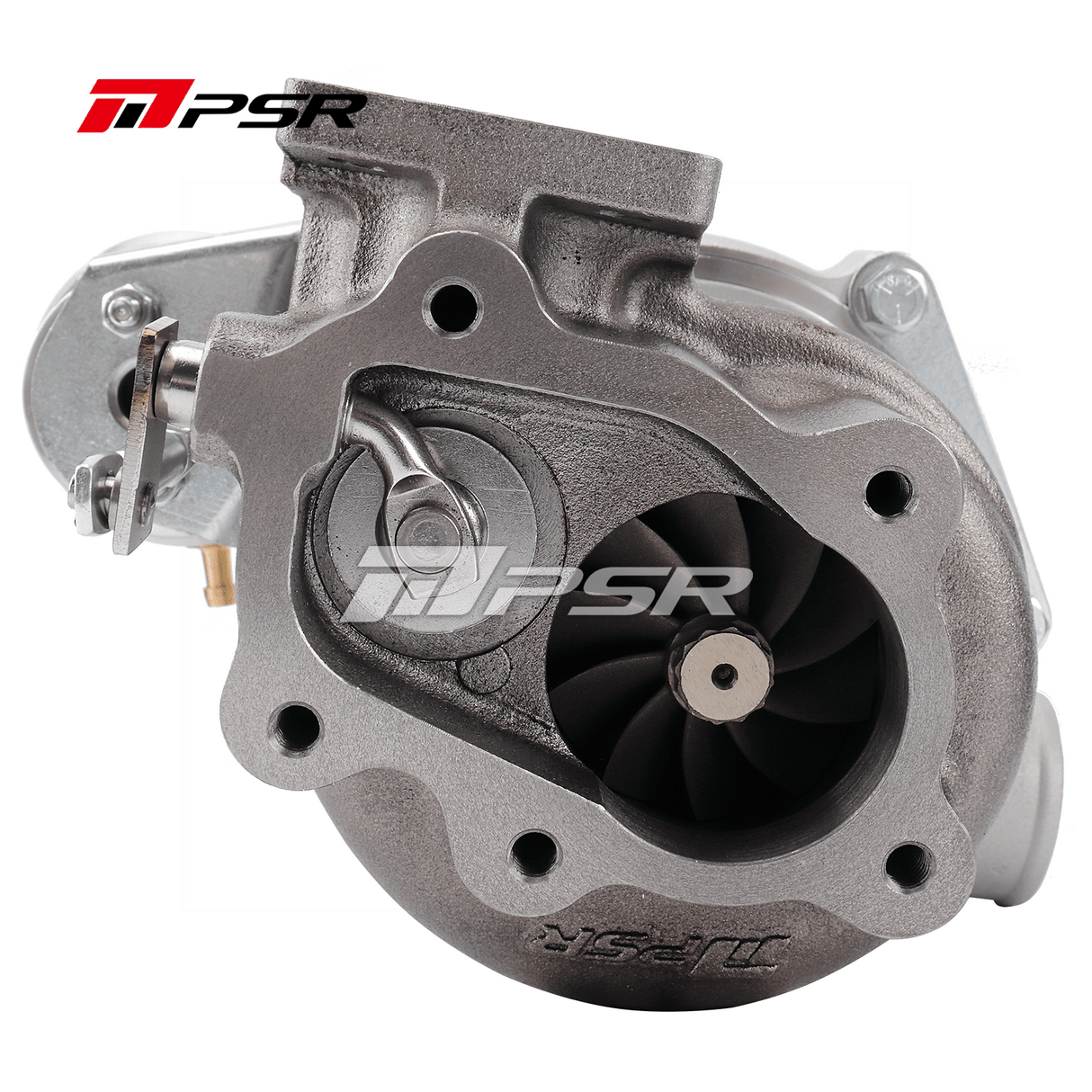

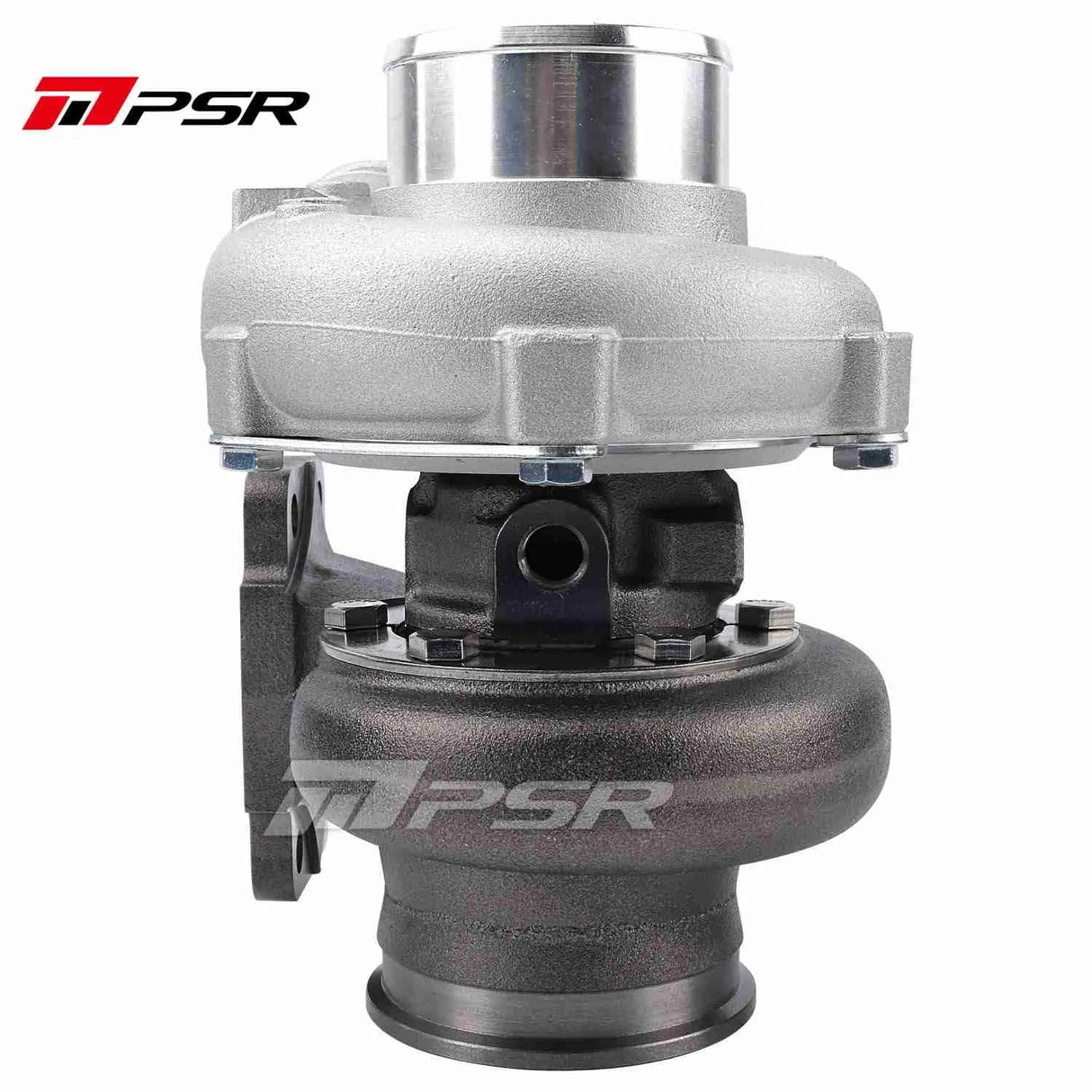

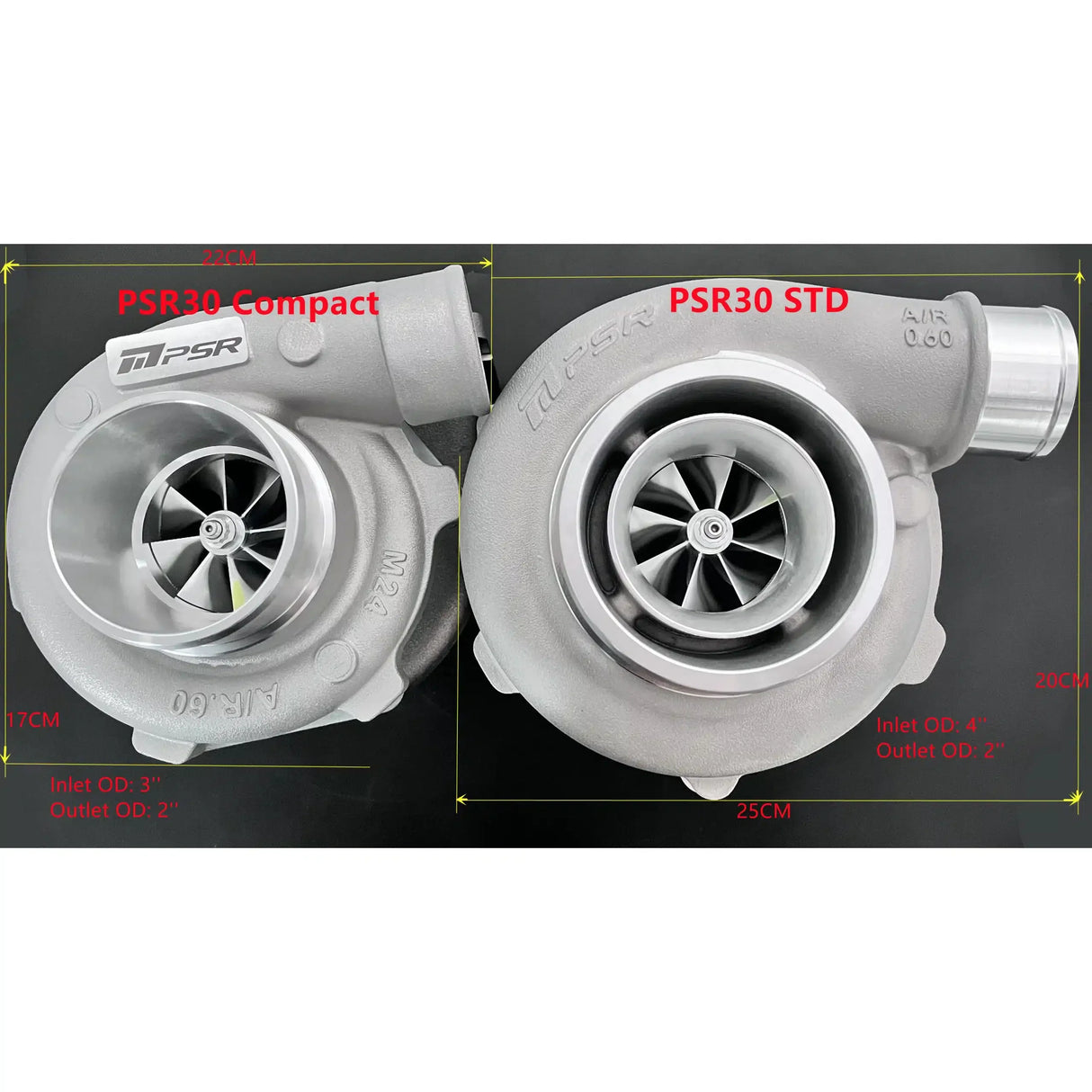

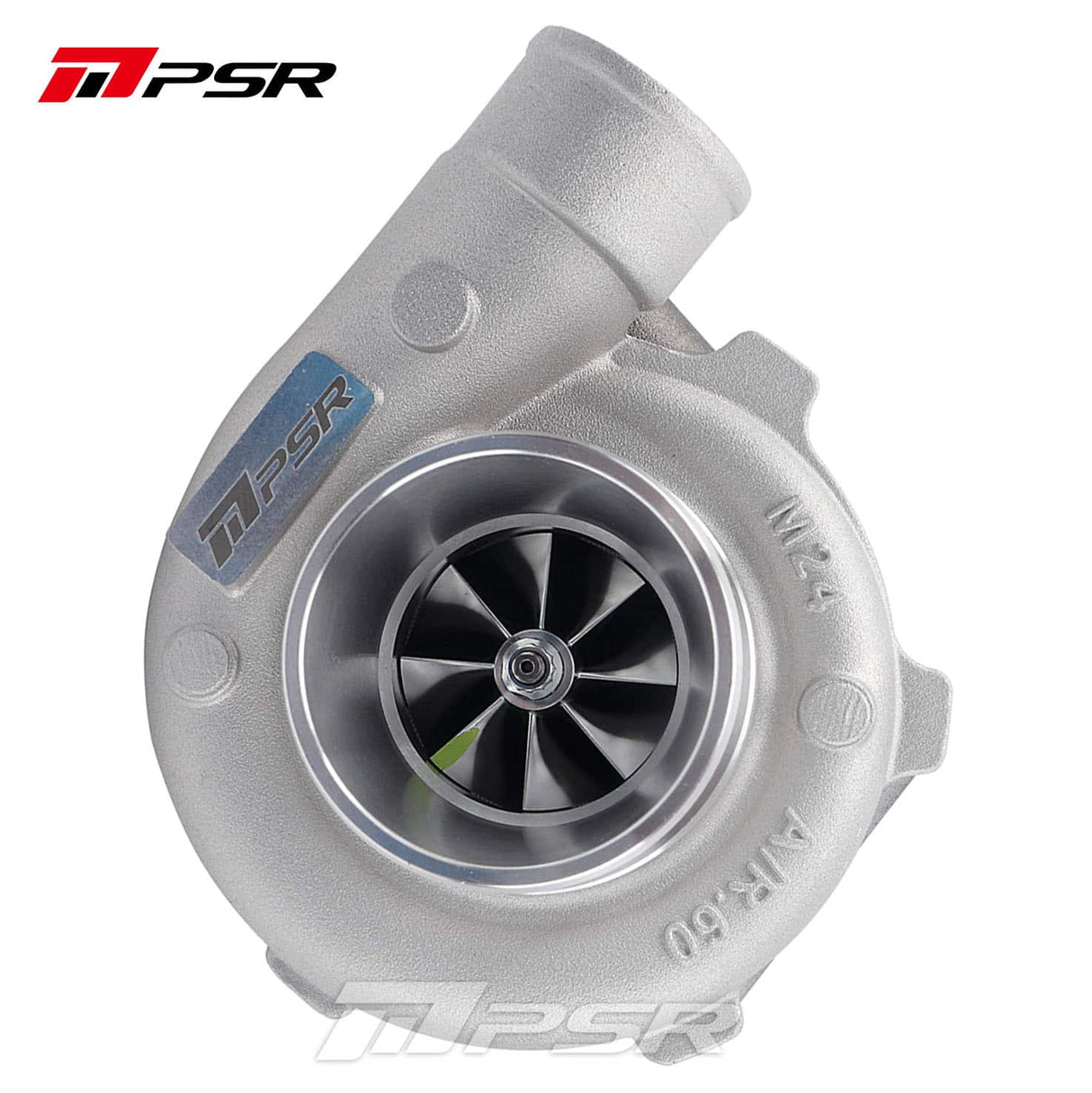

PSR3071 Gen2 Compact Dual Ball Bearing Turbocharger

$1,107.30 $1,302.70
Tax included Shipping calculated at checkout.

Description
  • Compact Compressor cover 3" Inlet, 2"' Outlet
  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • Multiple options for turbine housing
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

    Description:

    • Compressor Wheel: 54*71mm
    • Turbine Wheel: 60*55mm
    • Compressor Inlet: 3″ Hose
    • Compressor Outlet: 2″ Hose
    • Turbine Inlet: T3, T4, or 2.5″ V-Band
    • Turbine Outlet: 3″ V-Band (3.55″ OD)
    • Oil Feed: -4 AN connect to the Oil Restrictor
    • Oil Drain: Std T3 Flange
    • Water In/Outlet: M14*1.5

    We highly recommended running water cooling for better durability.

    Payment & Security

    Payment methods

    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    LOOKING FOR A SPECIFIC PART?

    Share announcements and information with your customers and welcome them to your store.

    Enquire Now!
    Pulsar Turbo Systems New Zealand

    PSR3071 Gen2 Compact Dual Ball Bearing Turbocharger

    From $986.18 $1,160.21
    • Compact Compressor cover 3" Inlet, 2"' Outlet
    • Dual Ceramic Ball Bearing System
    • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
    • Inconel 713c 10 Blade Turbine Wheel
    • Multiple options for turbine housing
    • V-Band Flange kit(s) for the exhaust housing included
    • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

      Description:

      • Compressor Wheel: 54*71mm
      • Turbine Wheel: 60*55mm
      • Compressor Inlet: 3″ Hose
      • Compressor Outlet: 2″ Hose
      • Turbine Inlet: T3, T4, or 2.5″ V-Band
      • Turbine Outlet: 3″ V-Band (3.55″ OD)
      • Oil Feed: -4 AN connect to the Oil Restrictor
      • Oil Drain: Std T3 Flange
      • Water In/Outlet: M14*1.5

      We highly recommended running water cooling for better durability.

      Compressor Housing Options

      • Standard
      • T51R Mod

      Turbine Housing Options

      • T3 Inlet V-Band Outlet 0.63A/R
      • T3 Inlet V-Band Outlet 0.82A/R
      • T3 Inlet V-Band Outlet 1.06A/R
      • T4 Divided Inlet V-Band Outlet 0.85A/R
      • V-Band Inlet V-Band Outlet 0.83A/R
      • V-Band Inlet V-Band Outlet 1.01A/R
      • Stainless Steel V-Band Inlet V-Band Outlet 0.64A/R
      • Stainless Steel V-Band Inlet V-Band Outlet 0.82A/R
      • Stainless Steel V-Band Inlet V-Band Outlet 1.03A/R
      • V-Band Inlet V-Band Outlet 0.83A/R + T4 Adapter
      • V-Band Inlet V-Band Outlet 1.01A/R + T4 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.82A/R + T25 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.82A/R + T3 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.82A/R + T4 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.64A/R + T25 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.64A/R + T3 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 0.64A/R + T4 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 1.03A/R + T25 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 1.03A/R + T3 Adapter
      • Stainless Steel V- Band Inlet V Band Outlet 1.03A/R + T4 Adapter
      • T25 Inlet 5 Bolt Outlet 0.64A/R IWG
      • T25 Inlet 5 Bolt Outlet 0.86A/R IWG
      • Without Turbine Housing
      • 0.72 A/R IWG Dual V-Band

      Actuator Options

      • Without Actuator
      • Stamping 11.6psi
      • PSR Logoed Billet 11.6psi
