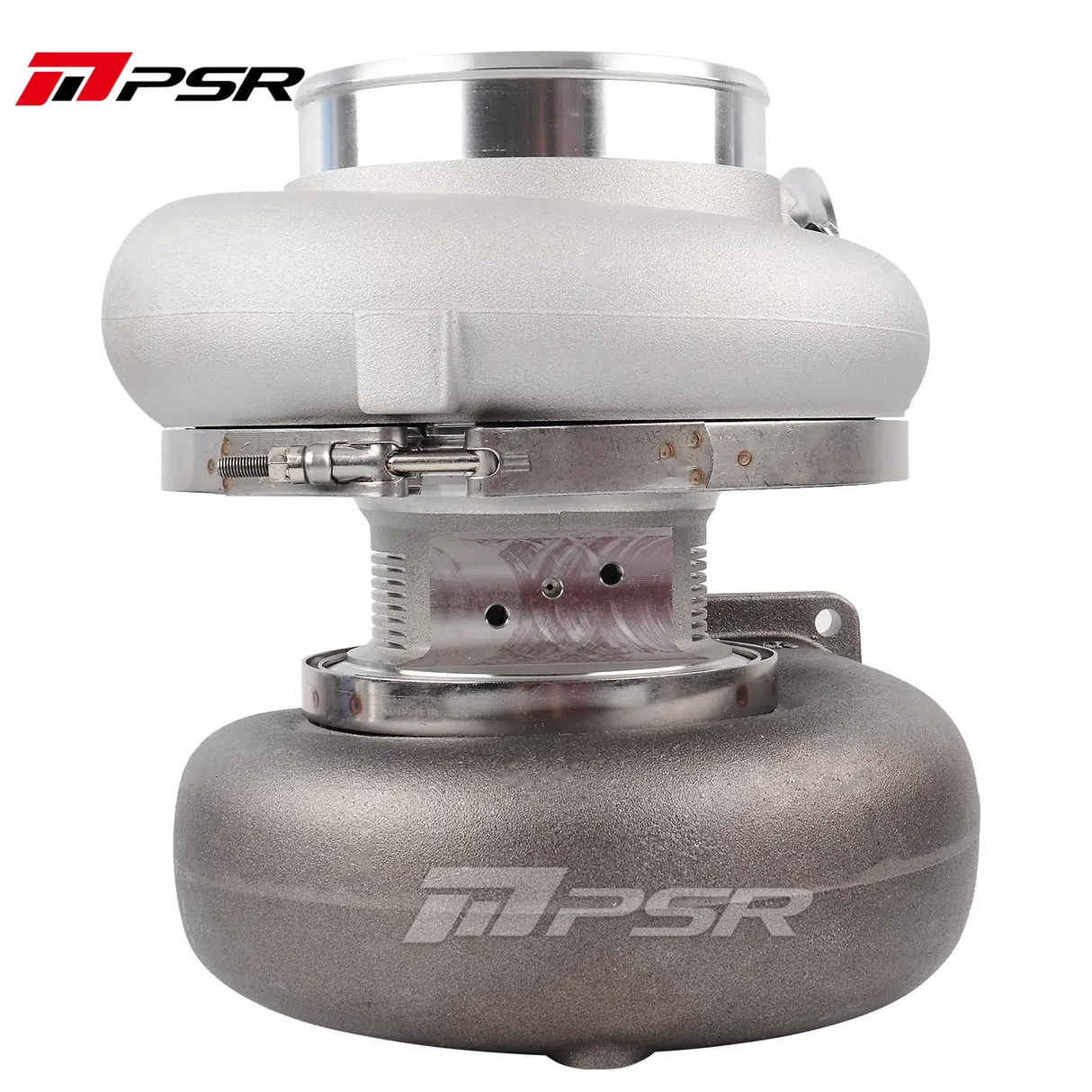

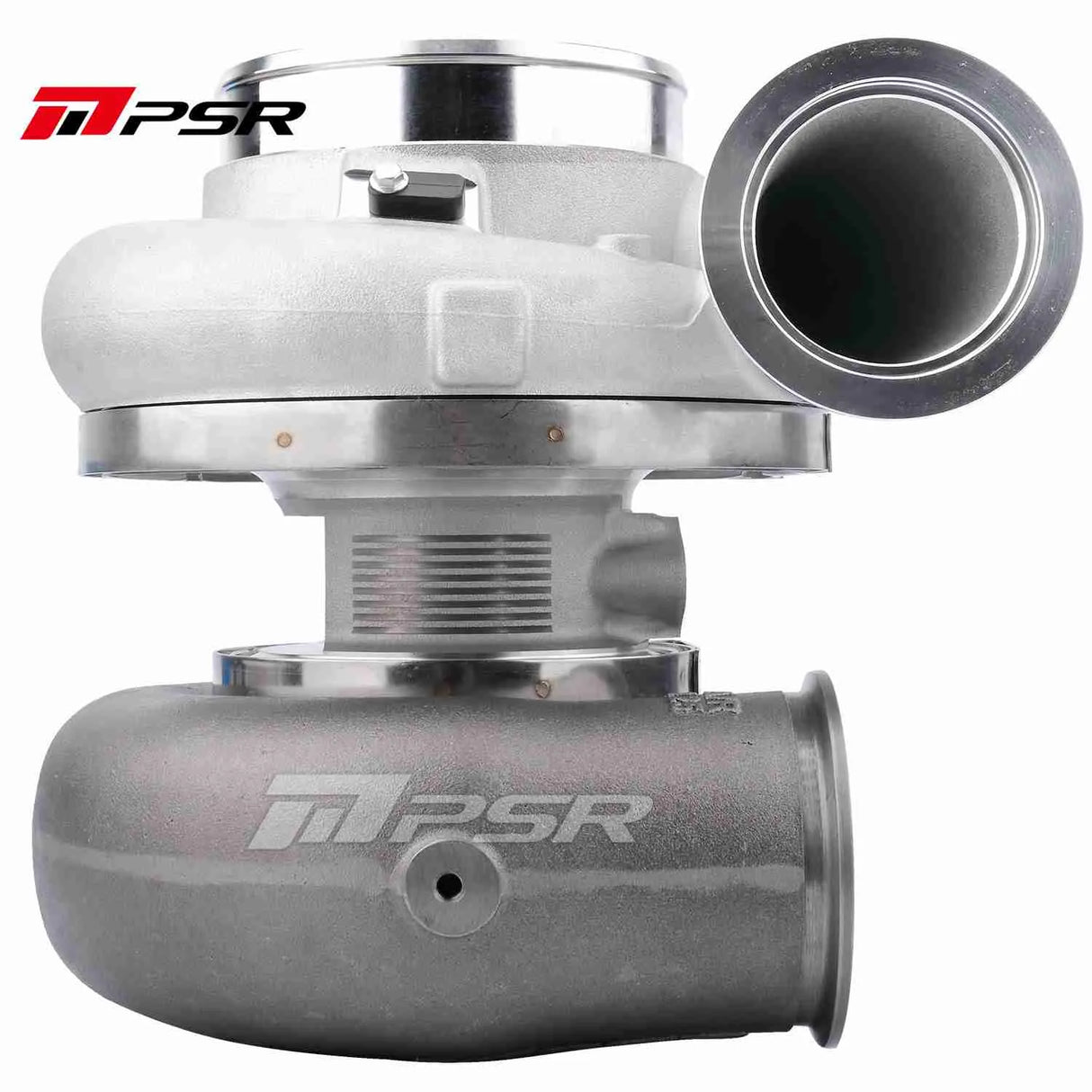

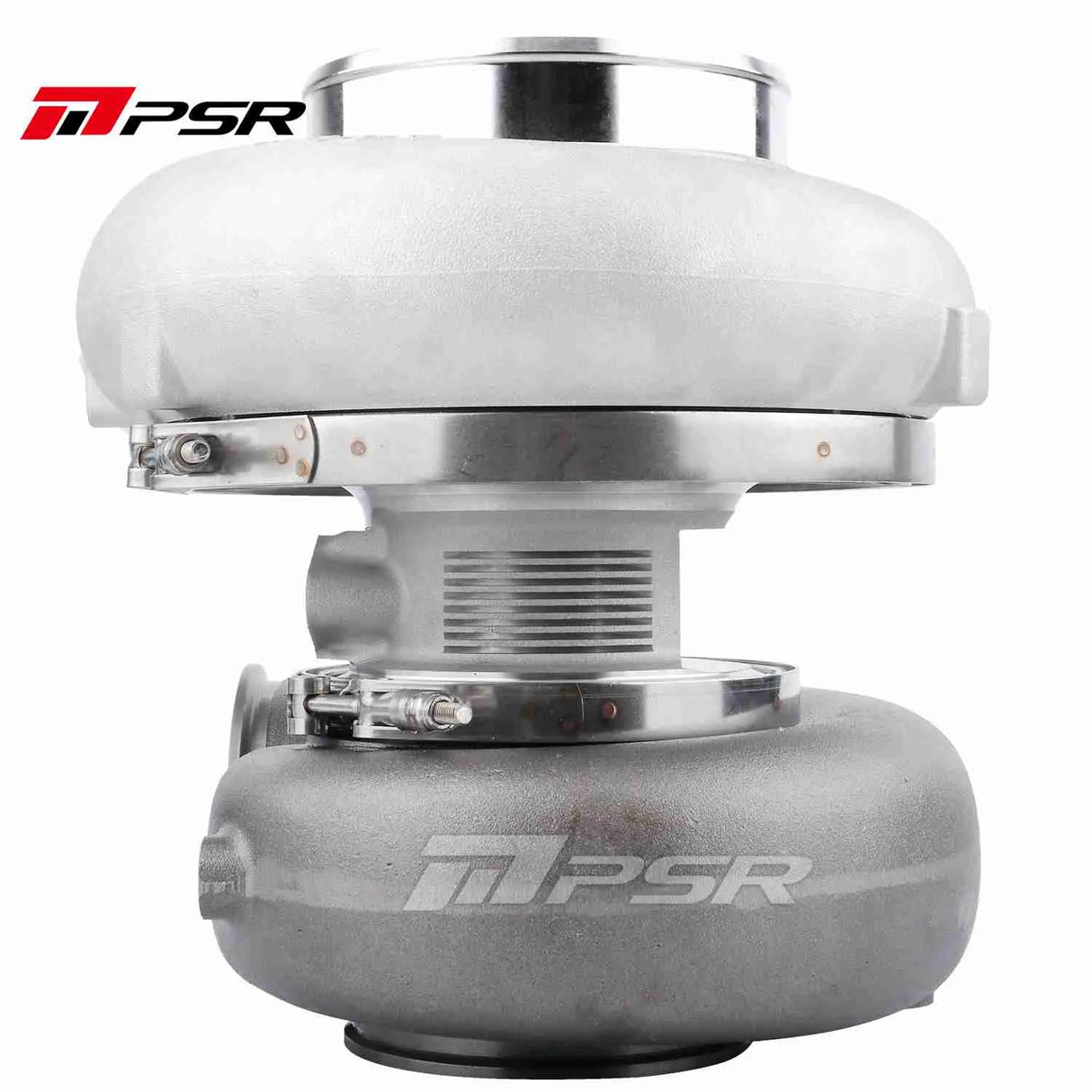

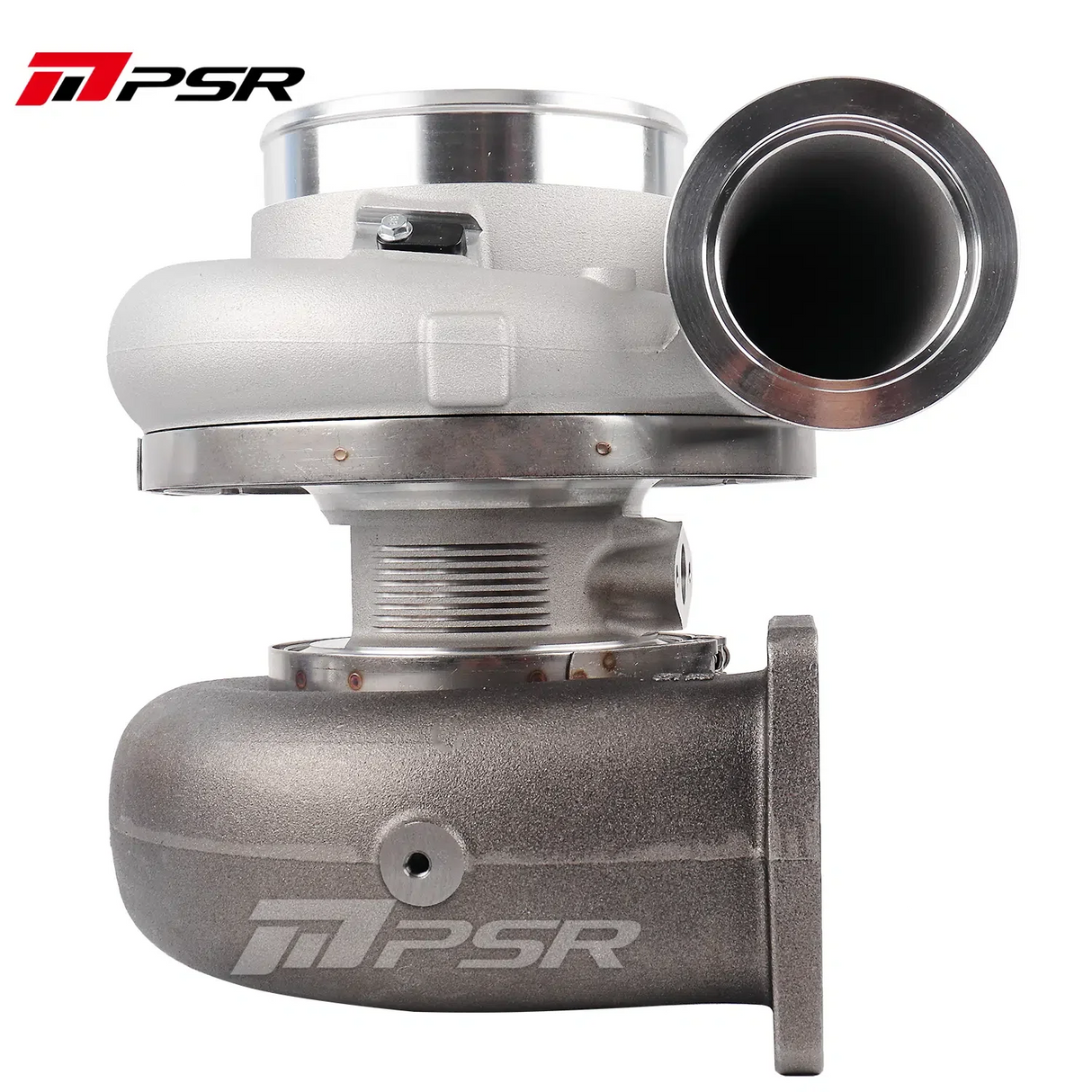

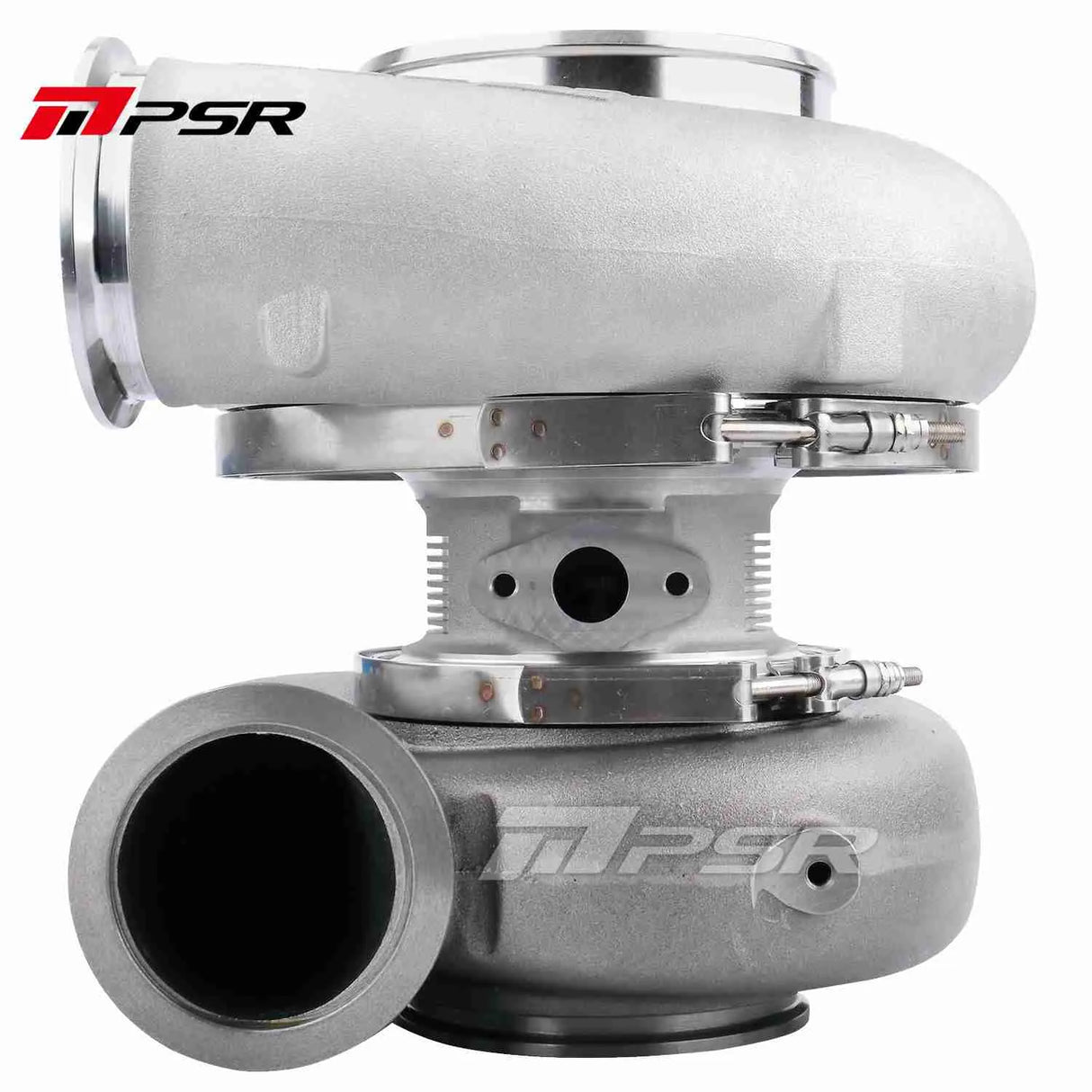

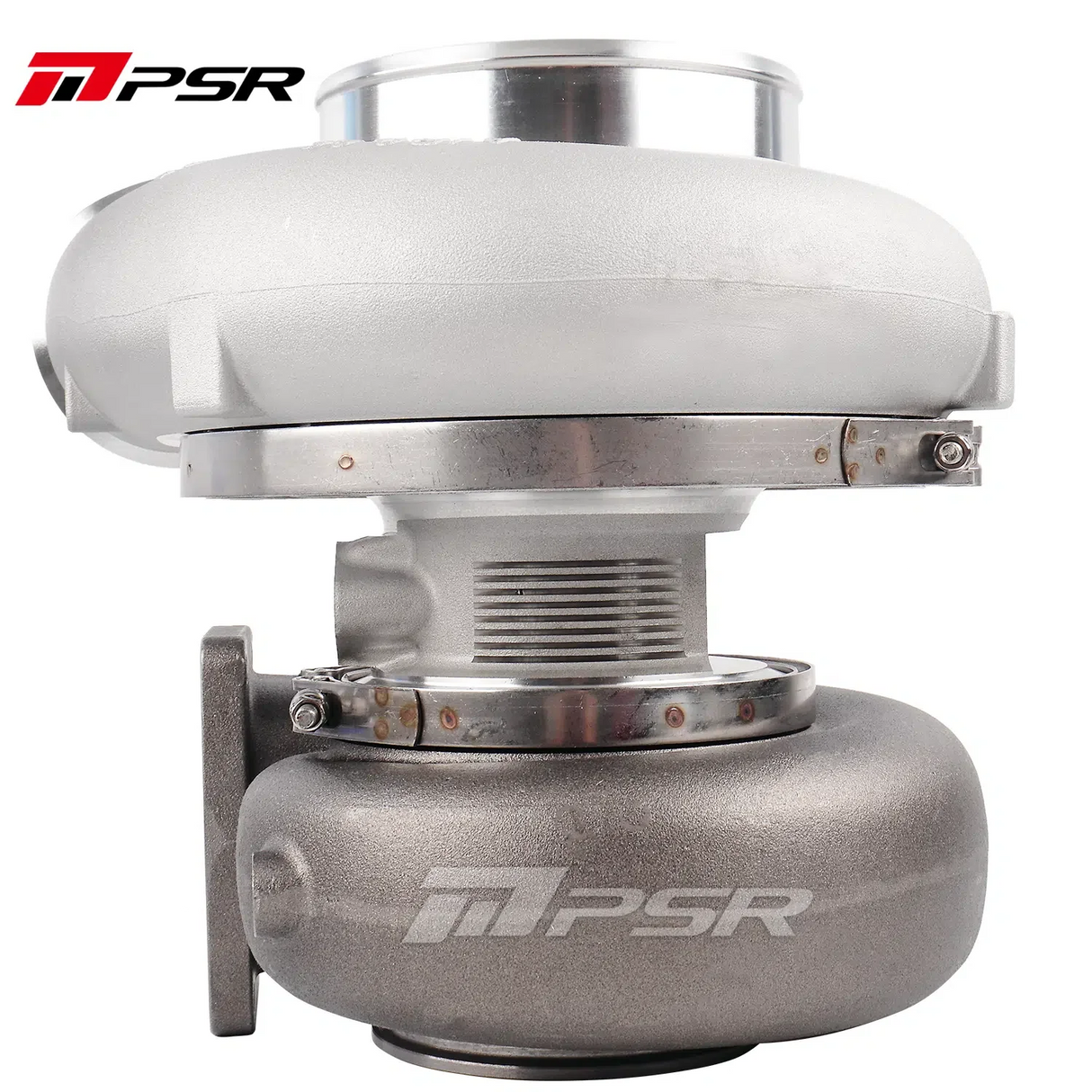

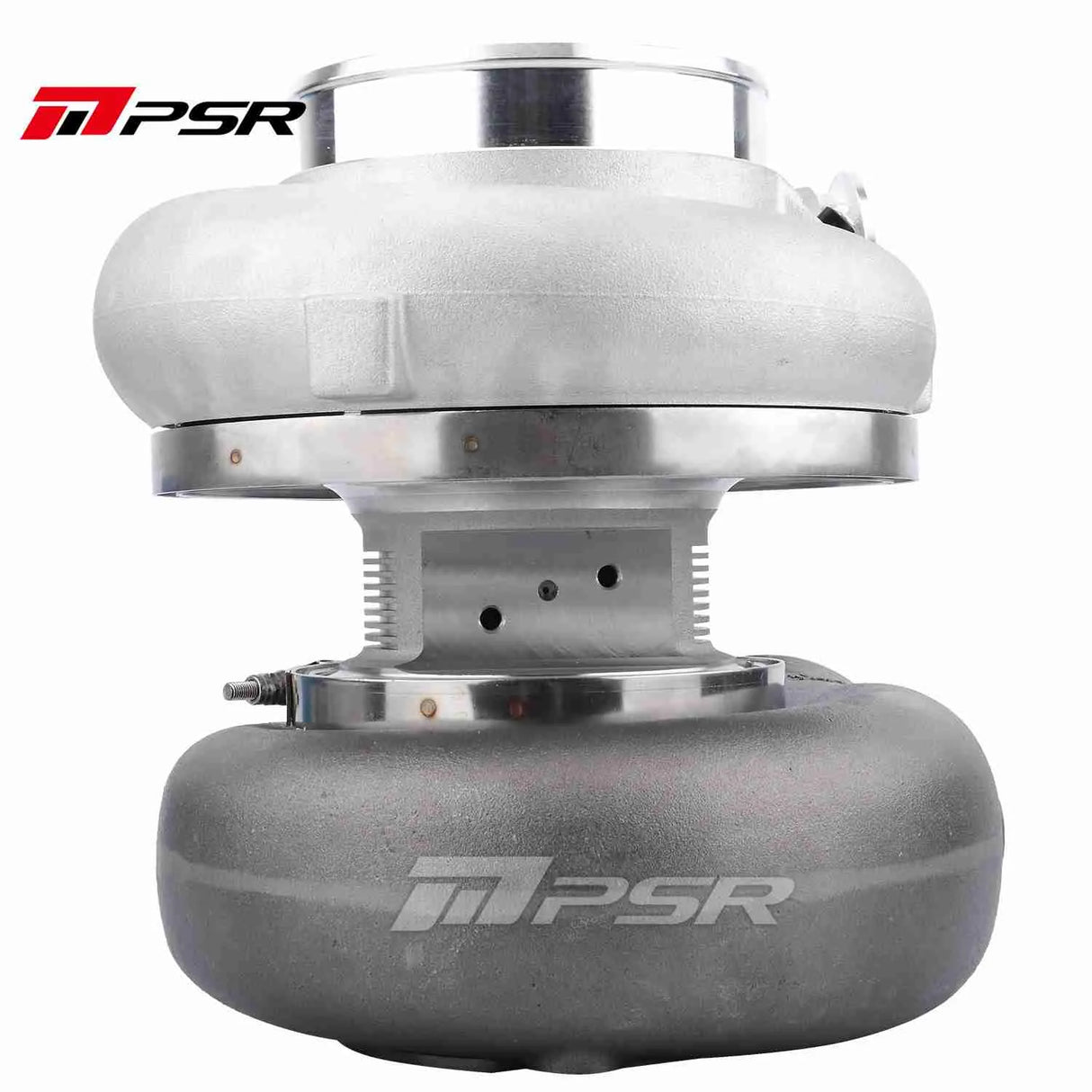

PSR PRO98 HP Rating 2550
$4,671.46
$5,495.83
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
PSR PRO98 HP Rating 2550 - Standard / 1.09A/R Dual V-Band is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
PSR PRO98 HP Rating 2550
From
$4,671.46
$5,495.83
Unit price
/
Unavailable
Description
Description
- Dual ceramic ball bearing system provides optimal turbo response &

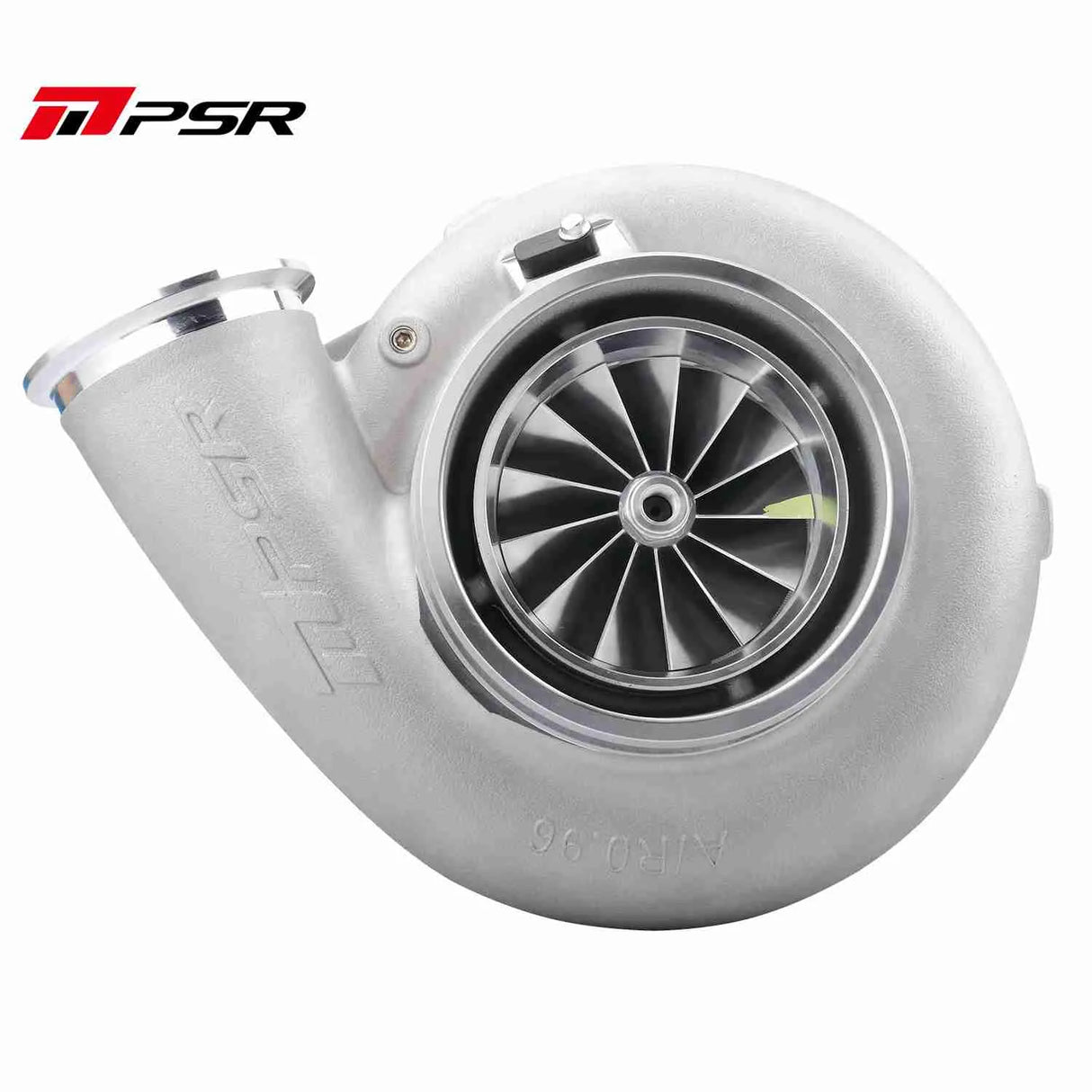

better durability by reducing the shaft-motion - 13 Blade G-Aero billet compressor wheel 98mm inducer produces up to 2550 hp

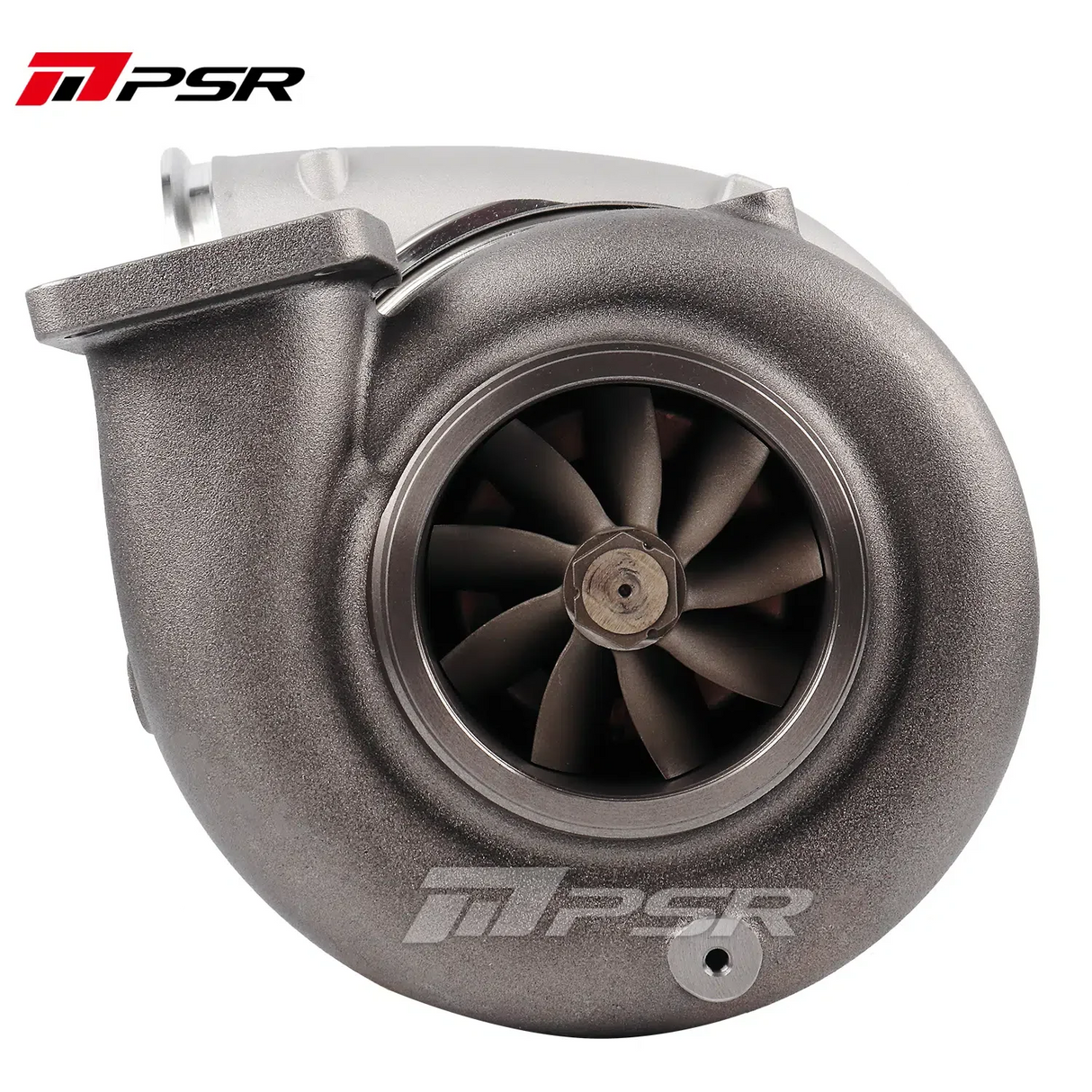

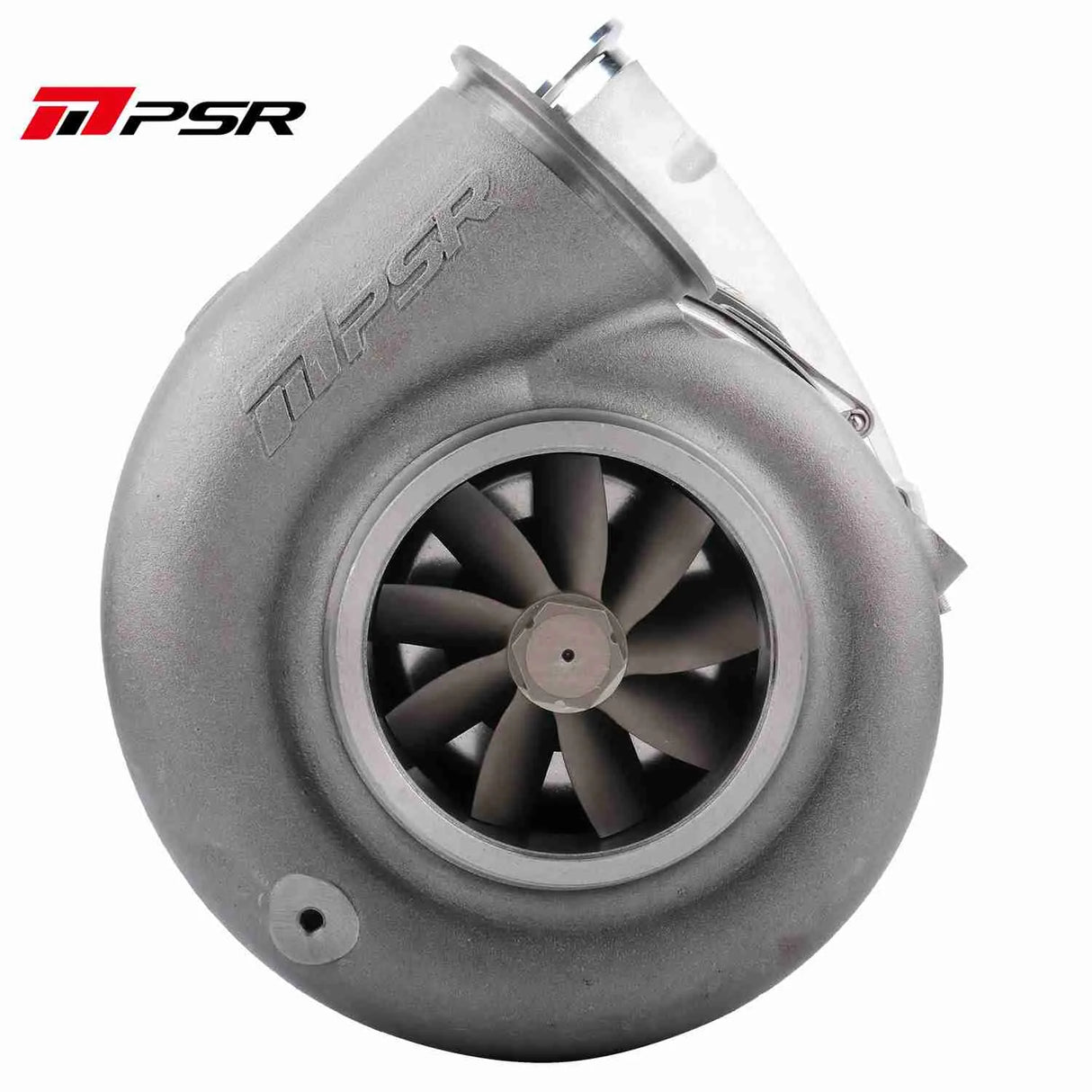

- 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
- Fin cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately check the link if you need it, 🔗
Description
- Compressor Wheel: 98.4*133.5*142.4mm
- Turbine Wheel: 118*112mm
- Compressor Inlet: 6” Hose
- Compressor Outlet: 4” V-band
- Compressor Housing A/R: 0.96

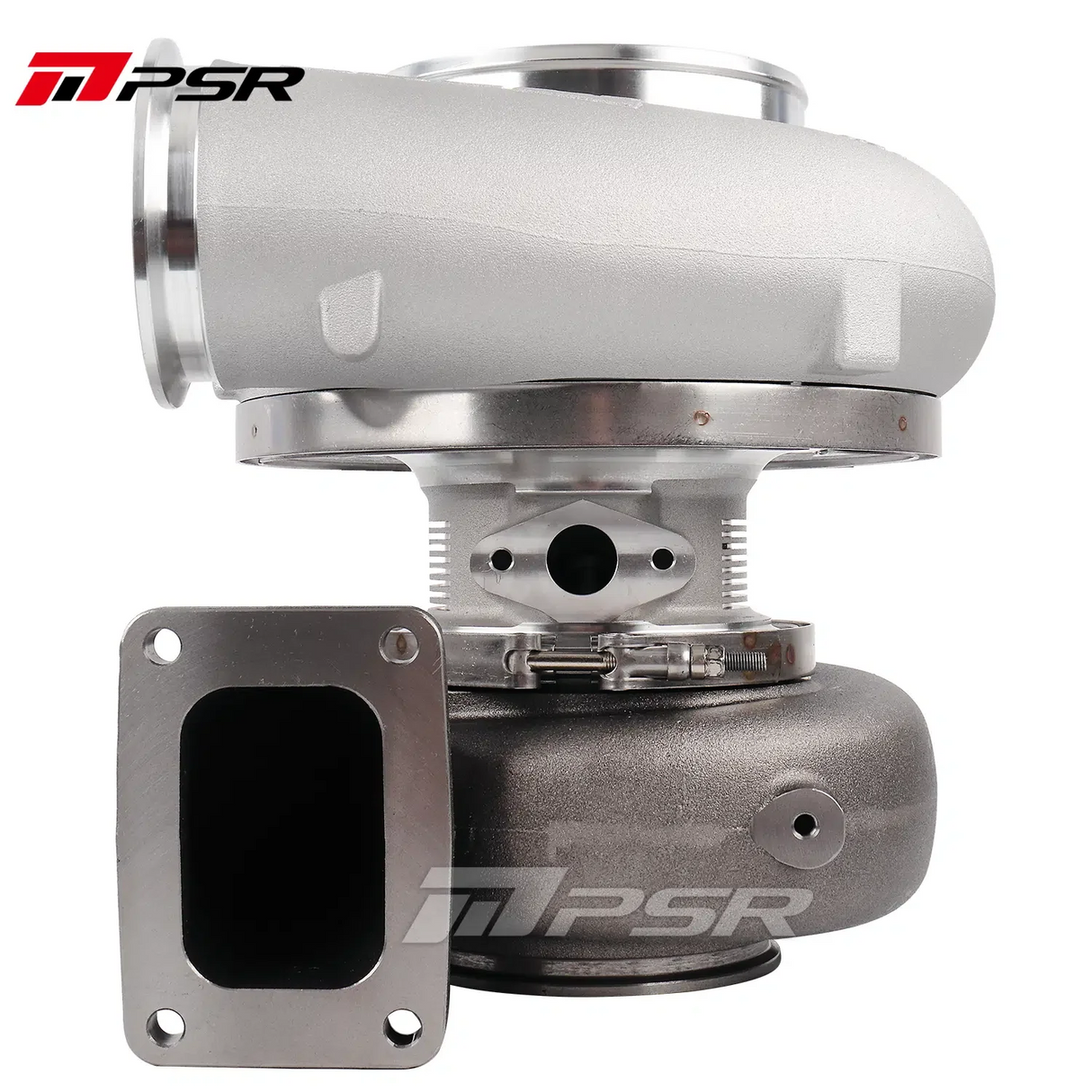

- Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
- Turbine Outlet: 5” V-Band
- Turbine Housing A/R: 1.09/1.25/1.41
- Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
- Oil Drain: See graph below (OIL OUTLET)
