Pulsar Turbo Systems New Zealand

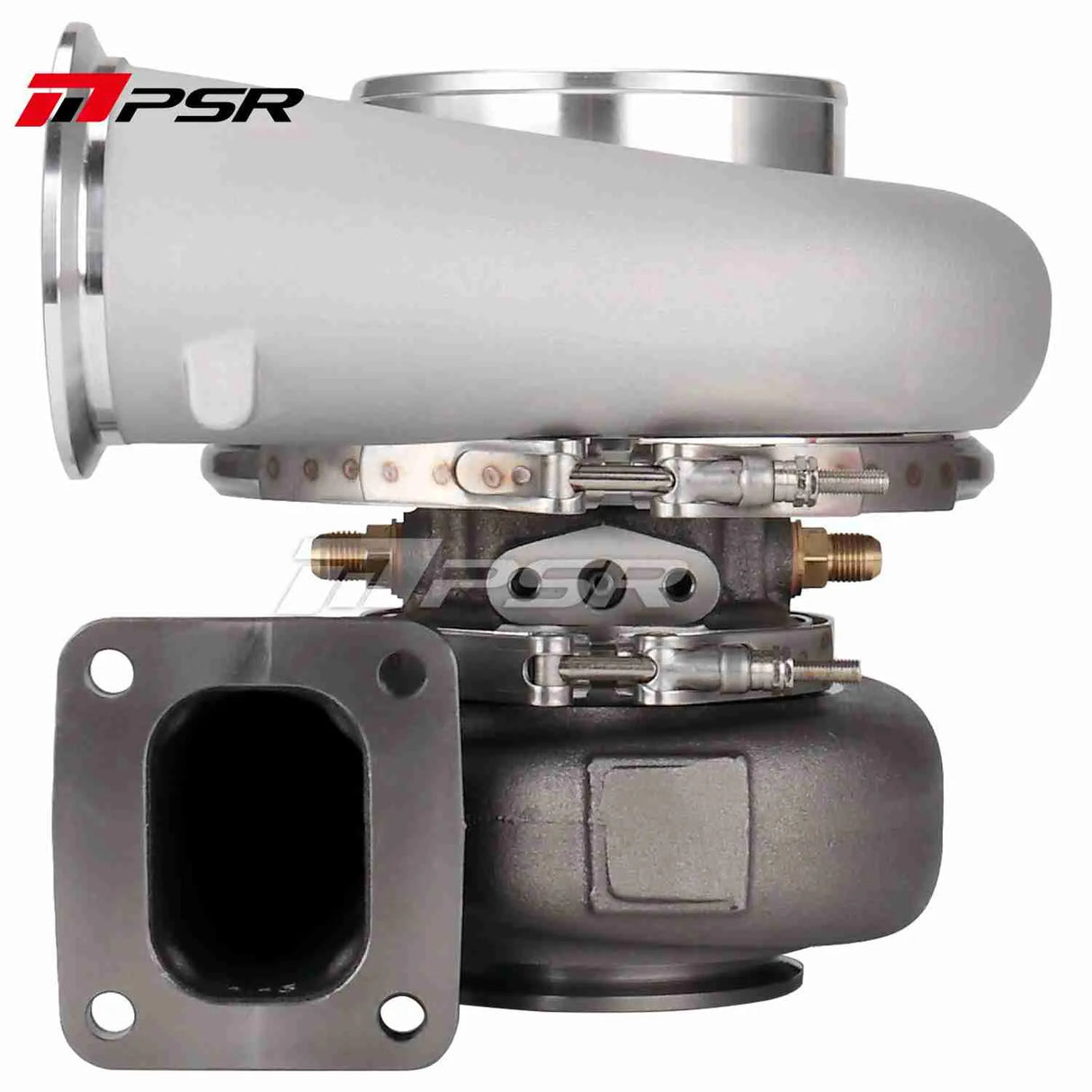

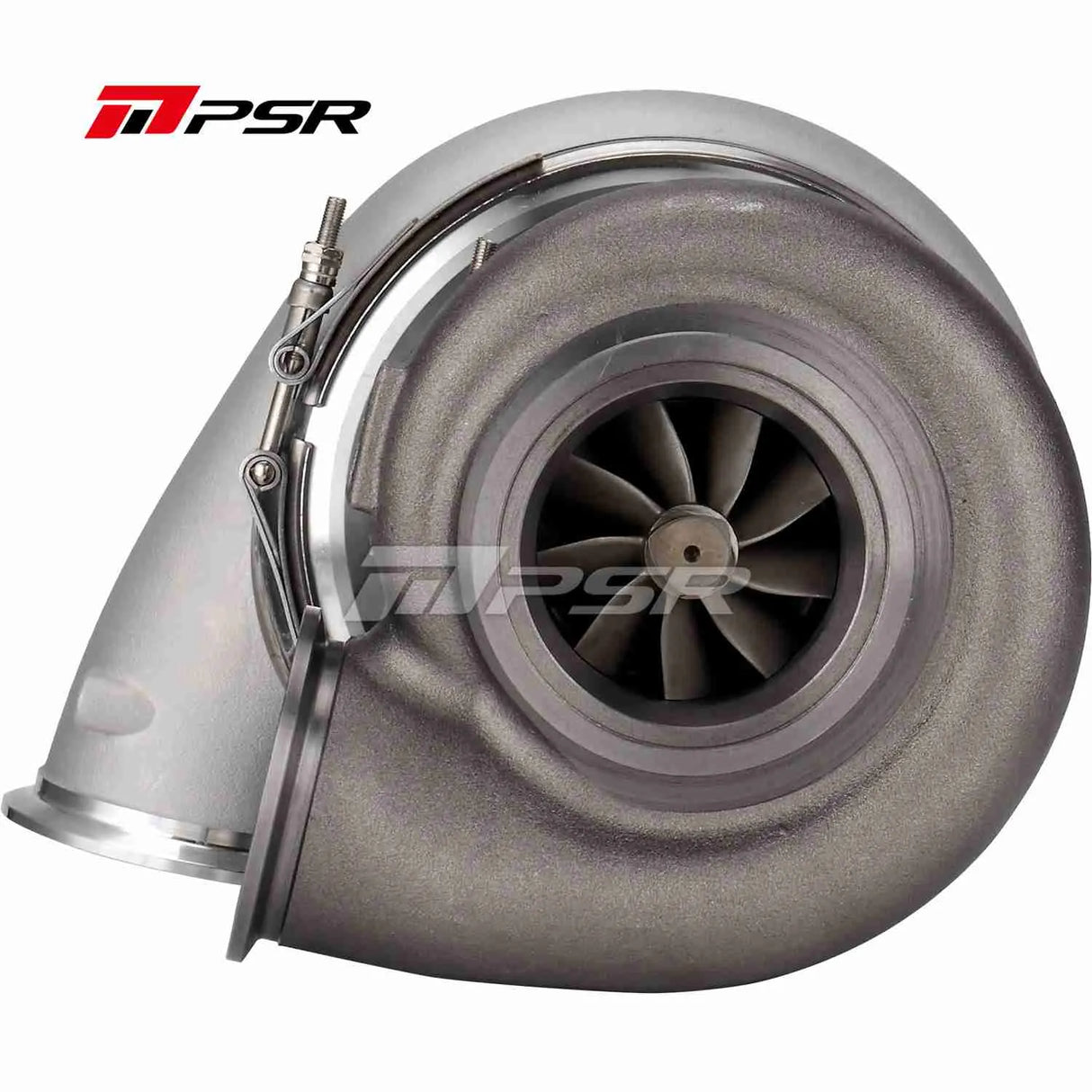

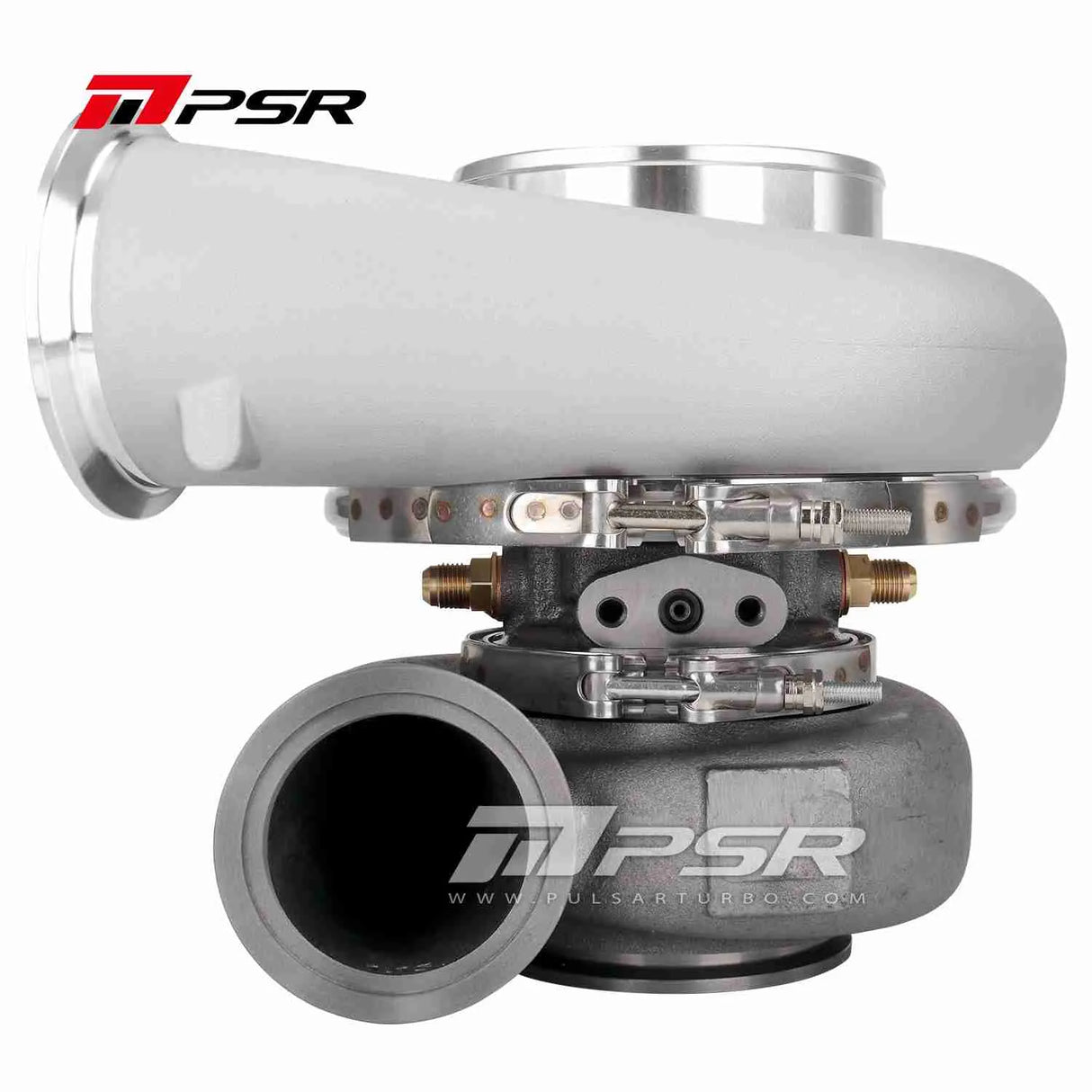

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

$2,162.70 $2,544.35
Tax included Shipping calculated at checkout.

Description
  • PSR Class Legal Turbo with 67/98mm Compressor wheel
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion

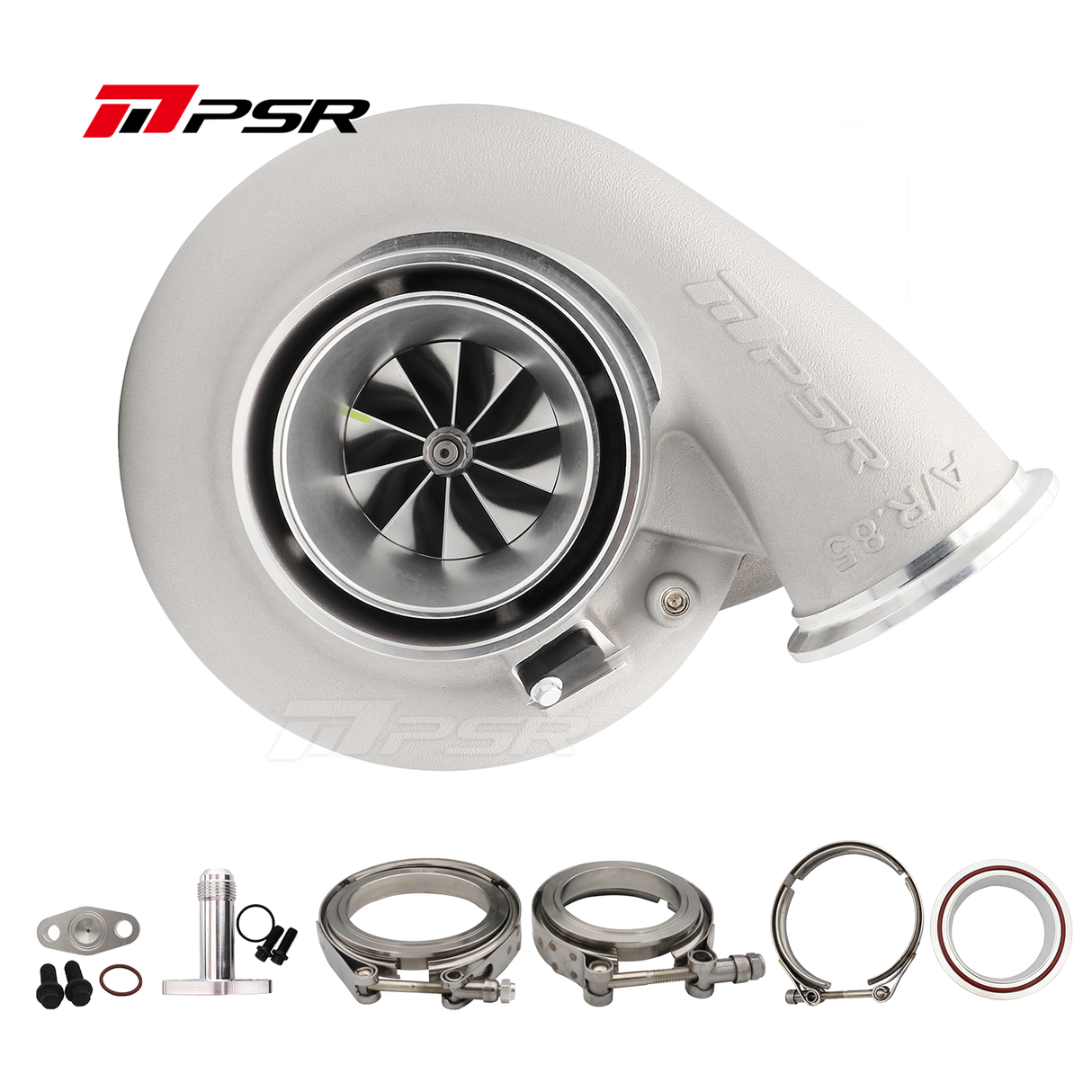

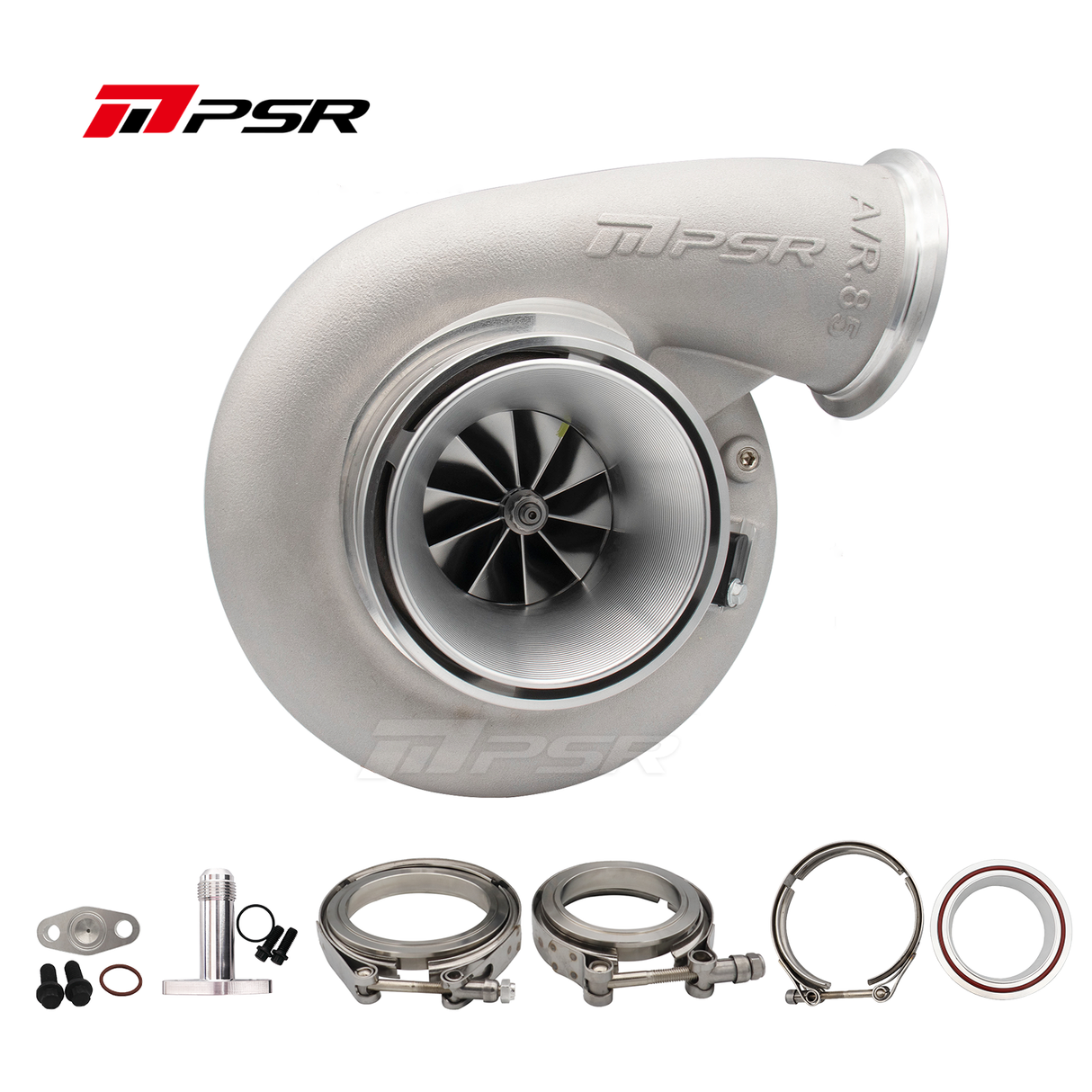

  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

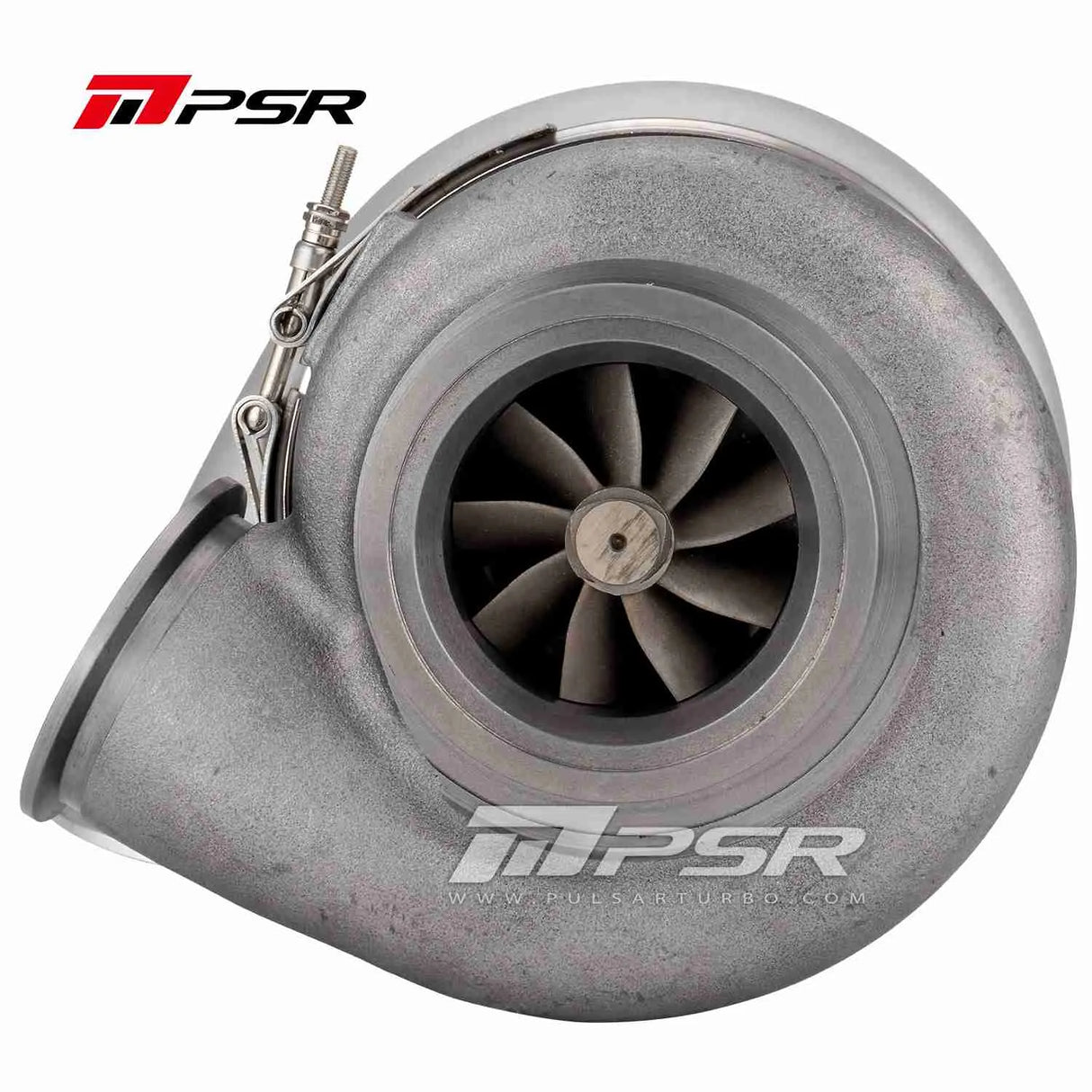

  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • 8 Turbine housing in option

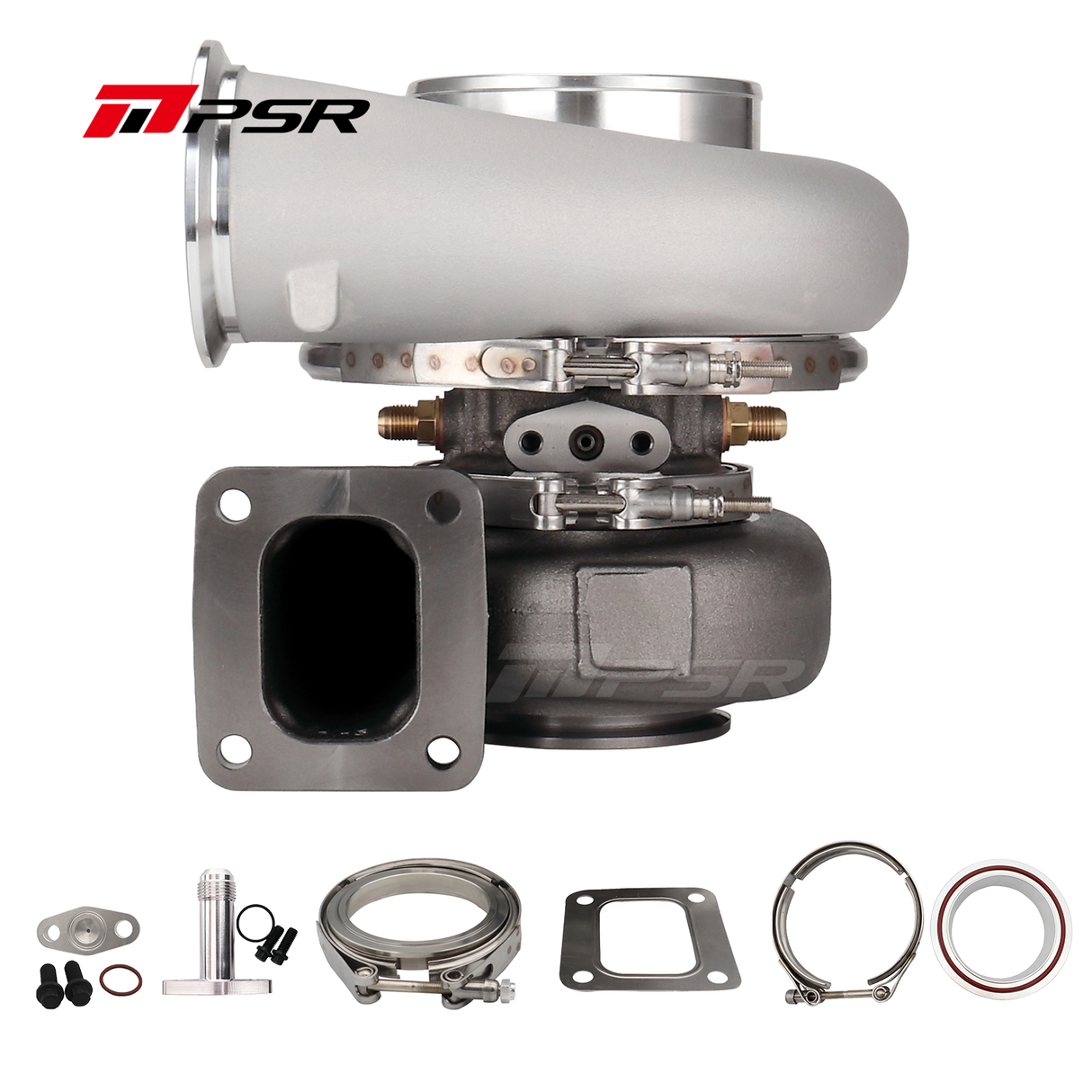

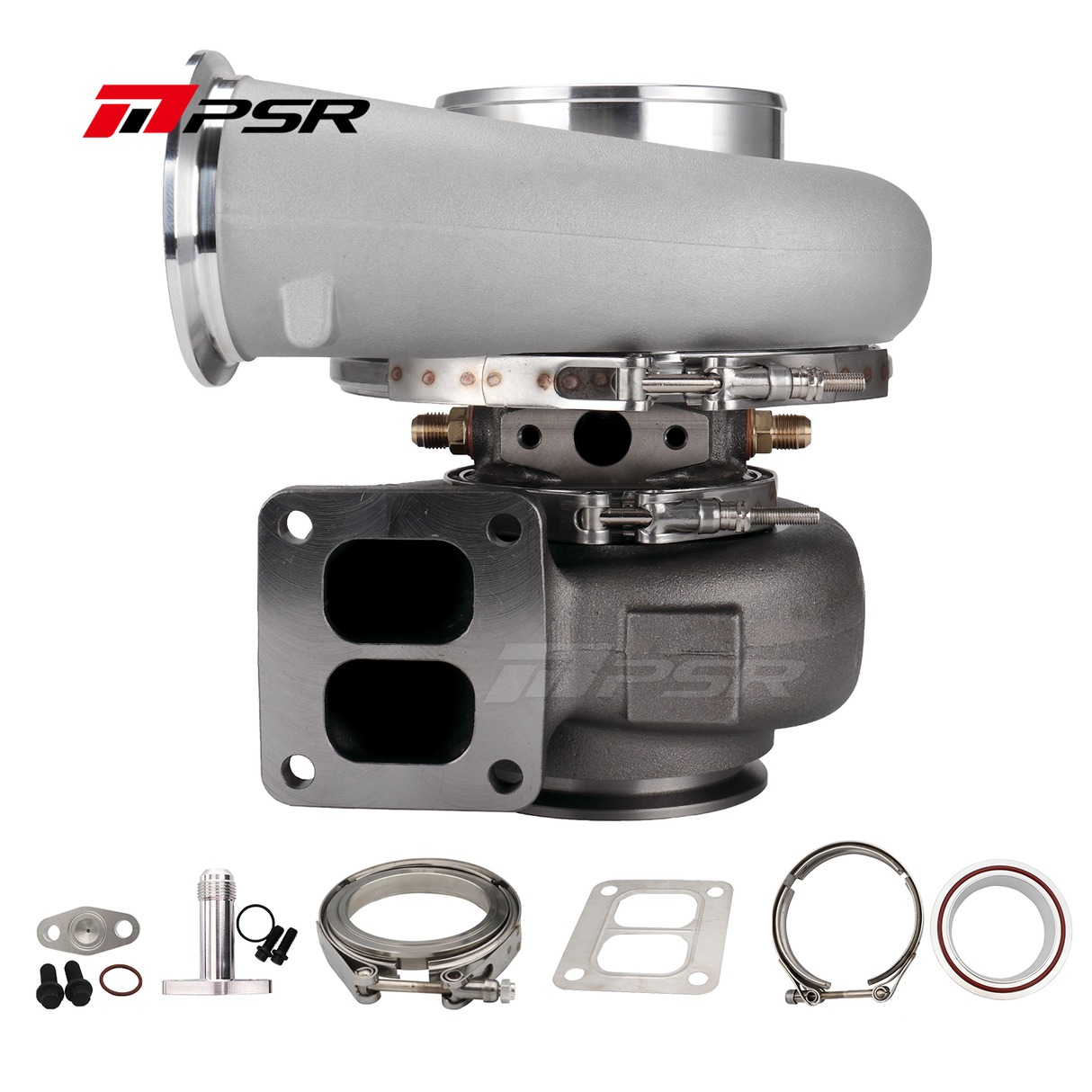

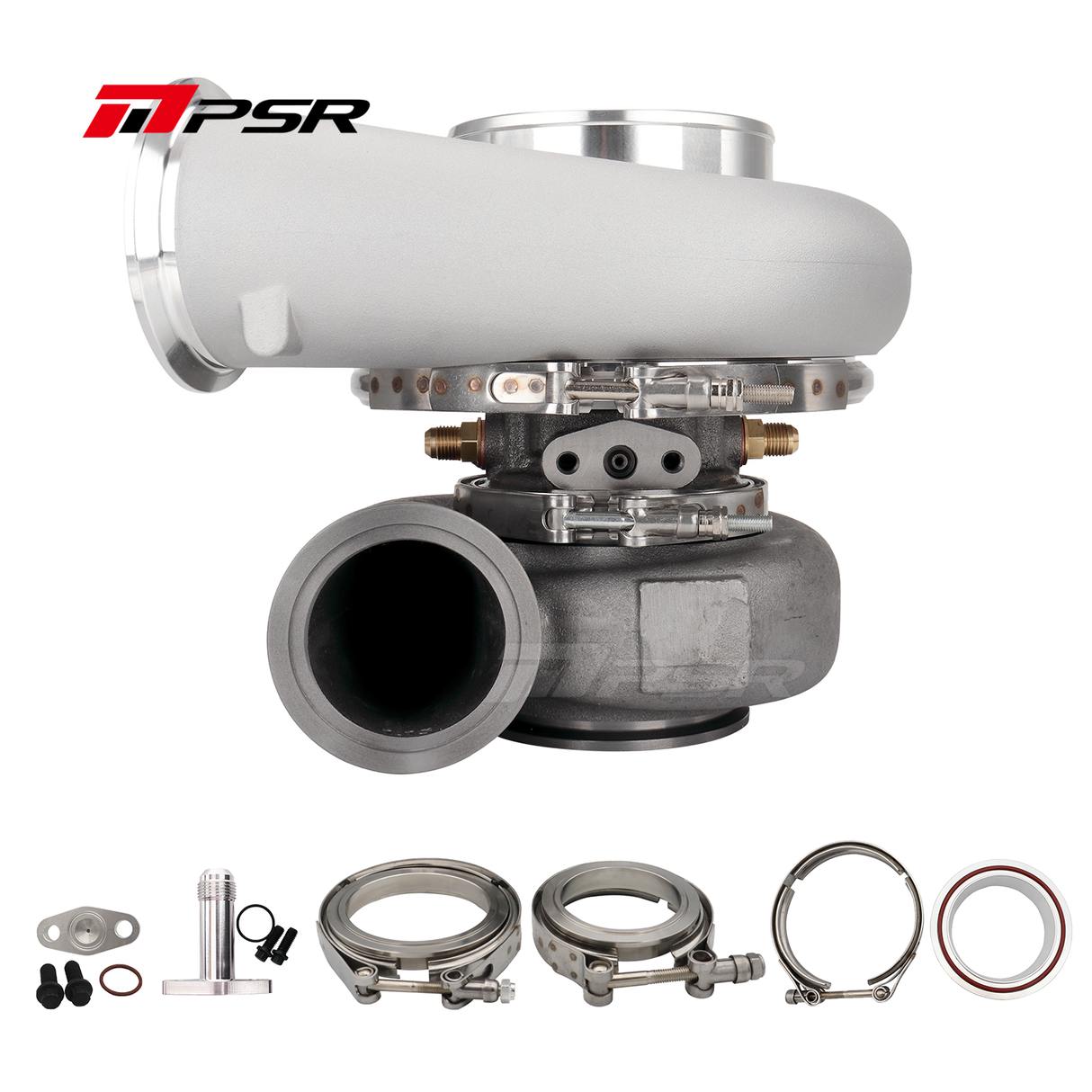

  • Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
  • Oil Feed Fitting needs to be bought separately, check the link if you need it, 🔗

Description:

  • Compressor Wheel: 67*98mm
  • Turbine Wheel: 81.6*89mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required
  • Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

Eight Turbine housings in Option:

  1. T4(Divided) inlet, Vband outlet, 1.01 A/R
  2. T4(Open) inlet, Vband outlet, 1.15 A/R

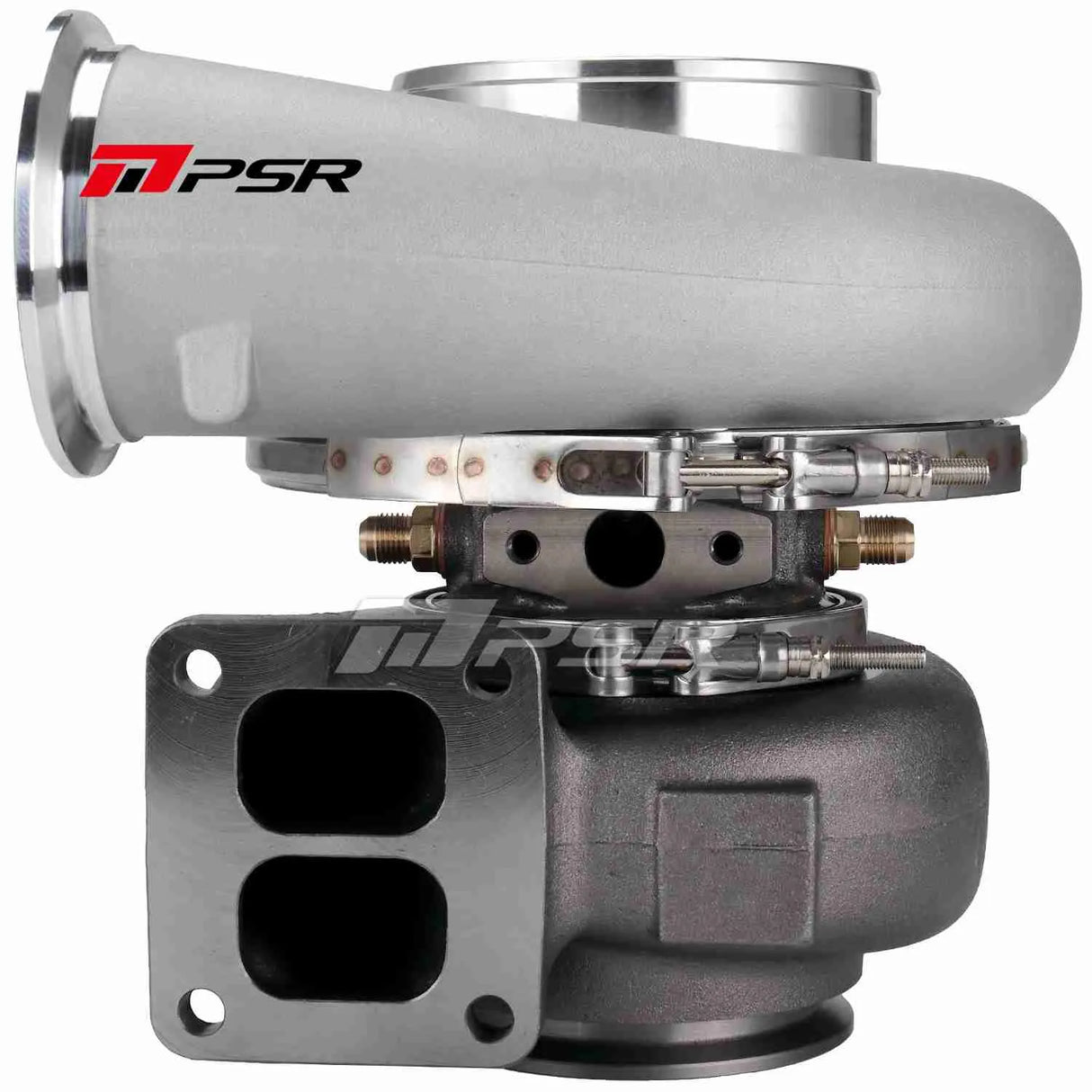

  3. T4(Divided) inlet, Vband outlet, 1.15 A/R
  4. T4(Divided) inlet, Vband outlet, 1.28 A/R
  5. T4(Divided) inlet, Vband outlet, 1.44 A/R
  6. Vband inlet and Vband outlet, 1.01 A/R
  7. Vband inlet and Vband outlet, 1.15 A/R
  8. Vband inlet and Vband outlet, 1.28 A/R

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

LOOKING FOR A SPECIFIC PART?

Share announcements and information with your customers and welcome them to your store.

Enquire Now!
Pulsar Turbo Systems New Zealand

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

From $1,730.16 $2,035.48

Description:

  • Compressor Wheel: 67*98mm
  • Turbine Wheel: 81.6*89mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required
  • Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

Eight Turbine housings in Option:

  1. T4(Divided) inlet, Vband outlet, 1.01 A/R
  2. T4(Open) inlet, Vband outlet, 1.15 A/R
  3. T4(Divided) inlet, Vband outlet, 1.15 A/R
  4. T4(Divided) inlet, Vband outlet, 1.28 A/R
  5. T4(Divided) inlet, Vband outlet, 1.44 A/R
  6. Vband inlet and Vband outlet, 1.01 A/R
  7. Vband inlet and Vband outlet, 1.15 A/R
  8. Vband inlet and Vband outlet, 1.28 A/R

Compressor Housing Options

  • Standard
  • W/O Compressor Housing

Turbine Housing Options

  • T4 (Open) Inlet V-Band Outlet 1.15A/R
  • 0.95A/R T4 Divided Inlet V-Band Outlet
  • 1.15A/R T4 Divided Inlet V-Band Outlet
  • V-Band Inlet V-Band Outlet 1.15A/R
  • 1.28A/R T4 Divided Inlet V-Band Outlet
  • V-Band Inlet V-Band Outlet 1.28A/R
  • V-Band Inlet V-Band Outlet 1.01A/R
  • 1.01A/R T4 Divided Inlet V-Band Outlet
  • Without Turbine Housing
