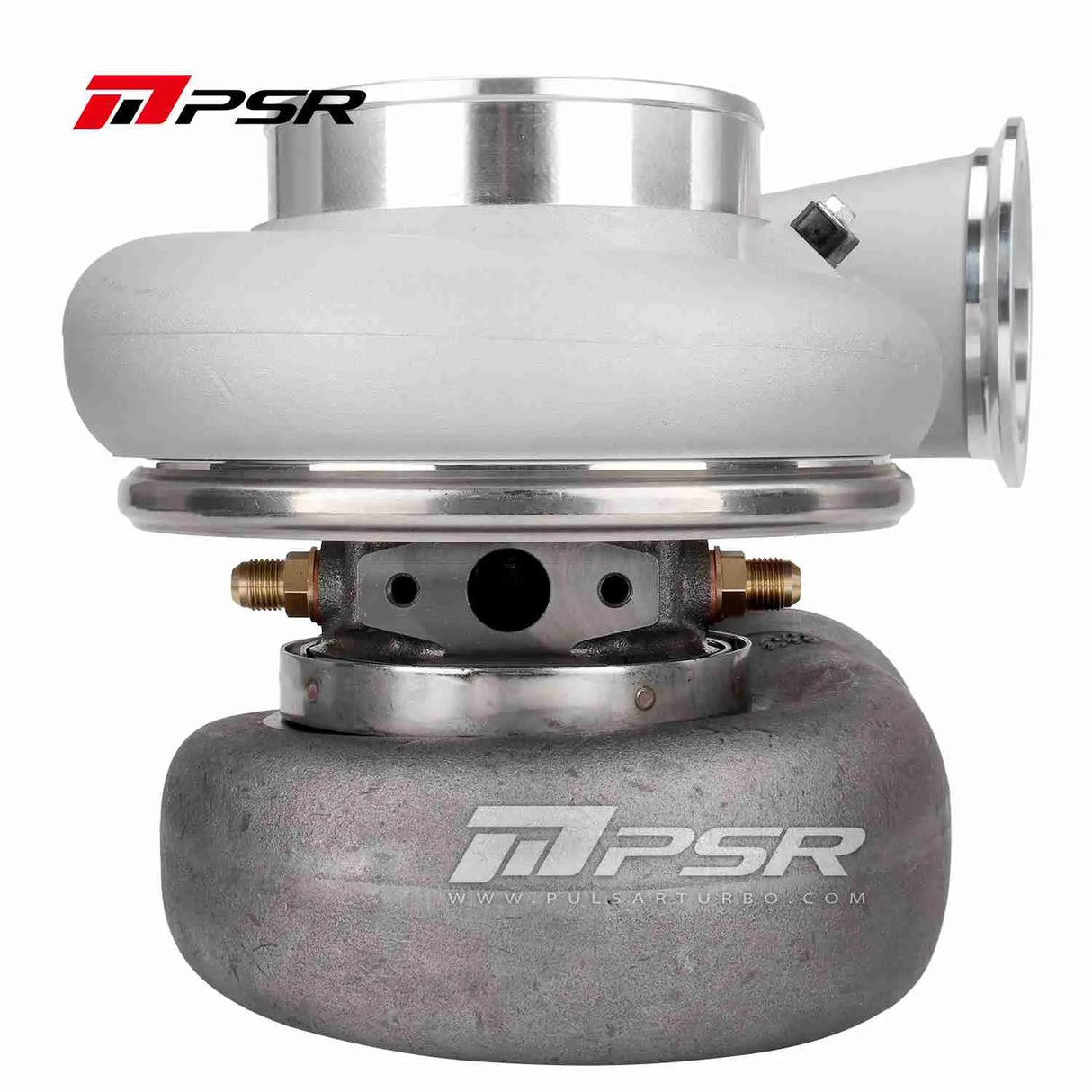

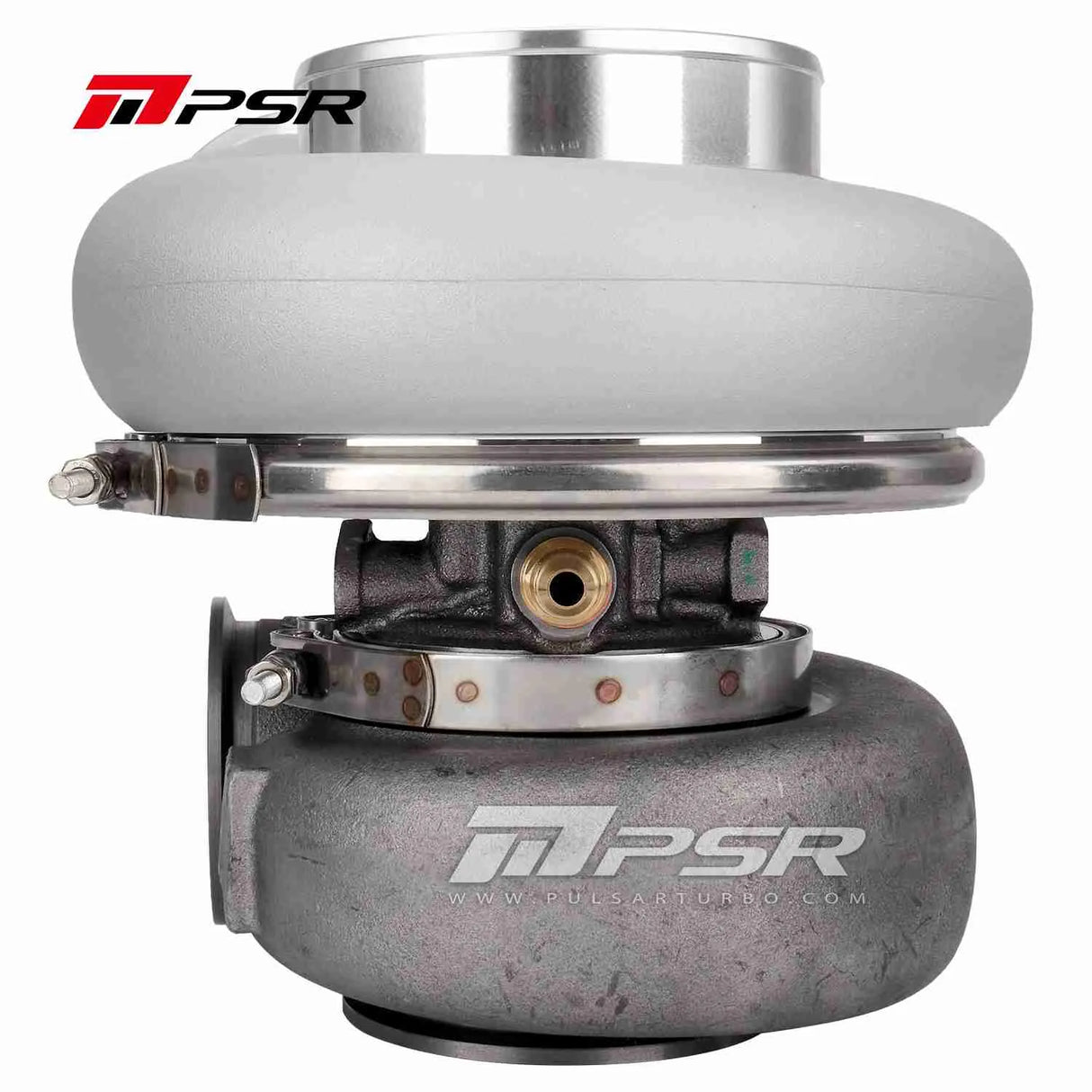

PSR Class Legal 6775G Dual Ball Bearing Turbocharger

$1,816.66 $2,137.25
Tax included Shipping calculated at checkout.

Description
  • PSR Class Legal Turbo with 67/98mm Compressor wheel
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion

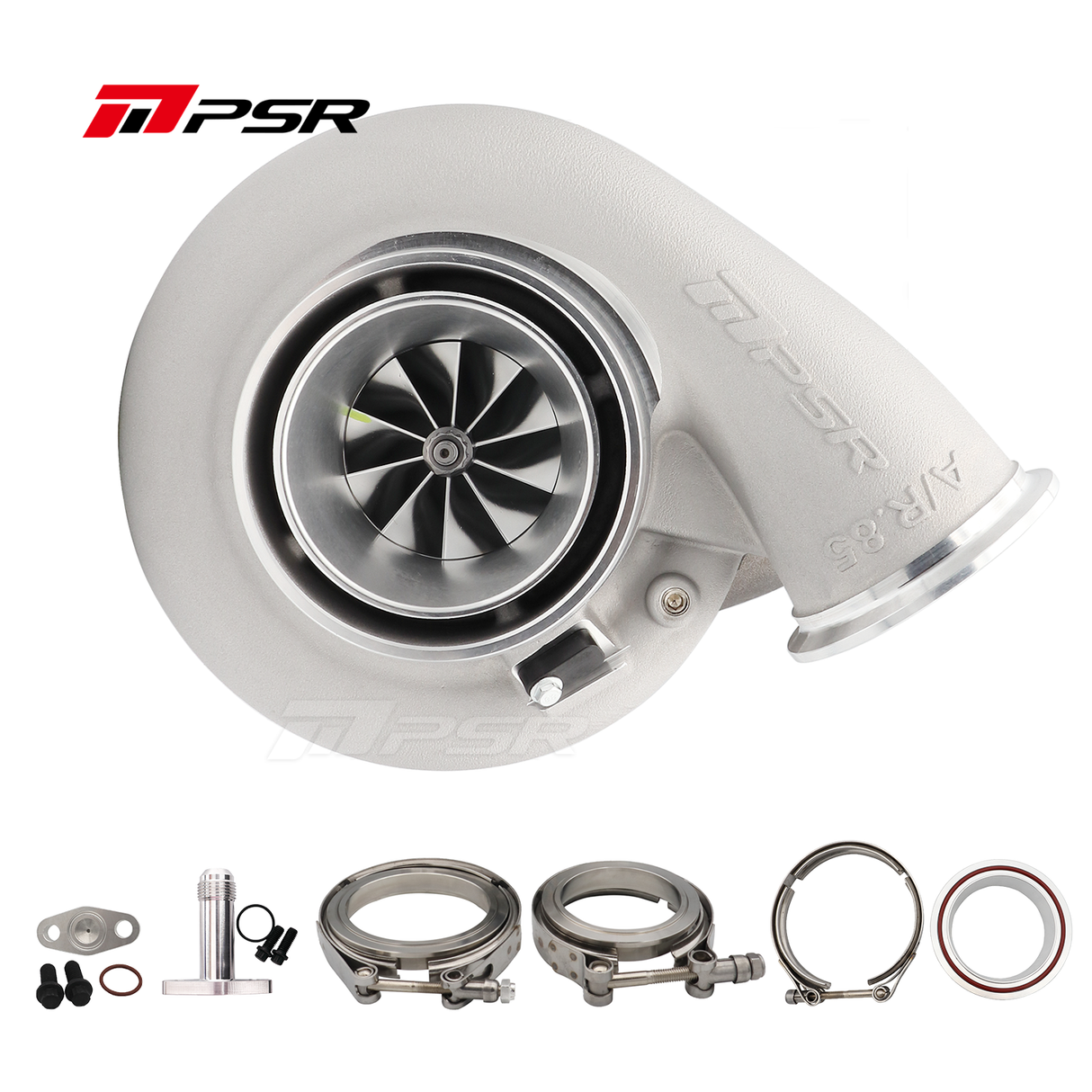

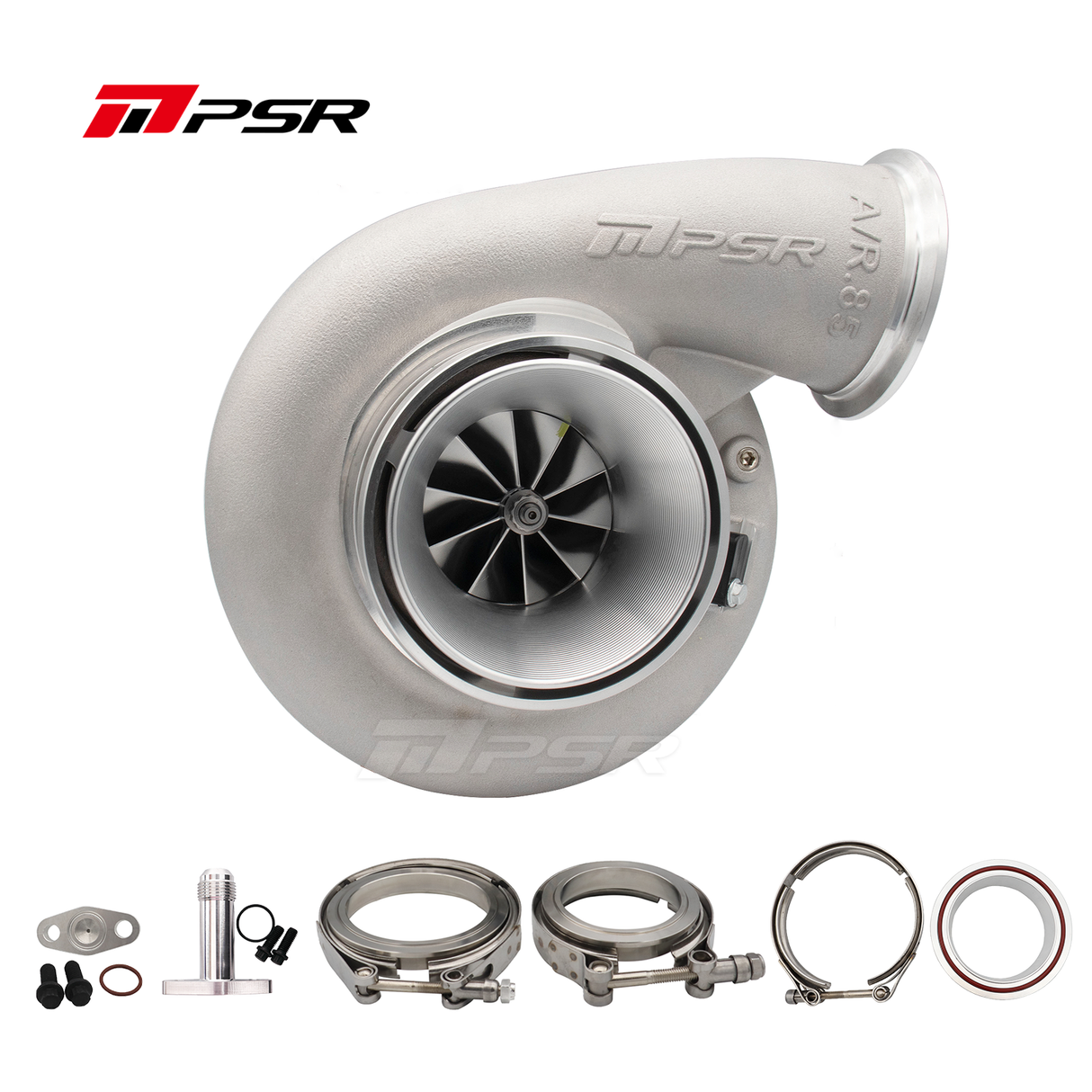

  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

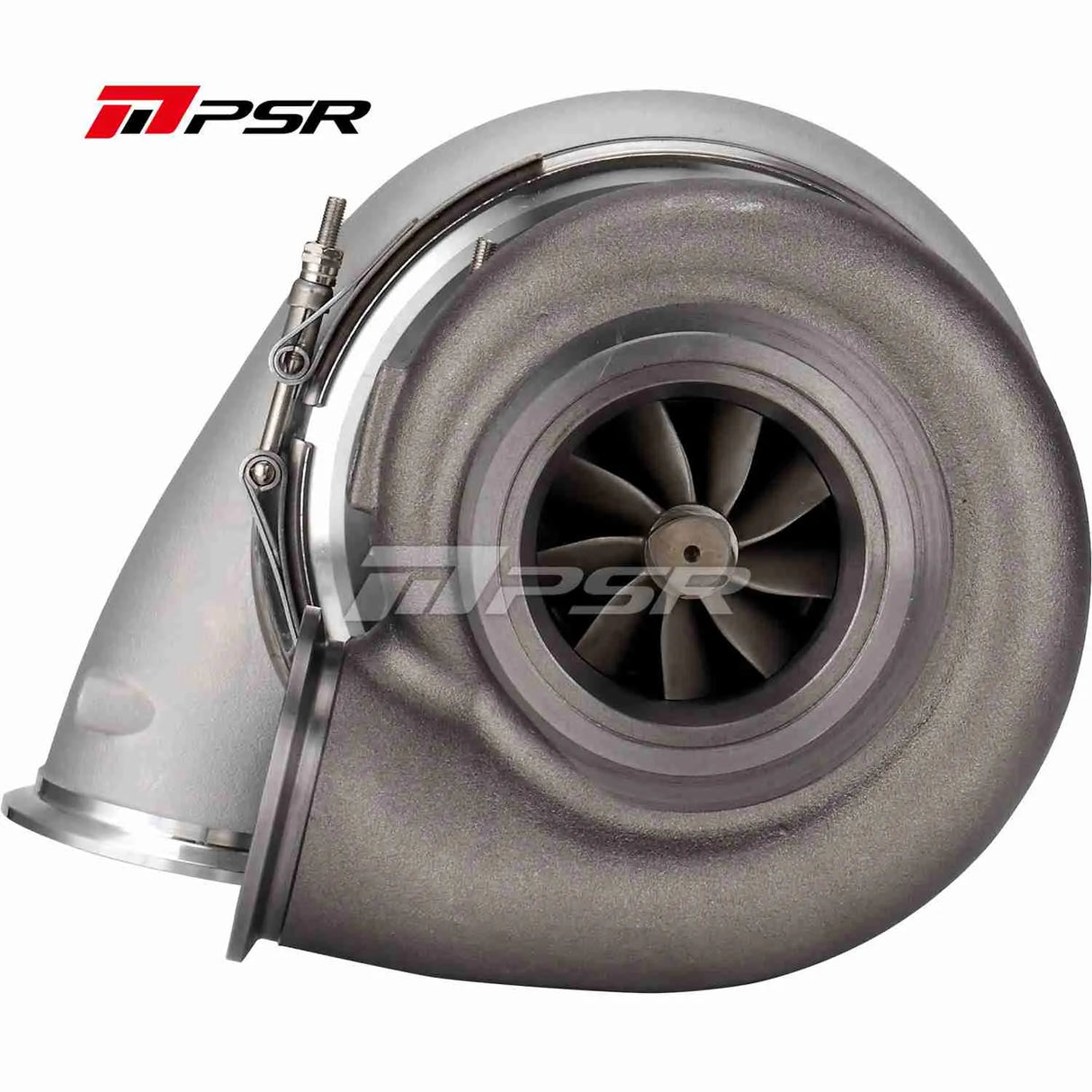

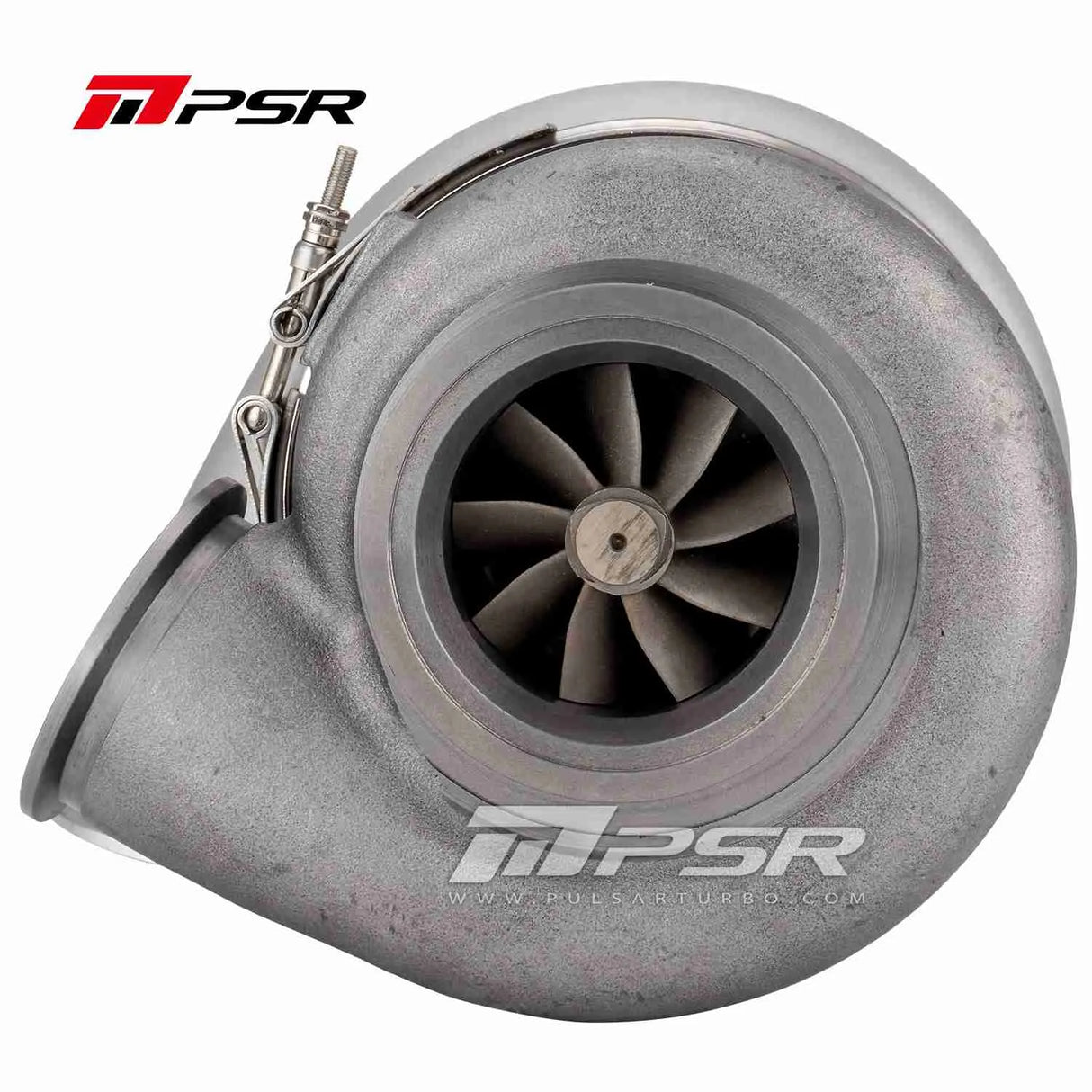

  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • 7 Turbine housing in option

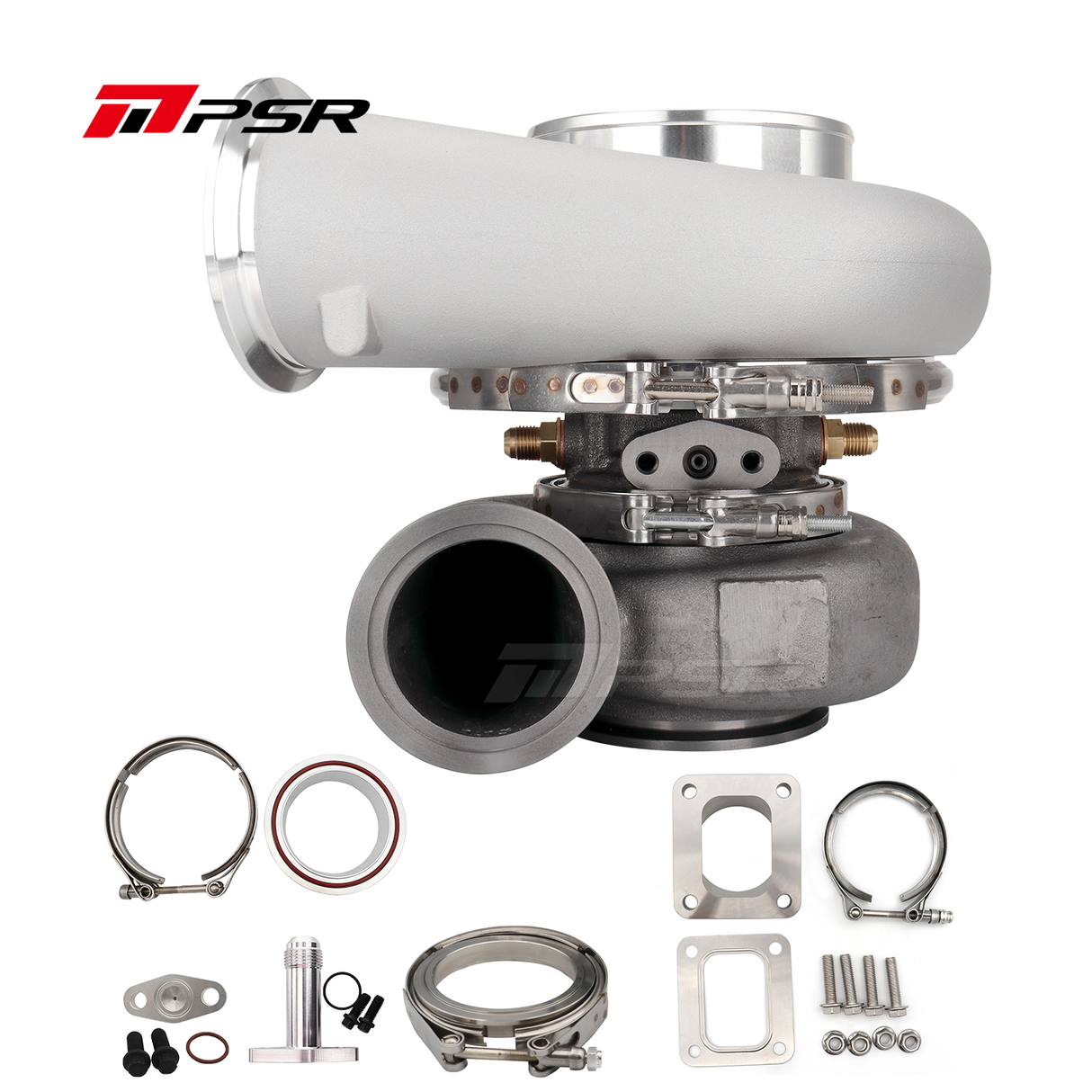

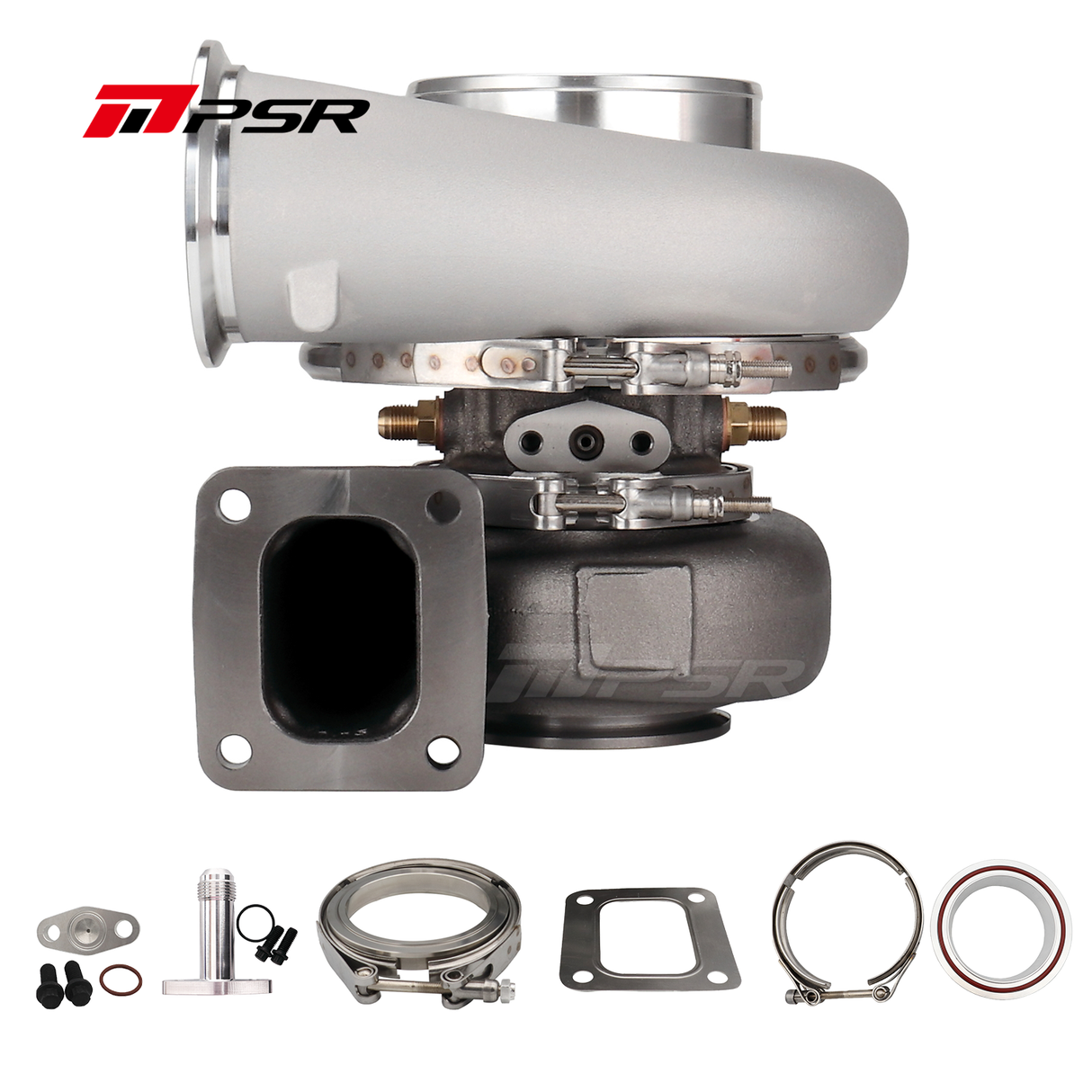

  • Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
  • Oil Feed Fitting needs to be bought separately, check the link if you need it, 🔗

Description:

  • Compressor Wheel: 67*98mm
  • Turbine Wheel: 82*75mm
  • Compressor Inlet: 5″ Hose
  • Compressor Outlet: 3″ V-Band
  • Water Ports: -6AN
  • Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
  • Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

 Turbine housing option:

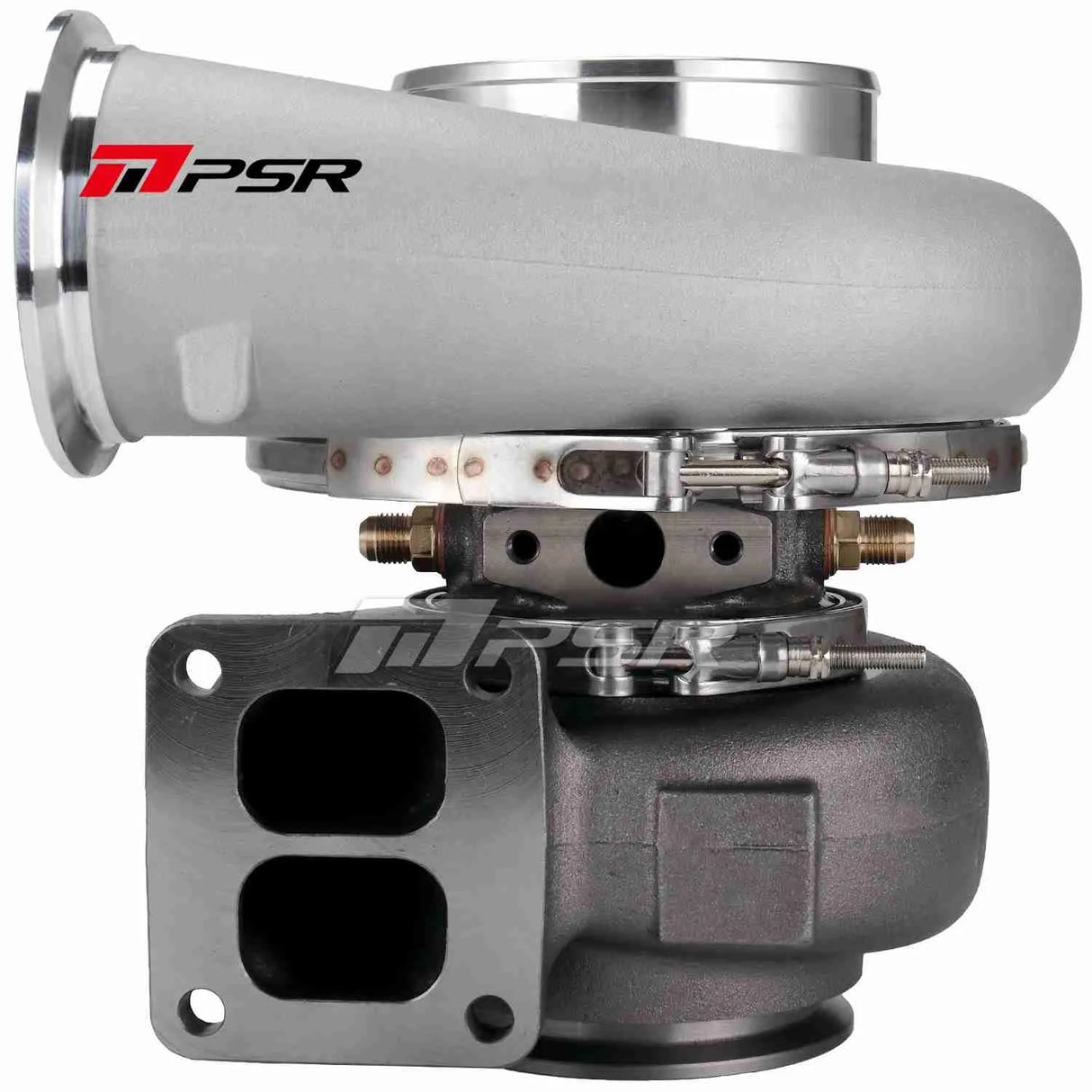

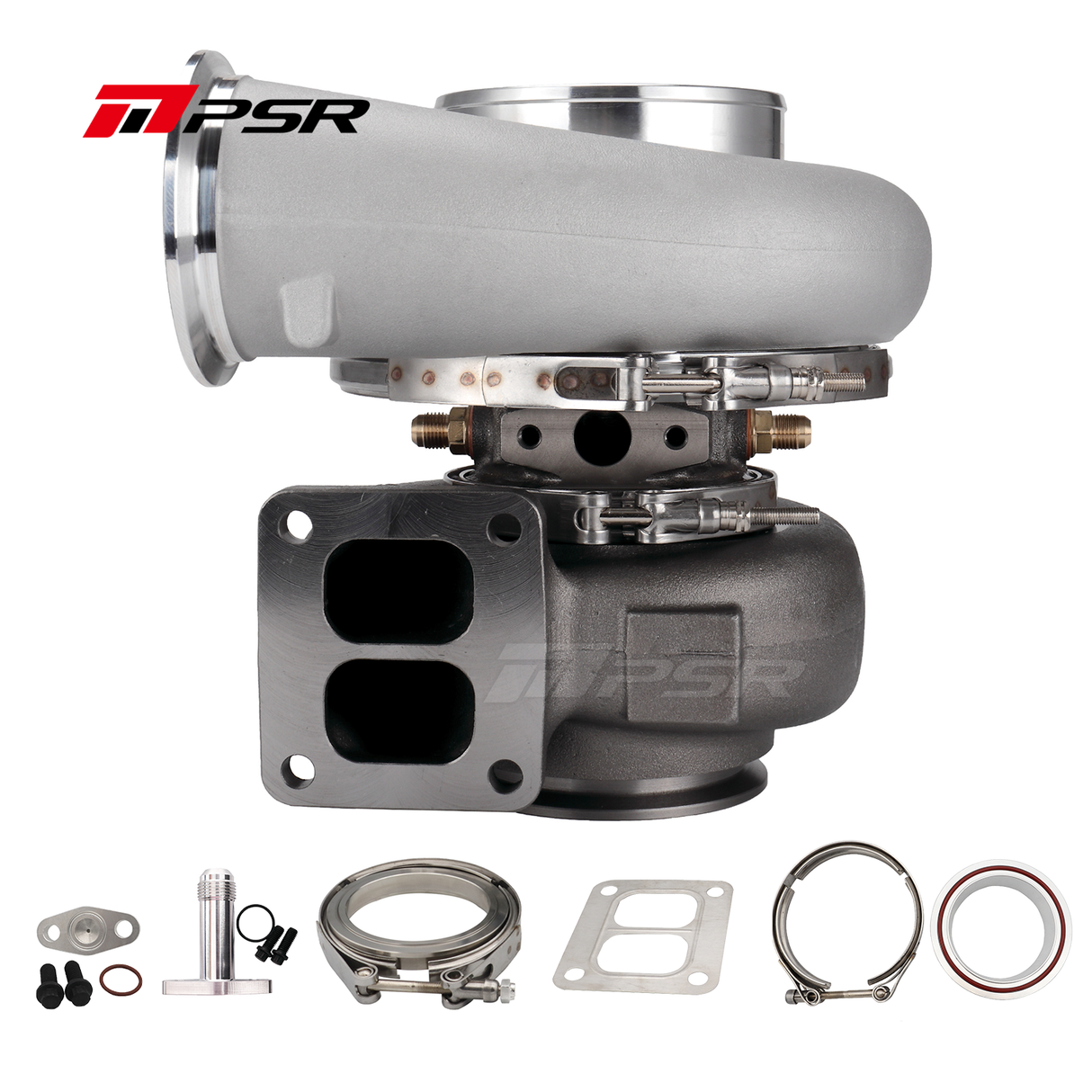

  1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R

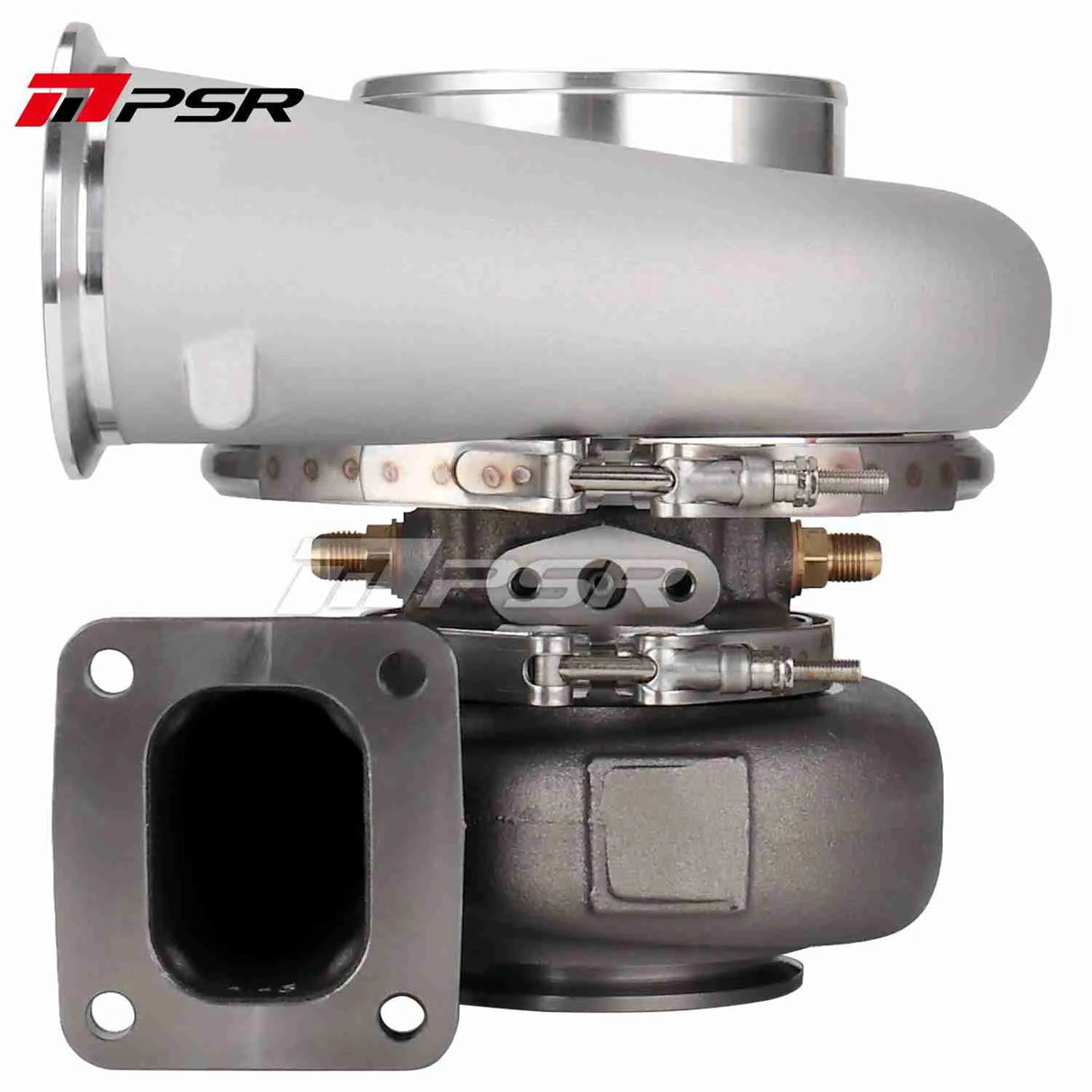

  2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  3. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  4. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R

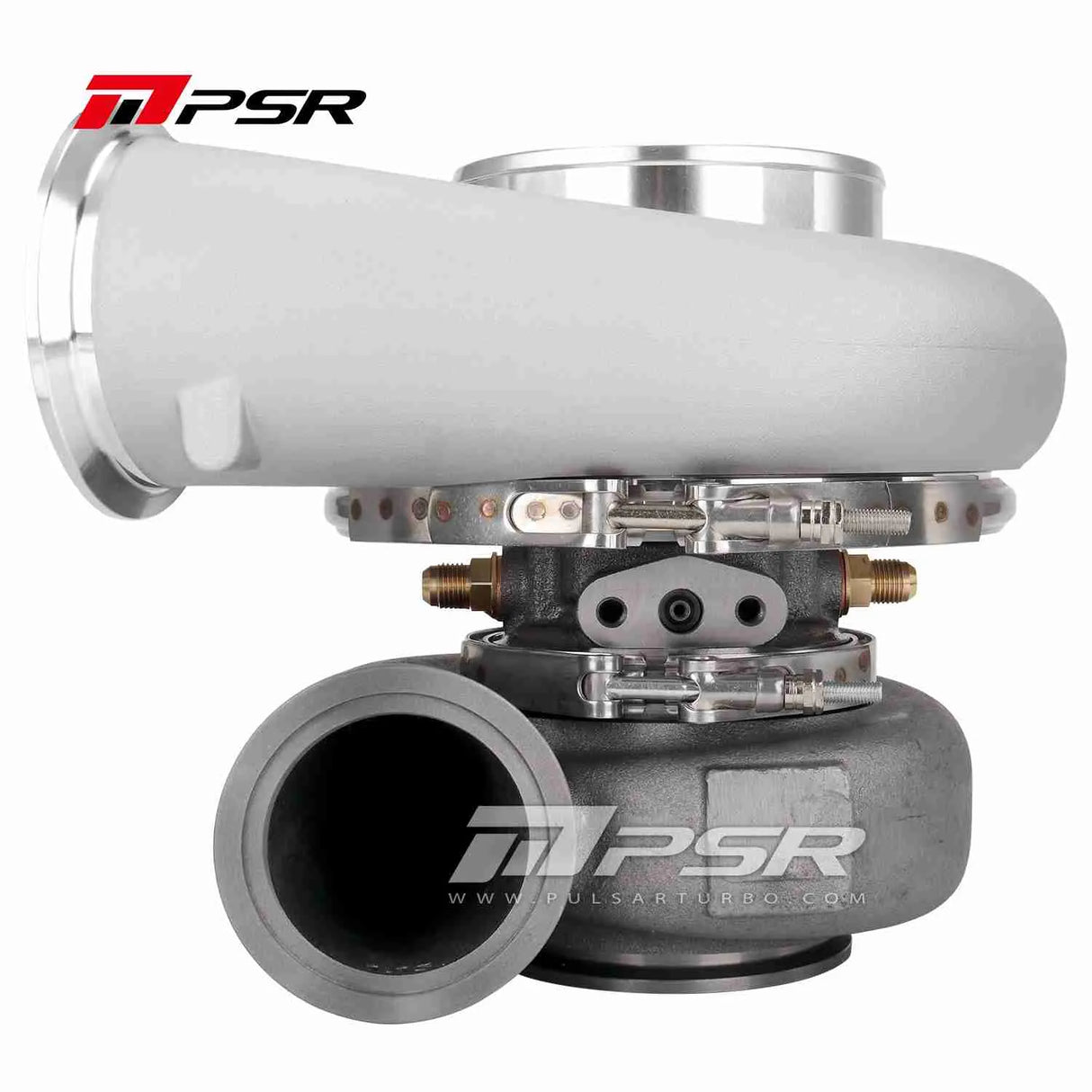

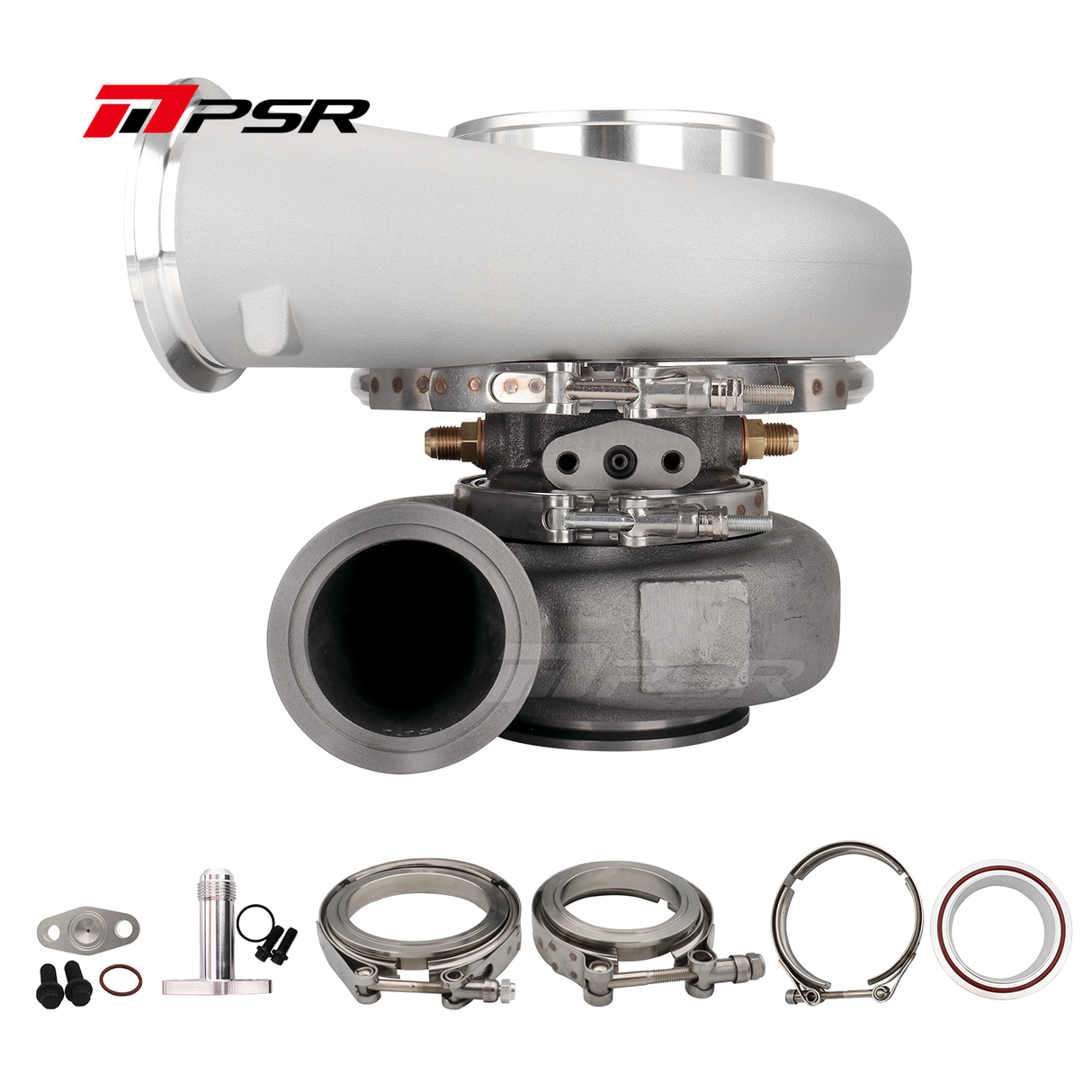

  5. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
  6. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
