Aeroflow Performance  |  SKU: AF9202-325

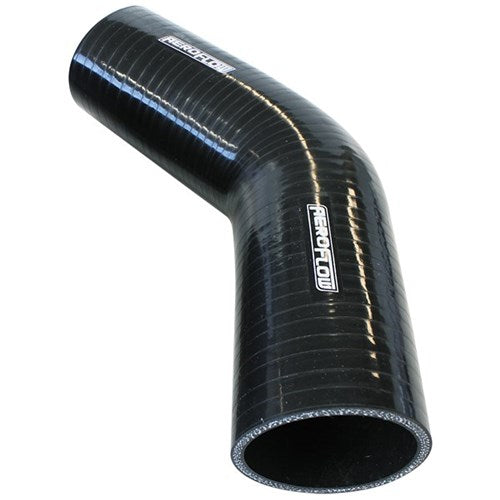

Gloss Black 45° Silicone Elbow Hose 3-1/4" (82mm) I.D 4-Ply, 13/64" (5.3mm) Wall Thickness, 5-45/64" (145mm) Leg

$40.00
Tax included Shipping calculated at checkout.

Description

Aeroflow designs and manufactures premium quality silicone hose for the Performance Automotive Industry, Transport Industry and Industrial applications. Whether it's silicone heater hose, vacuum or high temperature silicone turbo hose, Aeroflow has the right products for your demanding applications.

- 4 Ply hose with a wall thickness of 5.3mm (13/64")
- 145mm (5-45/64") Leg
- Working temperature -60 to +180° C (-75 to +350° F)
- Excellent ply adhesion from the inner core to the outer layers
- Bright gloss Black finish
- Not recommended for use with oil and fuel
- Weather resistance to harsh sunlight, dry conditions and rain water

Note: Leg sizes are approximate and may vary.

Internal Diameter: 82mm
Outside Diameter: 92.6mm
Leg Length: 140mm

Recommended Hose Clamp (Guide Only):
Worm Drive Clamp: AF23-7692
Constant Tension Clamp: AF28-7895 / AF28-7895BLK
T-Bolt Clamp: AF24-9297
