Our +T Turbo Oil Feed Kit is the ideal solution for converting a naturally aspirated Nissan RB, SR, or CA engine to turbocharged. It provides a reliable oil supply to the turbocharger using a clean, factory-style installation – no need to hunt for OEM turbo parts or modify existing fittings.

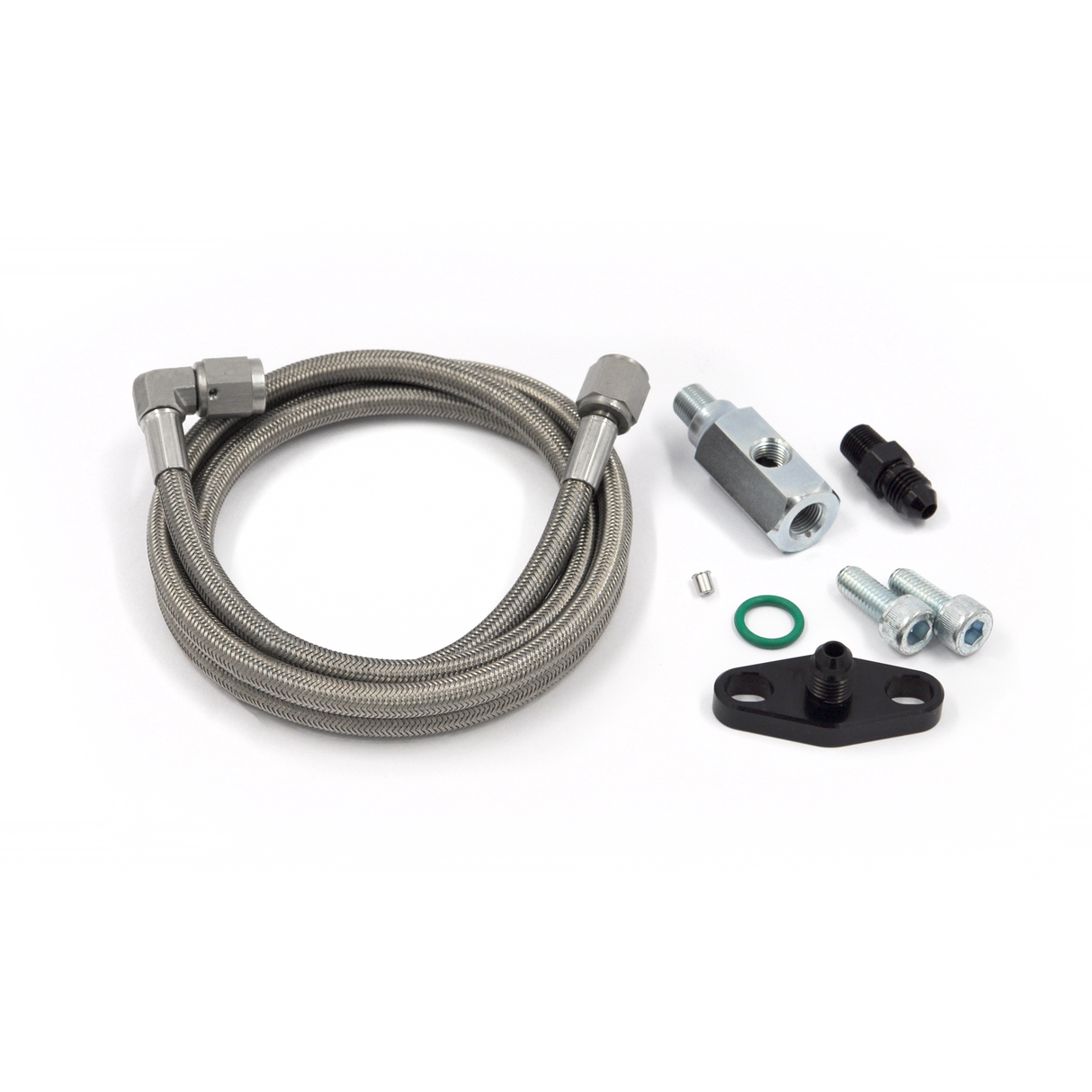

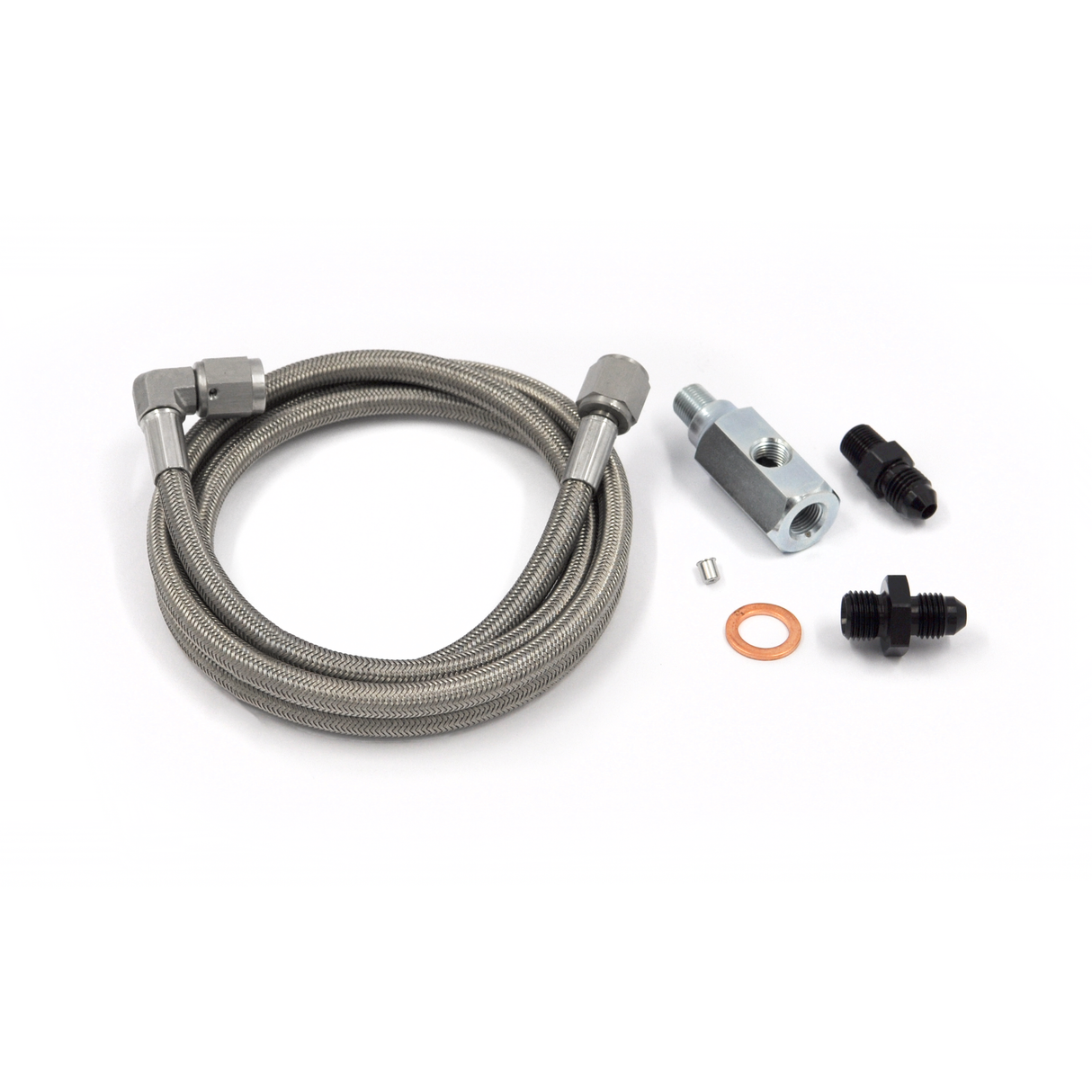

Kit Features:

• High-quality stainless steel 4AN braided Teflon hose

• Precision CNC-machined billet aluminium adapters

• Custom Franklin Performance oil tee fitting - replaces the factory oil pressure switch and provides ports for both the pressure switch and turbo oil feed

• Turbo fitting options: 38-40mm slotted 2-bolt flange or M12x1.25 adaptor

• Suitable for +T setups on RB20DE, RB25DE, SR20DE, CA18DE and other non-turbo engines

• Anodised fittings for corrosion resistance and long life


• Custom billet oil tee fitting with 1/8” BSP and 1/8” NPT ports


• Crush washers and/or sealing o-rings where required

• Optional 1.4mm oil restrictor fitting

Our custom-designed tee fitting allows you to retain the BSP threaded factory oil pressure switch while cleanly adding a turbo oil feed – a common problem area on +T builds. This kit is ideal for engine conversions and DIY turbo setups.
