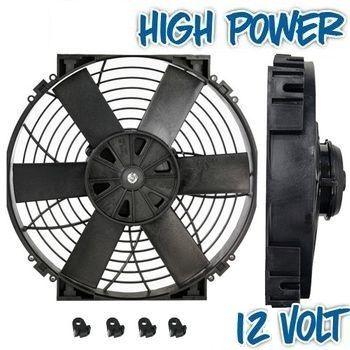

Davies Craig, 12" High Power Electric Fan, Push / Pull Model, (12V) DC-0155

All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

A Davies Craig Thermatic® Fan is suitable for both condenser and radiator cooling.

Thermatic® Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

SPECIFICATIONS
Fan Diameter (in): 12.000 in.
Fan CFM Range: 1250
Amp Draw: 22 amps

Height (mm): 293mm.
Width (mm): 292mm
Thickness (mm): 86mm
Number of Blades: 6 blades

Blade Material: Nylon
Blade Color: Black
Shroud Color: Black
Shroud Material: Nylon


UNIVERSAL FAN FITTING KIT'S (sold separately)

 SINGLE FAN MOUNTING HARDWARE KIT (12V) 1000

 SINGLE FAN MOUNTING HARDWARE KIT (24V) (1001)

 DUAL FAN MOUNTING KIT - UNIVERSAL 12V (1002)

 DUAL FAN MOUNTING KIT - UNIVERSAL 24V (1003)

 FAN & TRANS OIL COOLER MOUNTING HARDWARE (UNIVERSAL) (0578)


The Davies, Craig Universal Fan Fitting Kit above include all parts necessary for mounting and wiring any 12- and 24-volt electric fans.
