R35 GTR Ignition Coil Pack Conversion Kit for 1JZ-GTE & 2JZ-GTE motors. (Suits VVTi and Non VVTi motors)
Looking for an upgraded coil pack for your 1JZ or 2JZ? Then look no further, the R35 GTR coils can support 250hp+ per coil, that's 1500hp+ capable!
Our kit is a bolt on kit and comes with everything needed to install. Our kit even allows you to keep your coil pack cover installed.
The bracket is machined from 6061-T6 aluminium for strength and anodised gloss black to protect against corrosion. All bolts and washers are stainless steel.
This kit comes with Genuine Hitachi Coils.
What sets us apart from the rest?
We use OEM style coil boots, this means a perfect seal onto and around the spark plug. No bending of the metal pipe at rear of the motor. We have custom made springs inside our coil boots, this means you don't need to cut and modify the standard springs which can cause issues if not done properly... We also use all the mounting points on the head for extra security.

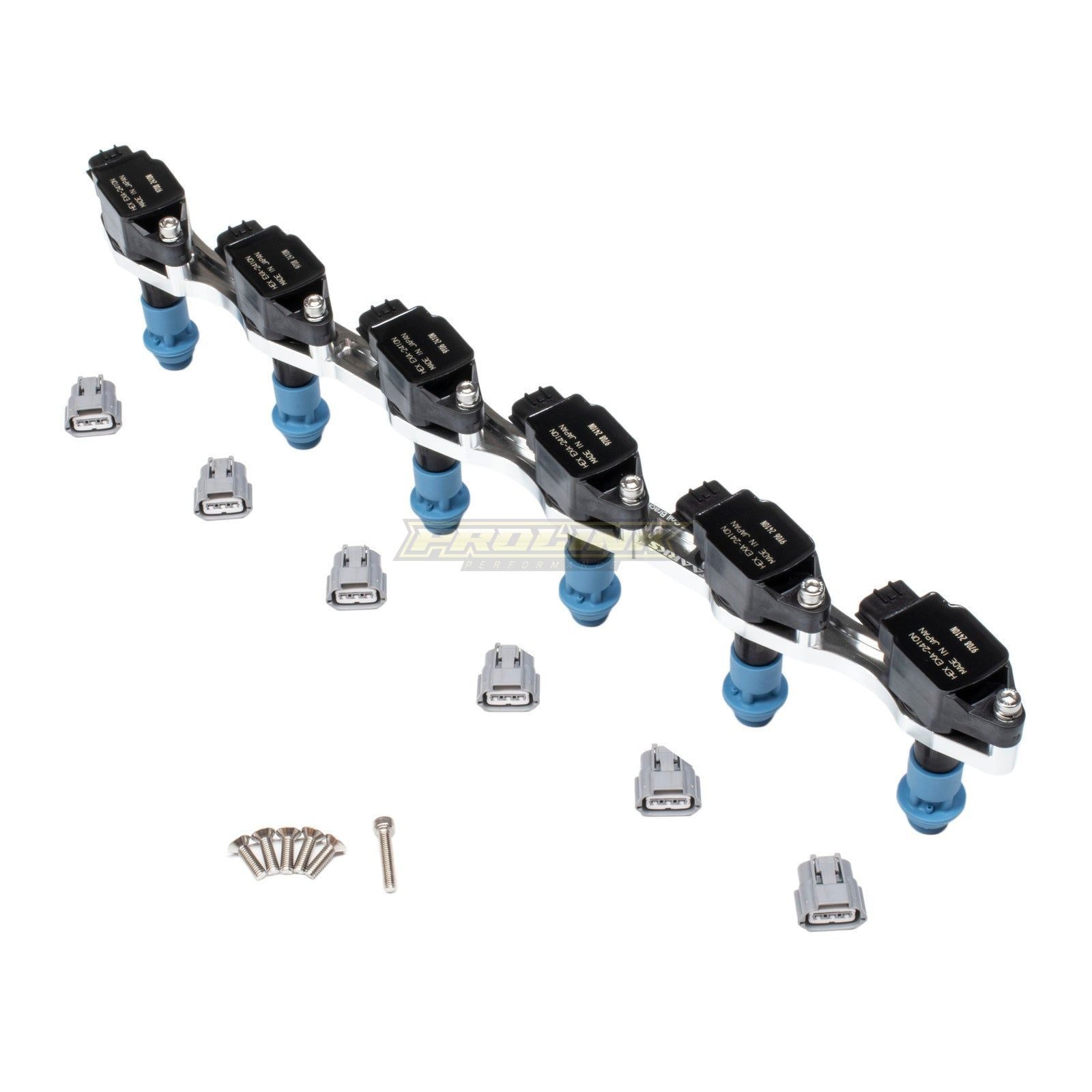

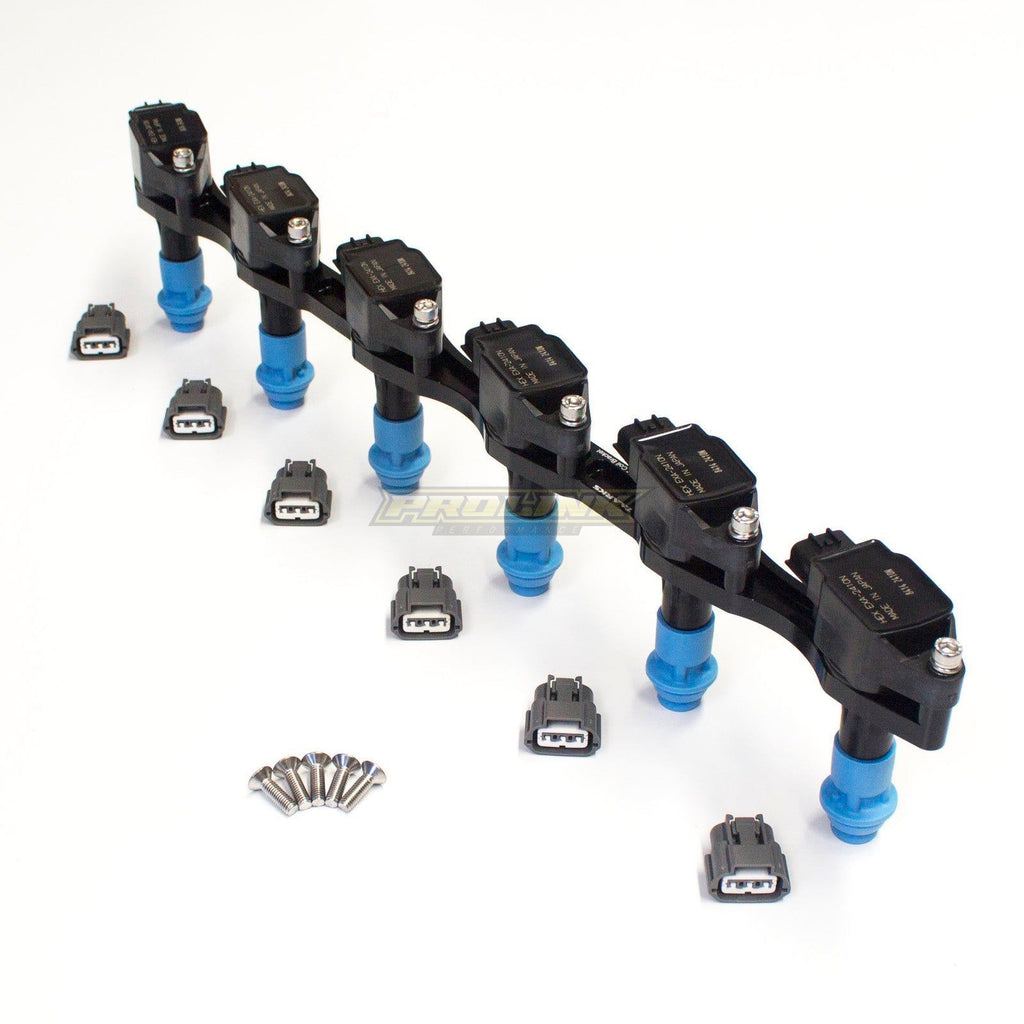

Kits includes:

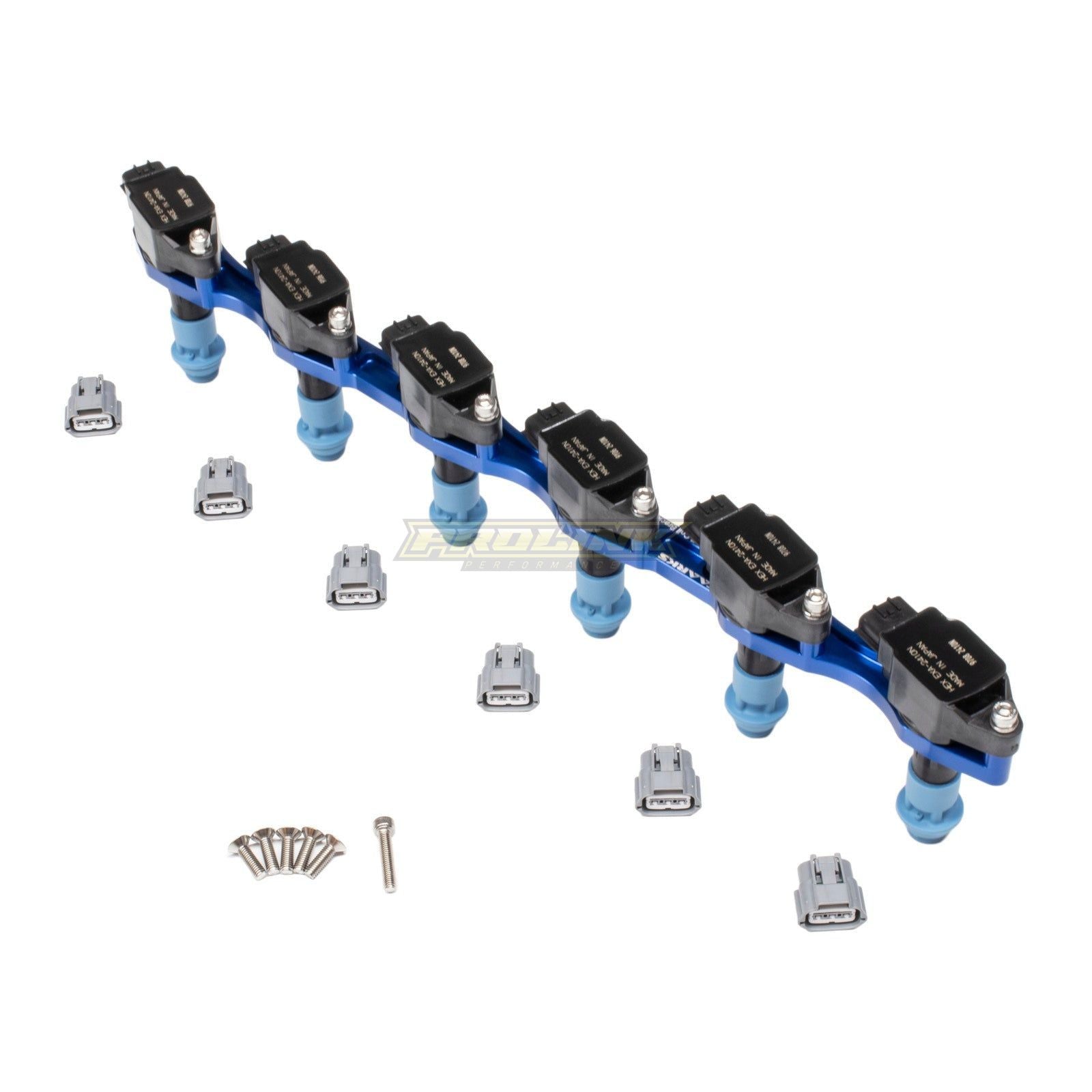

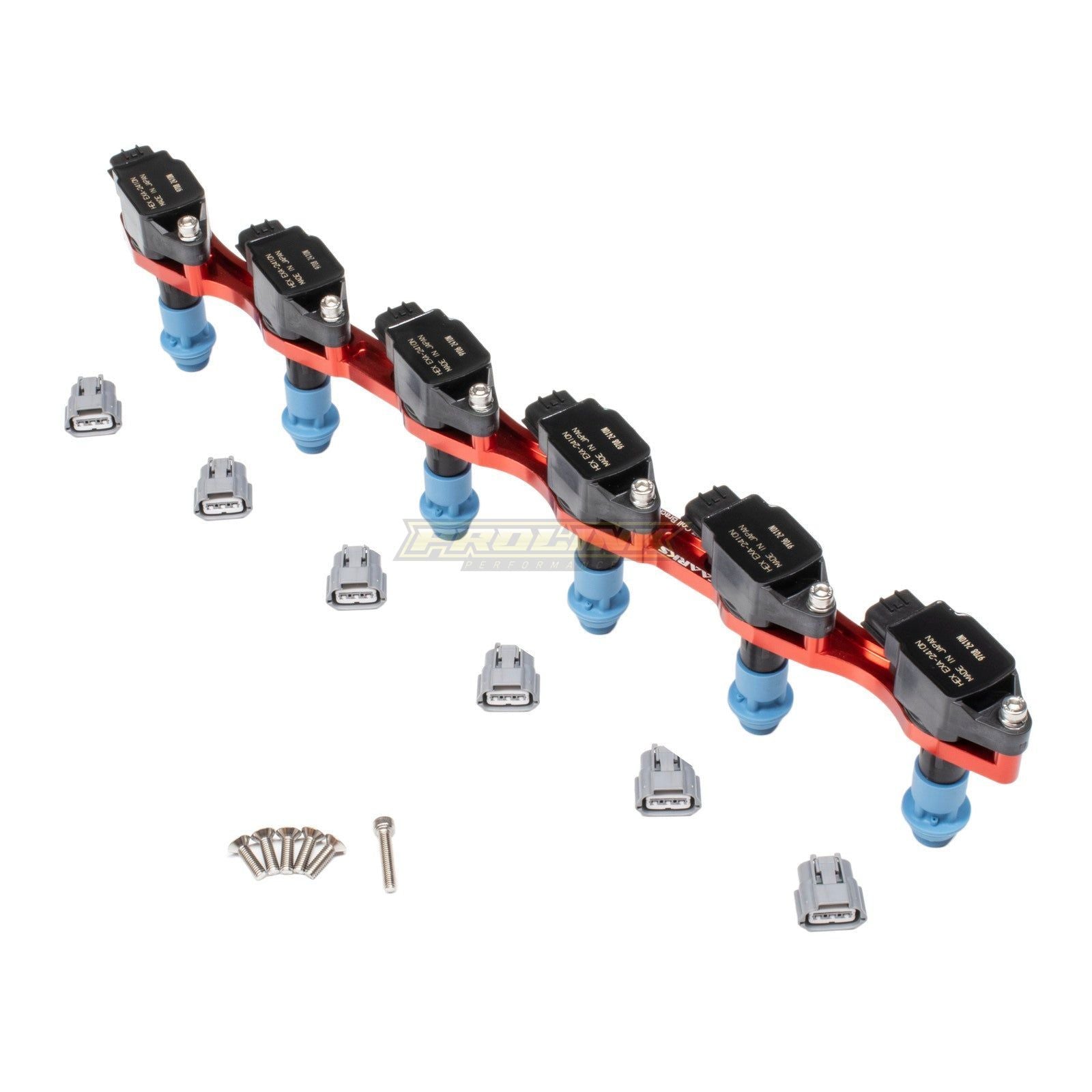

- 1x Billet Coil Bracket (Choice of Black, Blue, Purple, Red, Silver, Green)
- 6x R35 GTR Coil Packs (Hitachi)
- 6x Coil Connectors, Terminals & Wire Seals
- 6x Ignition Coil Boots
- 1x Hardware Kit
- 1x Dielectric Grease
Due to the custom parts required we do not sell the bracket individually GTR coils in pure standard form will NOT suit this bracket!.
Application:
Suits Toyota 1JZ-GTE Engines
Suits Toyota 2JZ-GTE Engines
Notes:
This kit requires the use of an aftermarket ECU capable of running sequential ignition. DO NOT RUN THIS KIT IN WASTED SPARK.
This kit requires a custom coil pack harness to be made up using the supplied electrical connectors.
