Approx 4-5 day lead time
AF90-1009

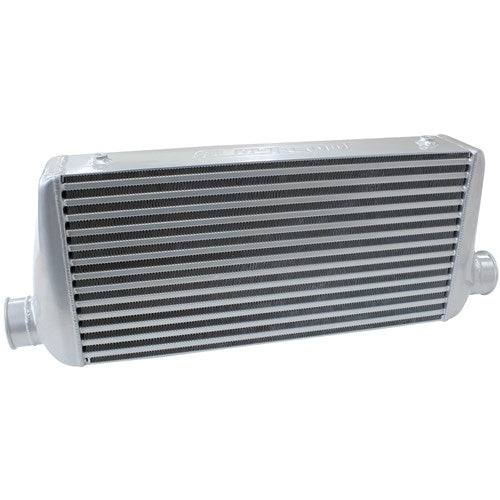

600x300x100mm Race Series Aluminium Intercooler, Silver Powder Coated Finish
3" Slip On Inlet and Outlet with 4 M8x1.25mm Mounting Bosses
The Aeroflow Performance race series intercoolers provide the best cooling capacity, while safely increasing horsepower to provide street and race proven performance no matter the application. The tube and fin core are a straight through low restriction design for less pressure drop, resulting in higher flow and reduced lag time. With end tanks constructed from 5052 sheet aluminum for extreme durability which improves heat transfer. It has the highest thermodynamic dissipative process which will efficiently reduce intake air temperatures, while significantly improving engine output.
They are currently available in a 600mm x 300mm x 100mm with 76mm (3") inlets and outlets that have a raised lip for securing silicone hose. Each intercooler features four female M8 x 1.25mm mounting bosses and are available in silver or black powered coated finishes.
Overall Measurements:
Length: 820mm
Thickness: 112mm
Height: 300mm
Mounting Holes, Centre to Centre: 500mm
