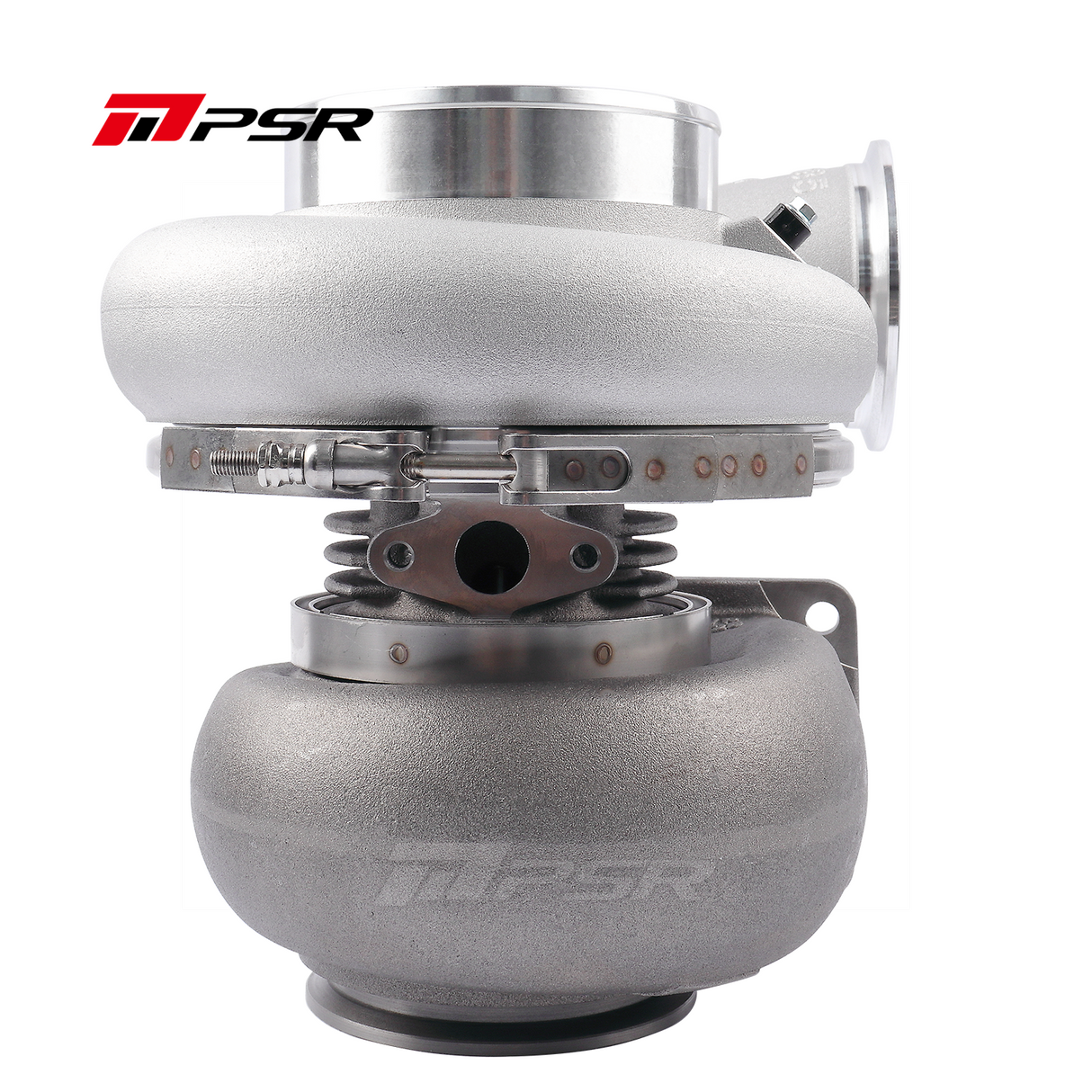

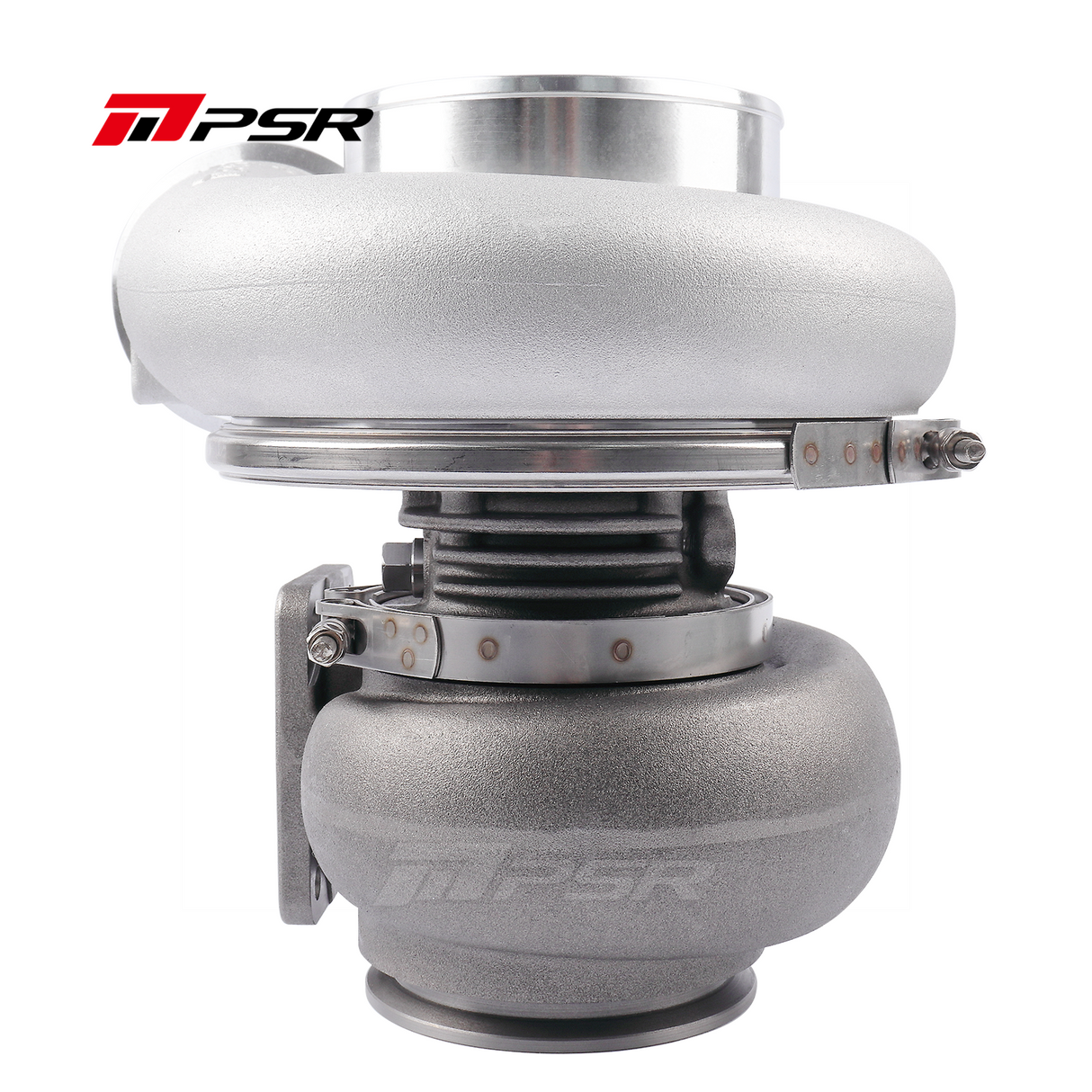

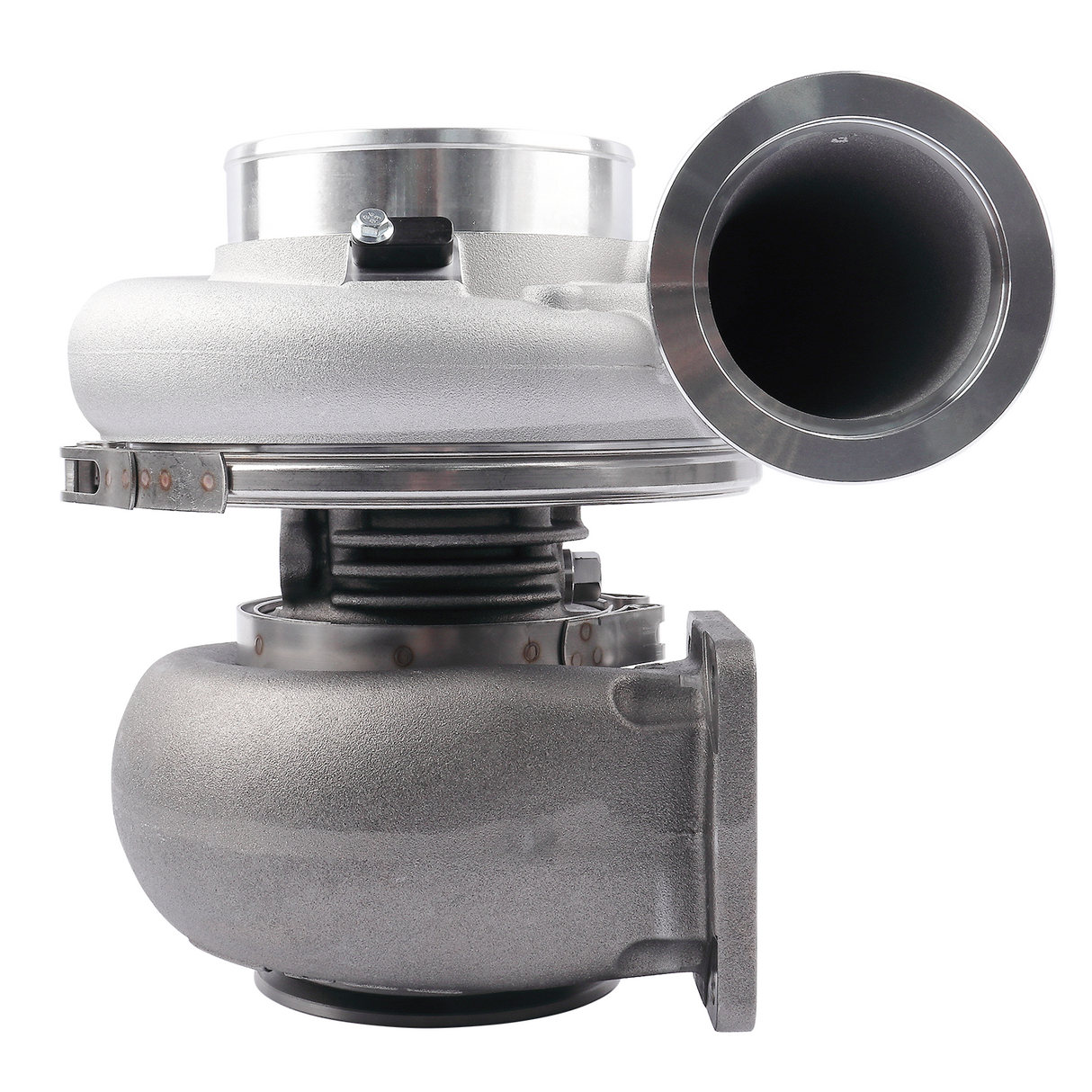

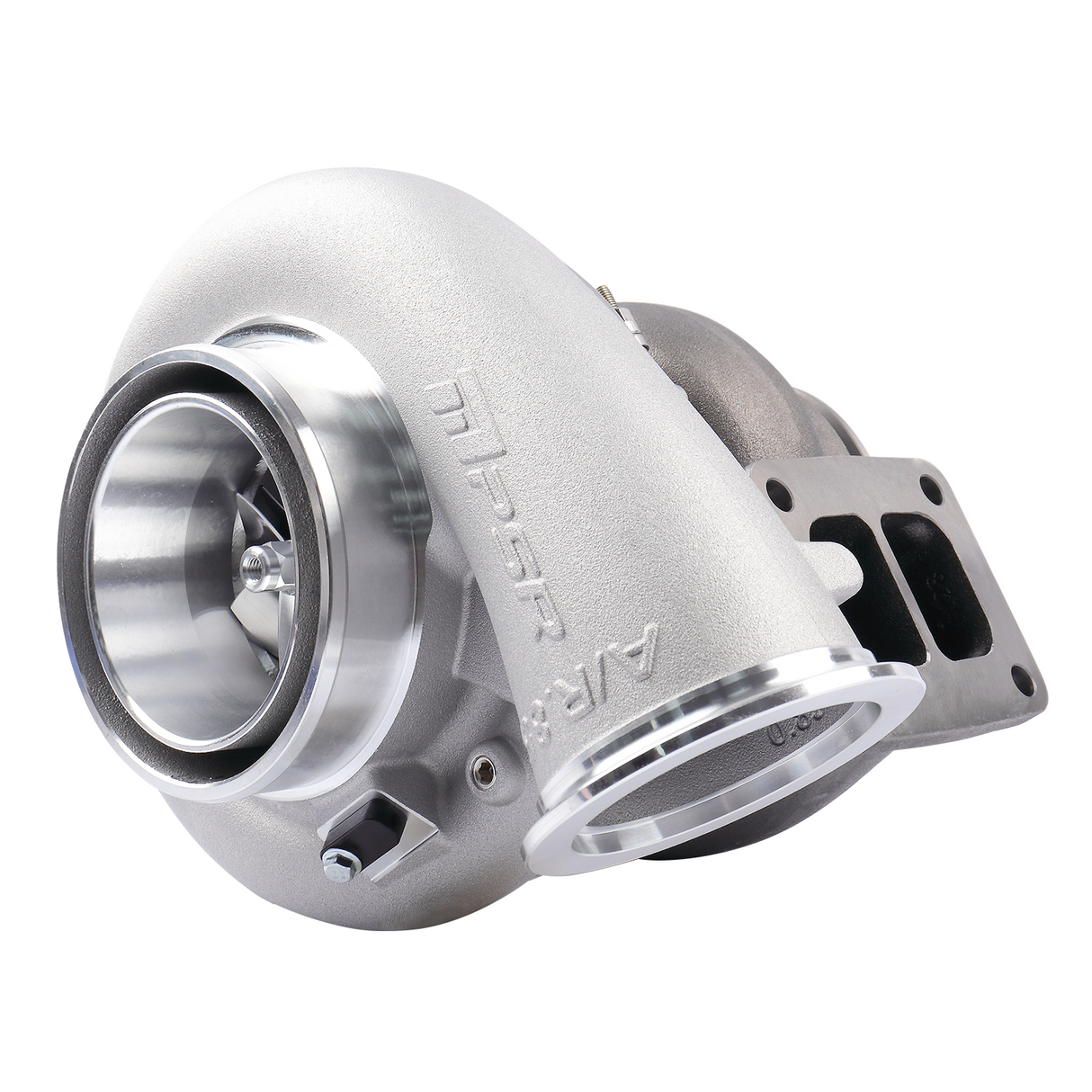

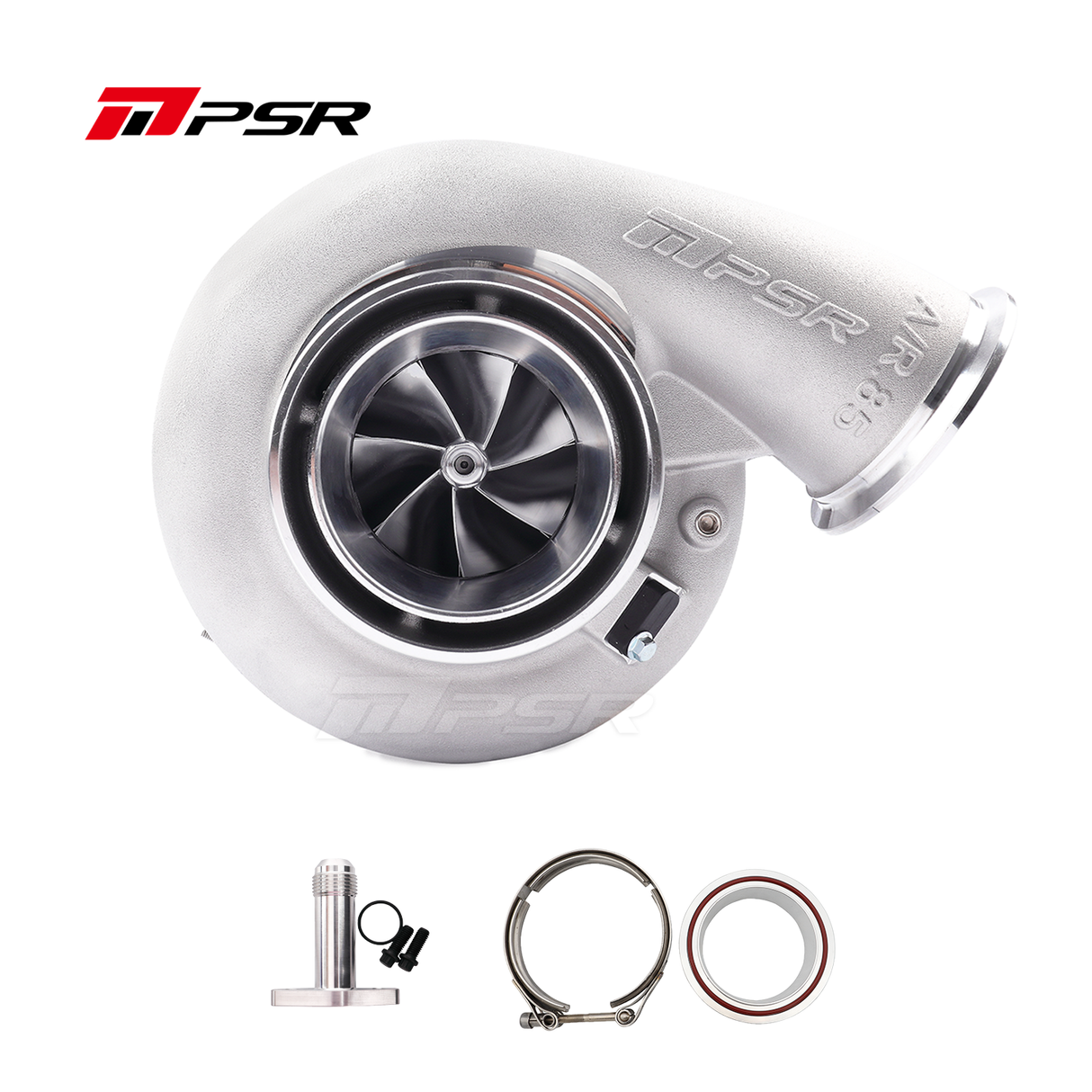

7685E Ball Bearing Turbo UP to 1500HP
$2,508.73
$2,951.45
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
7685E Ball Bearing Turbo UP to 1500HP - Please choose / Please choose is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
7685E Ball Bearing Turbo UP to 1500HP
From
$1,903.18
$2,239.03
Unit price
/
Unavailable
Description
Description
- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 11 Blade Turbine Wheel

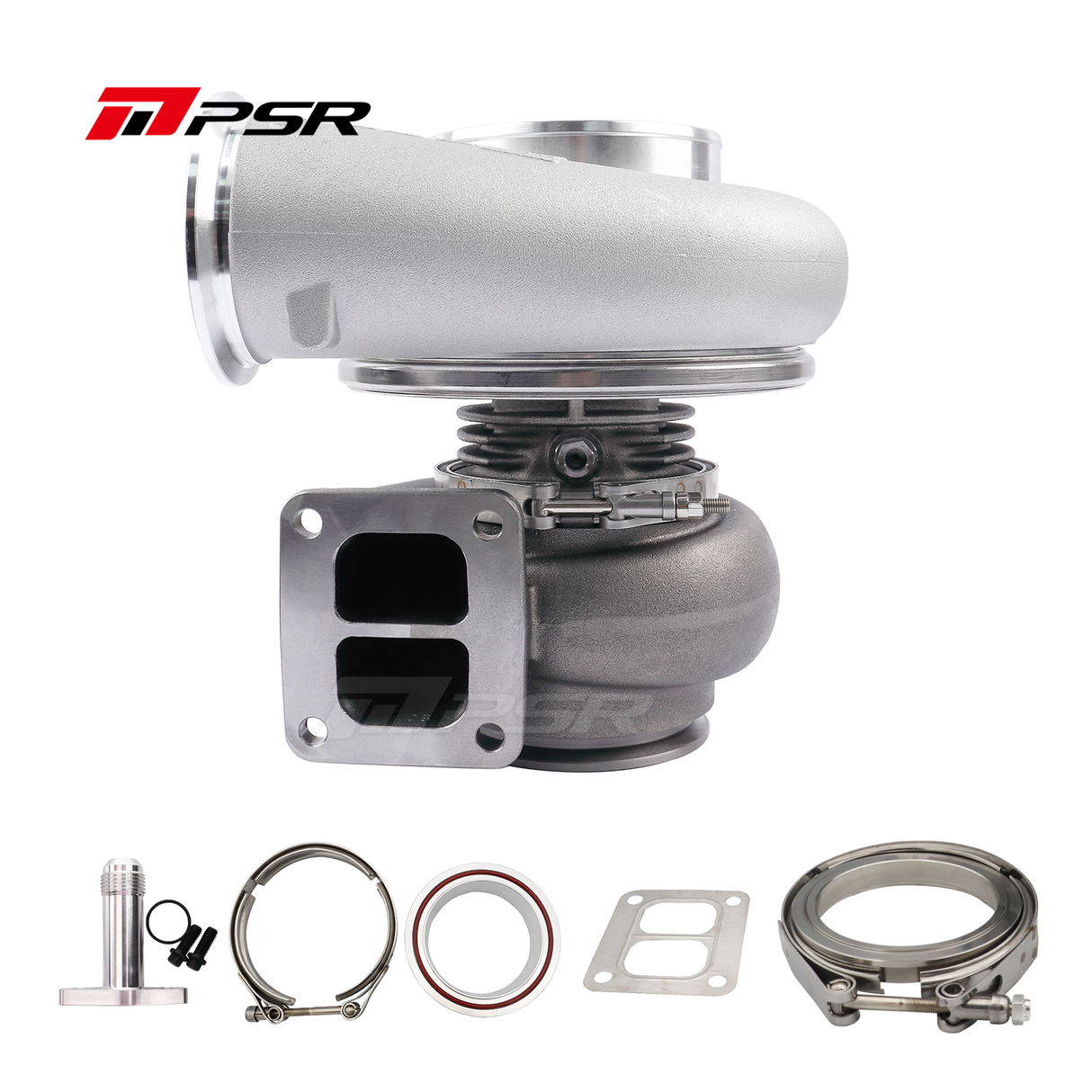

- T4 divided and V-Band In/out are available in turbine housing option
- Vband Flange kit for the exhaust housing included
- Max Engine Horsepower: 1500
Description
- Billet Compressor Wheel: 76x 102.4mm, 7+7 Blade

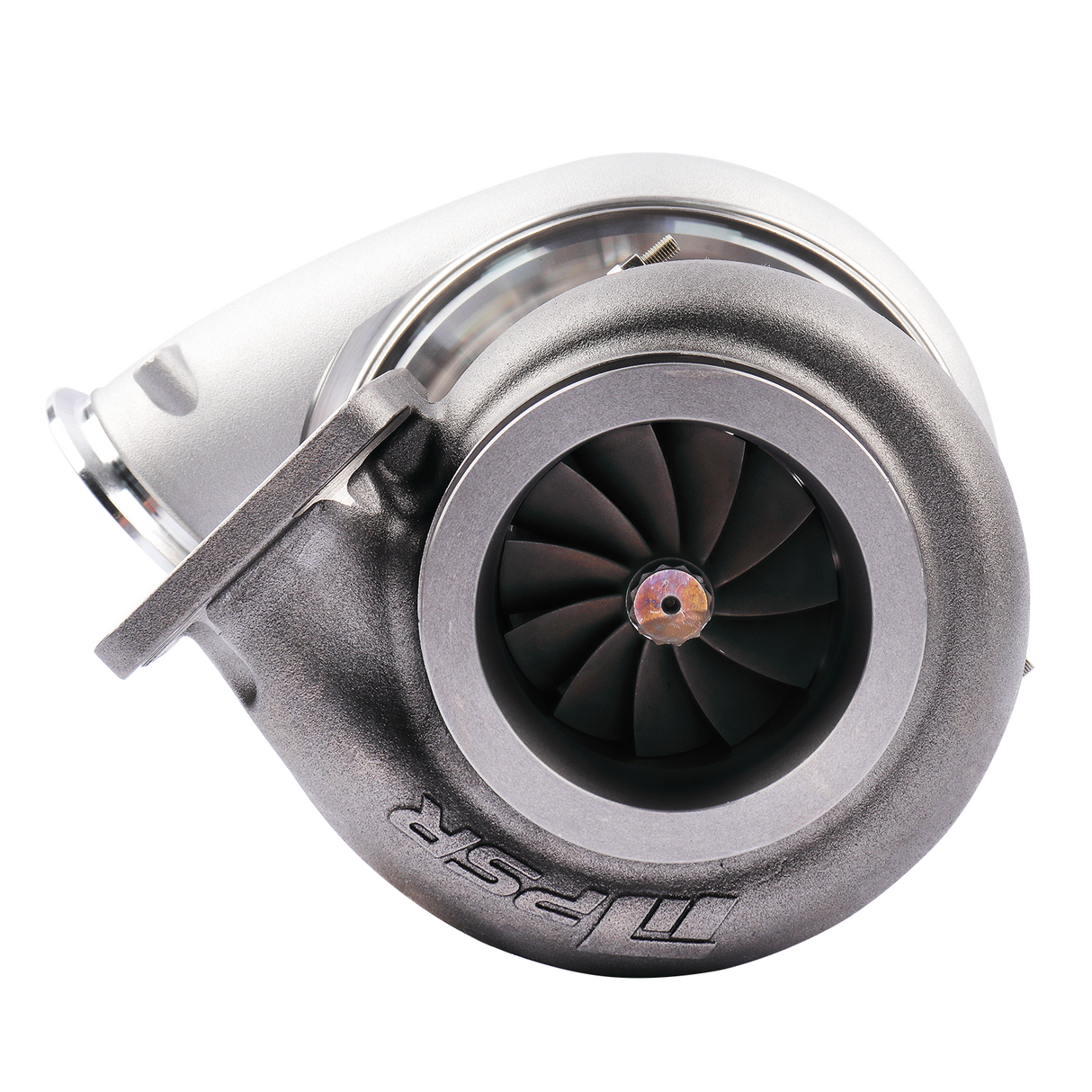

- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

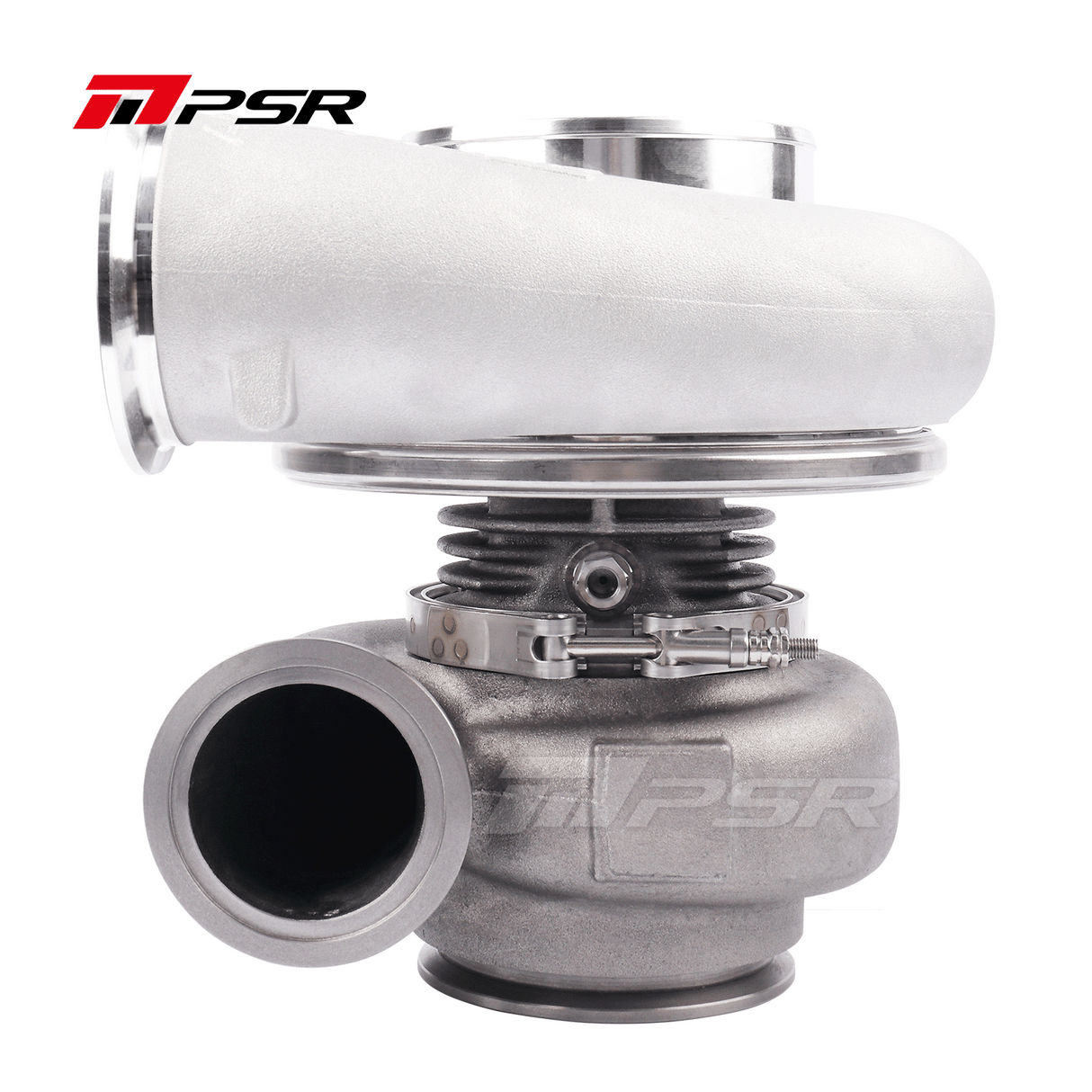

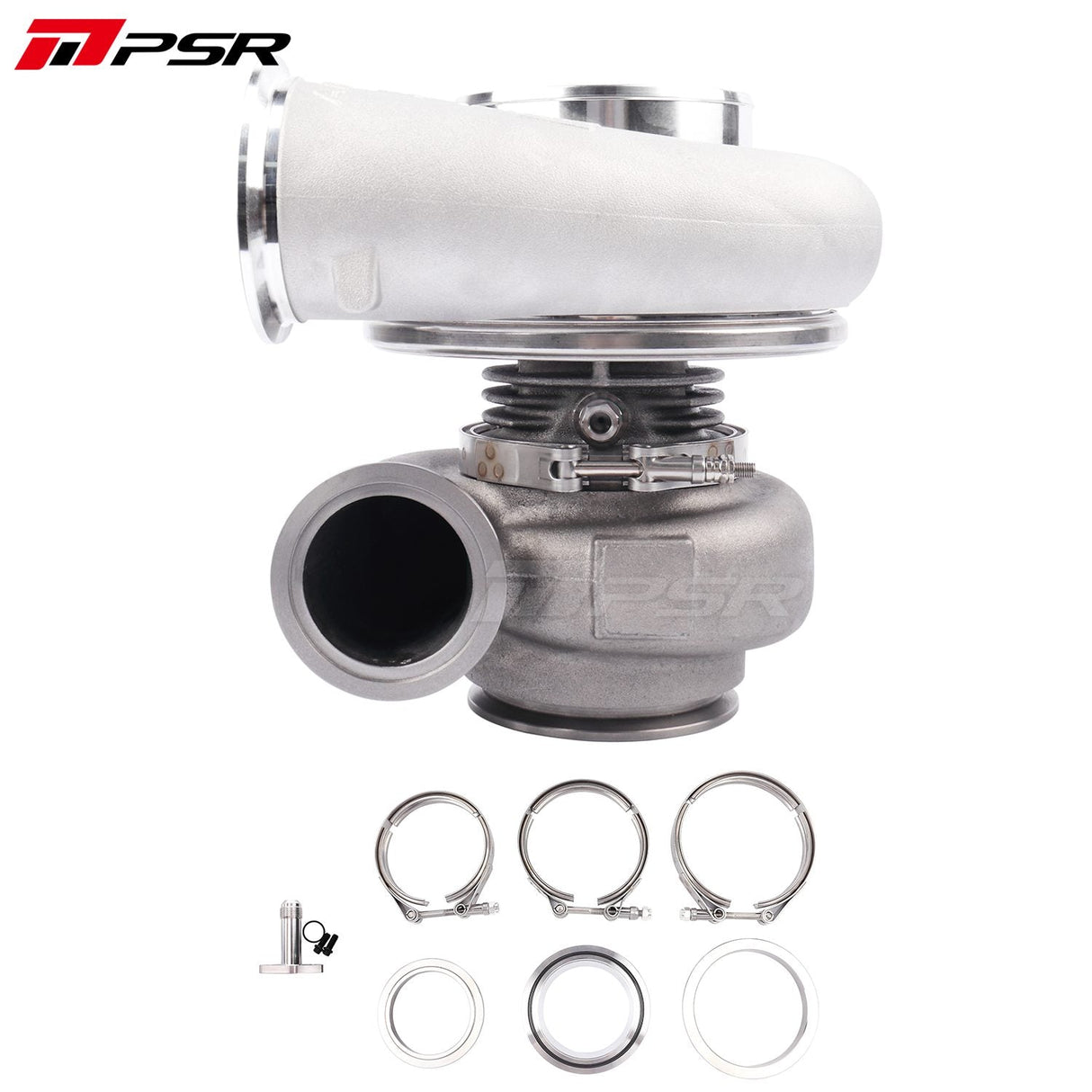

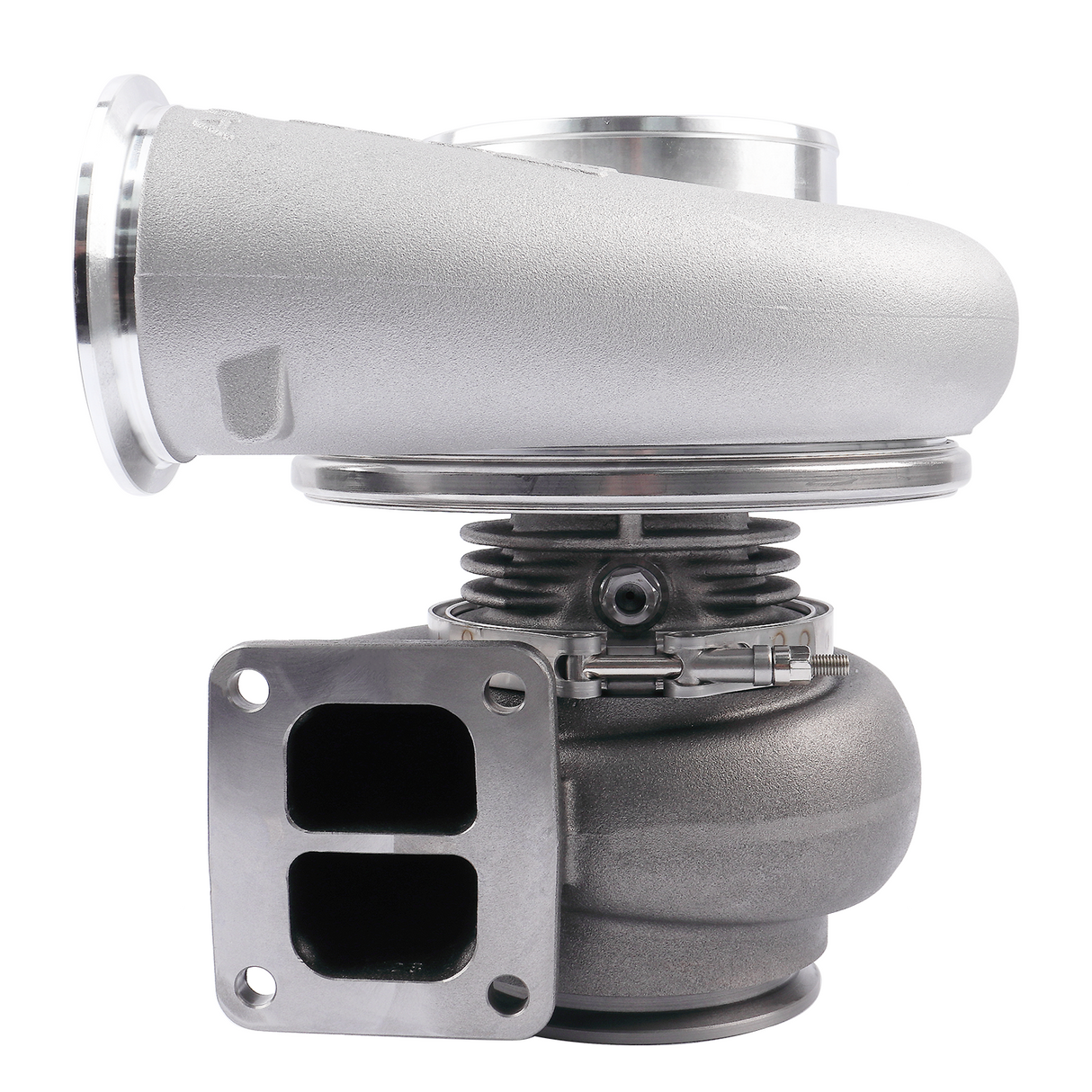

- Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF (Drawing)
- Oil Drain: -12AN
