Pulsar Turbo Systems New Zealand

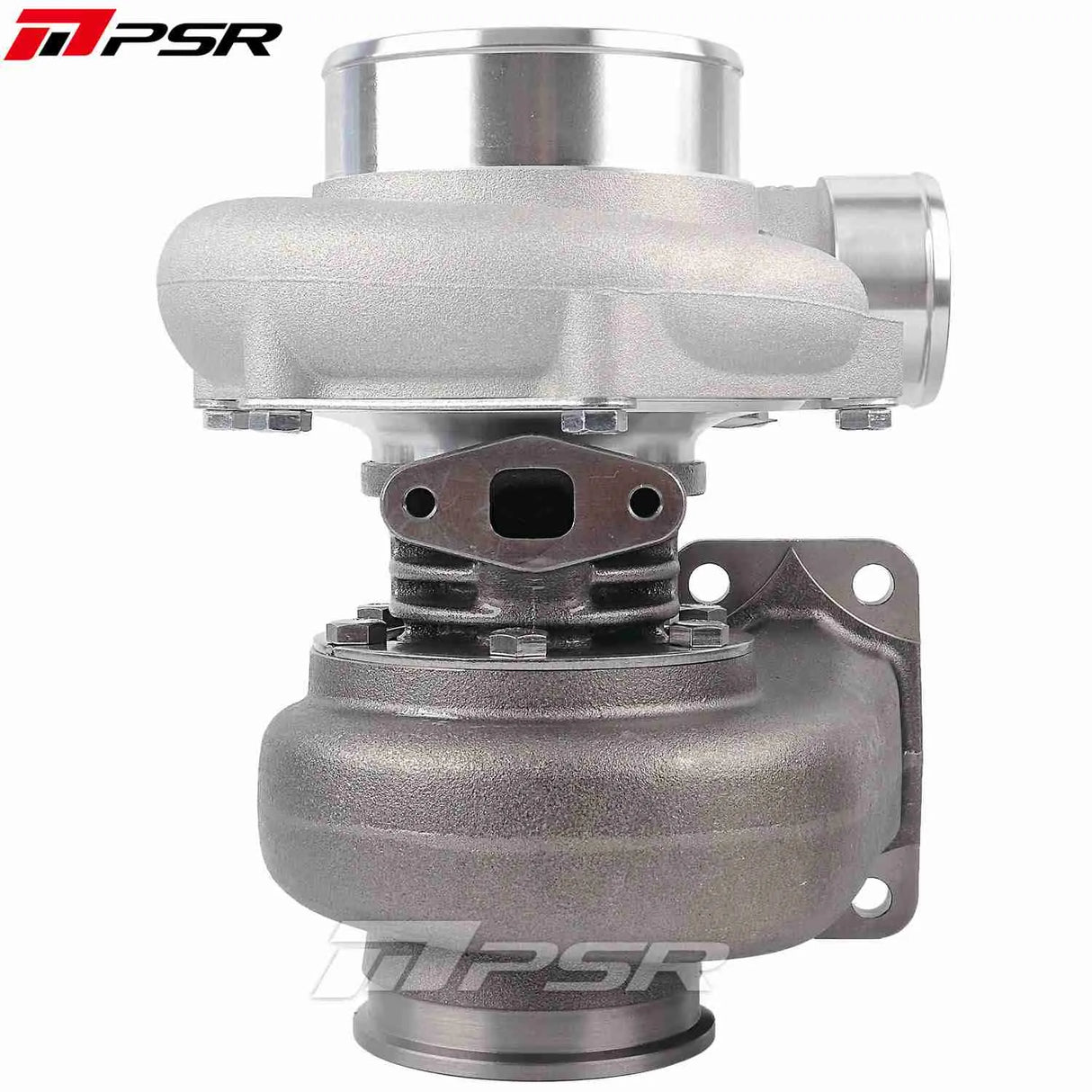

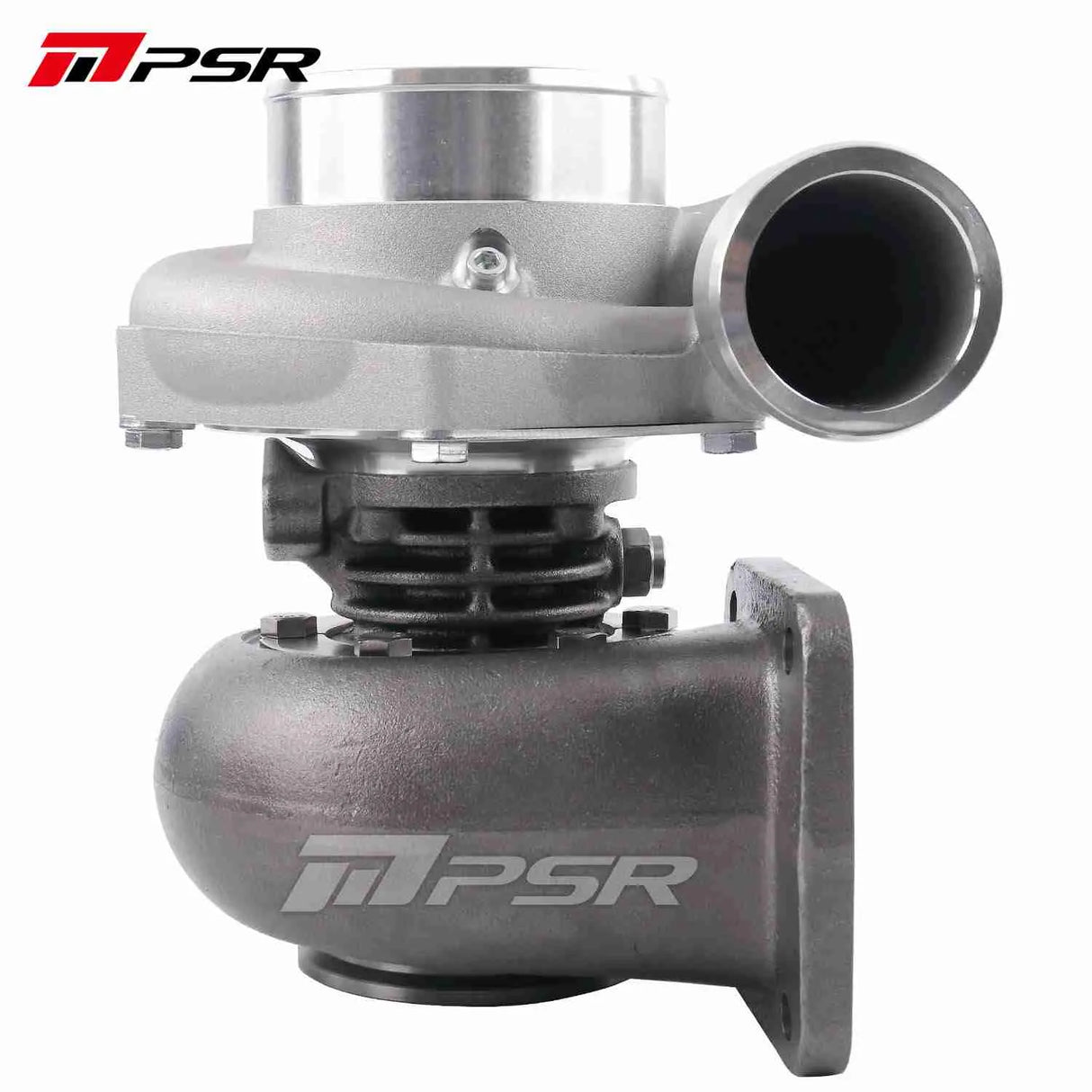

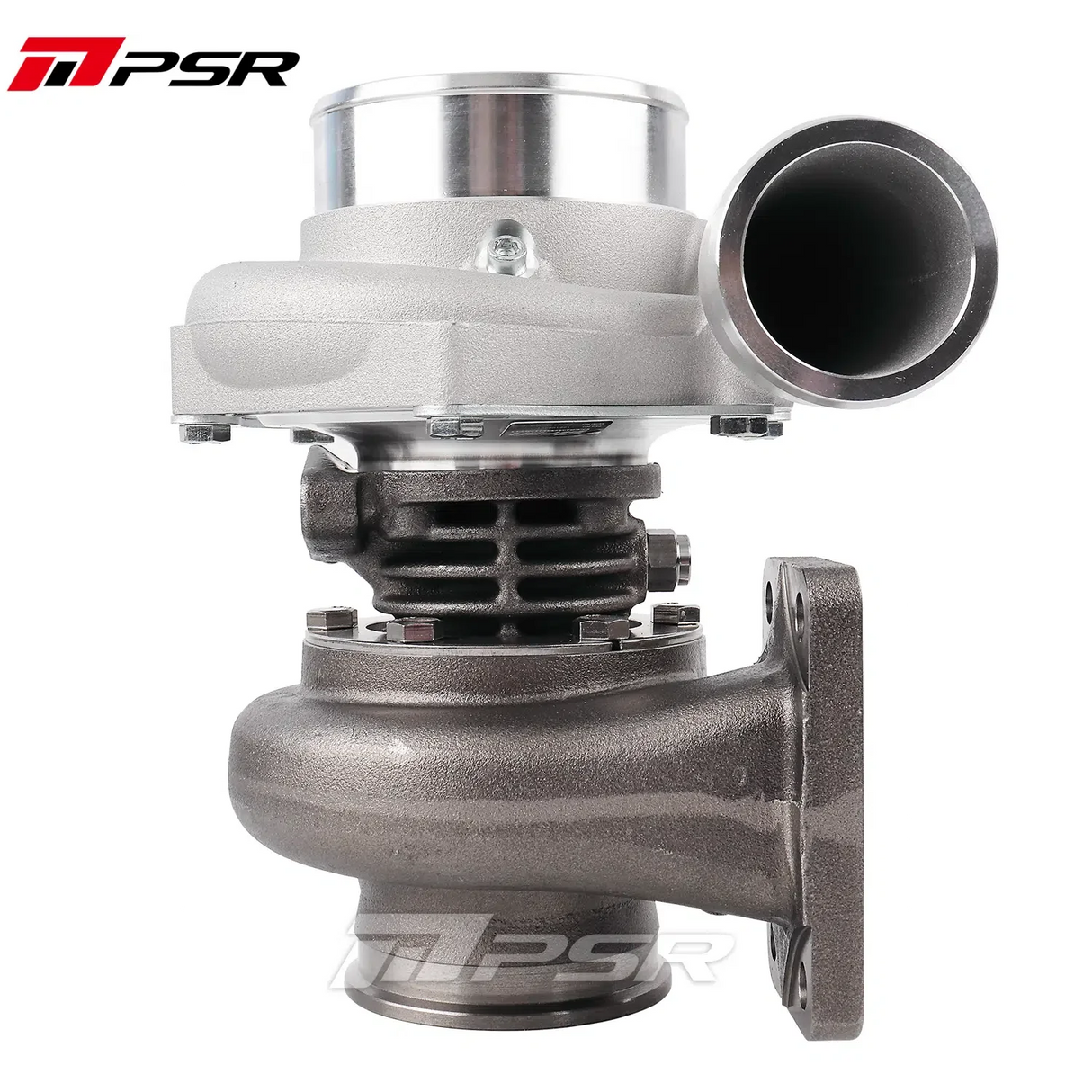

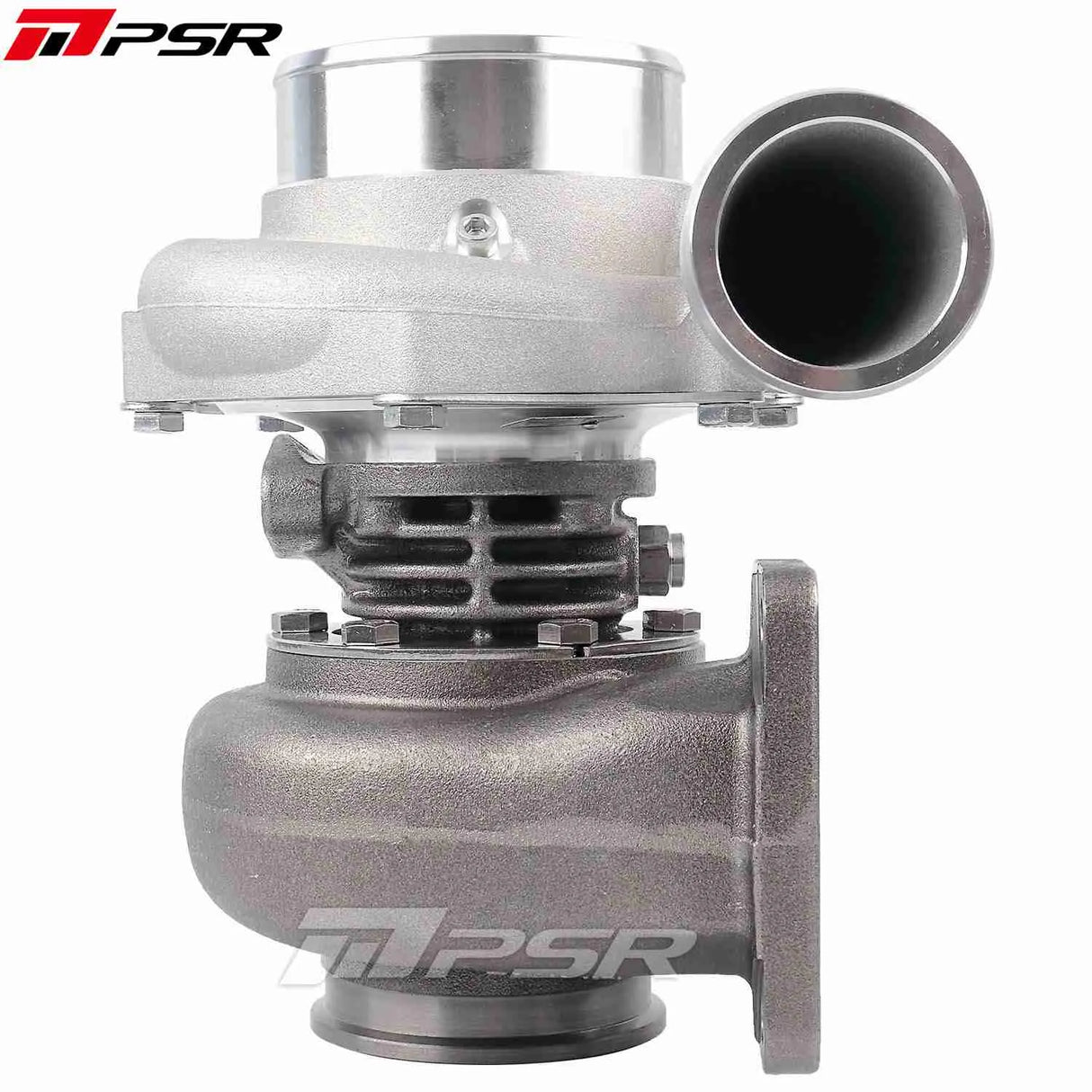

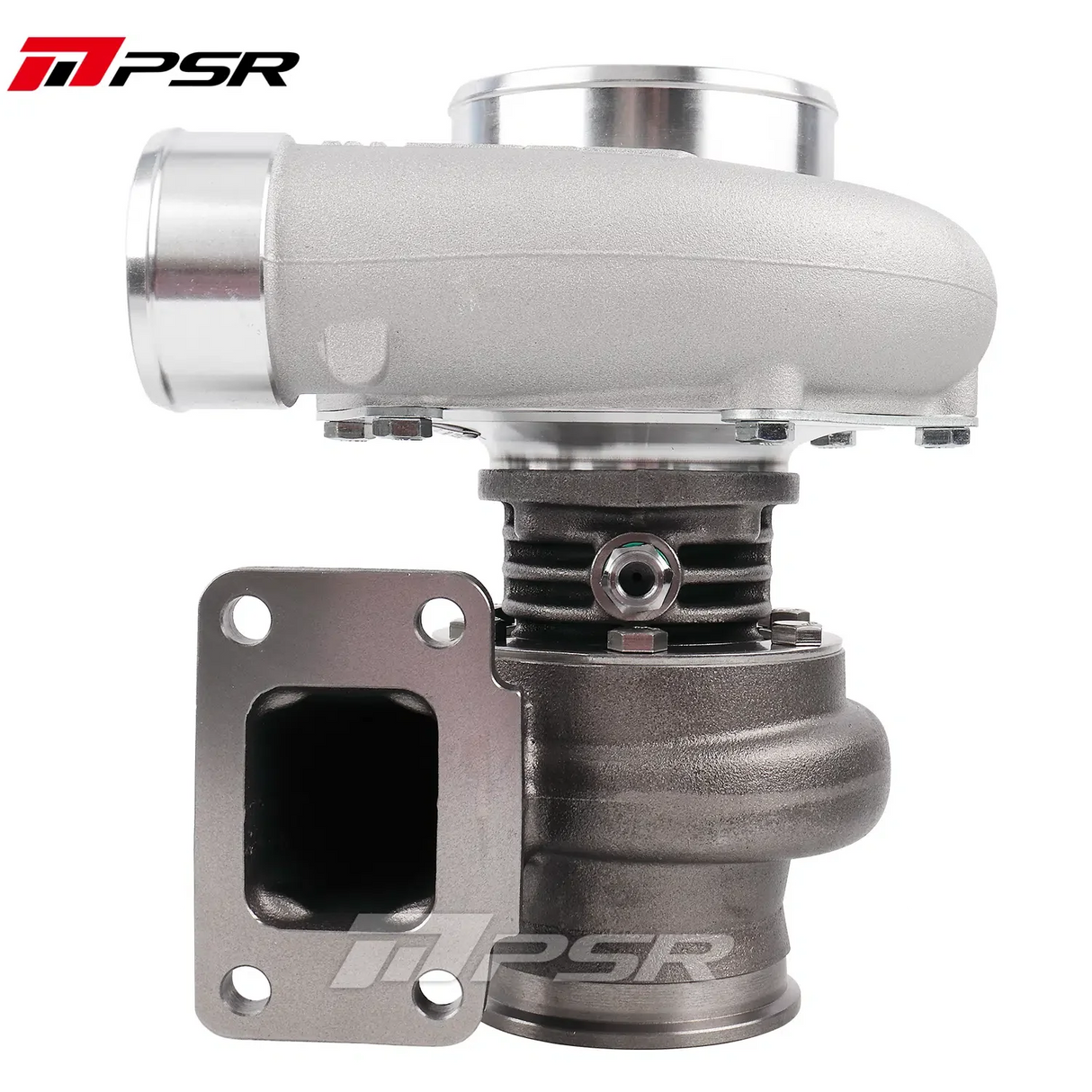

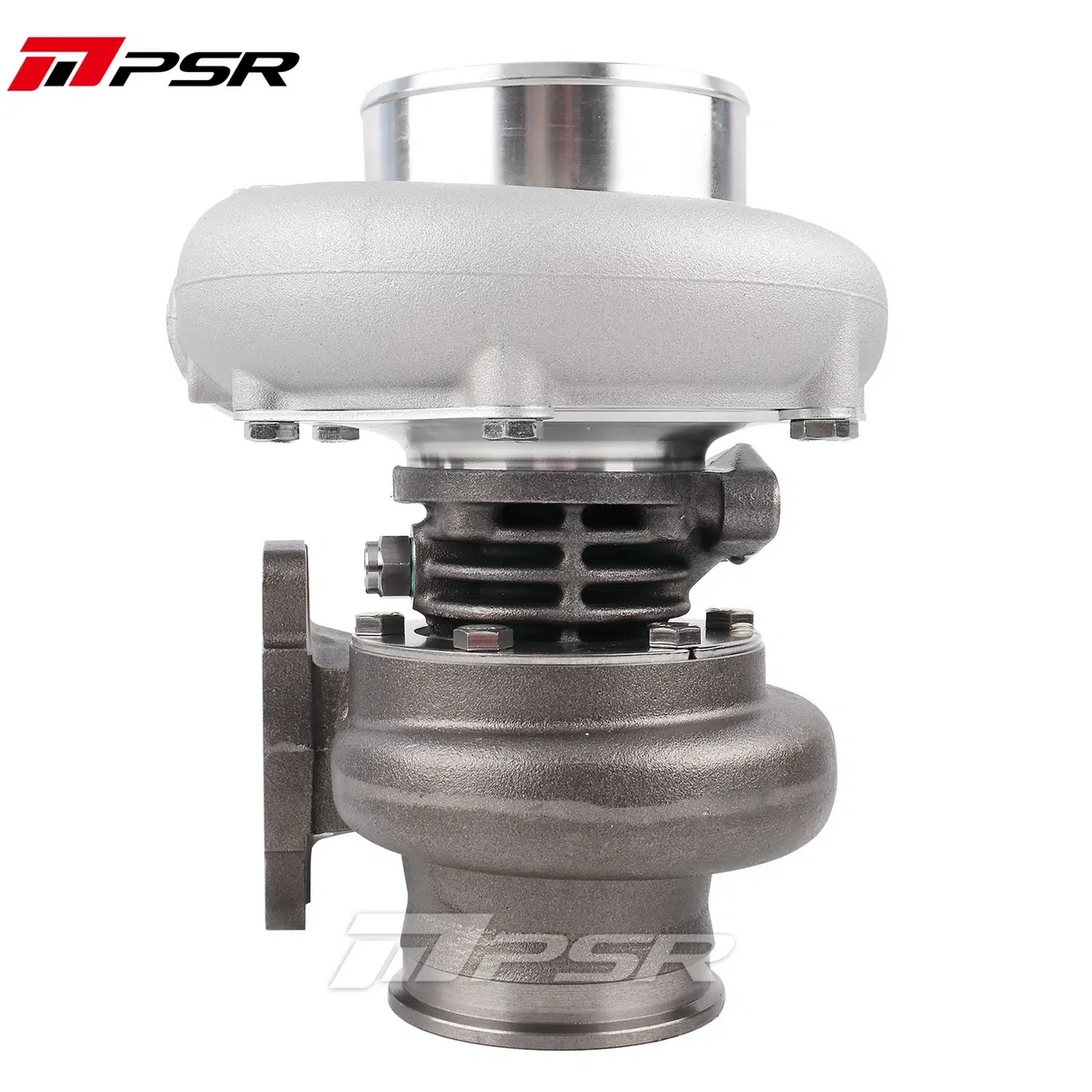

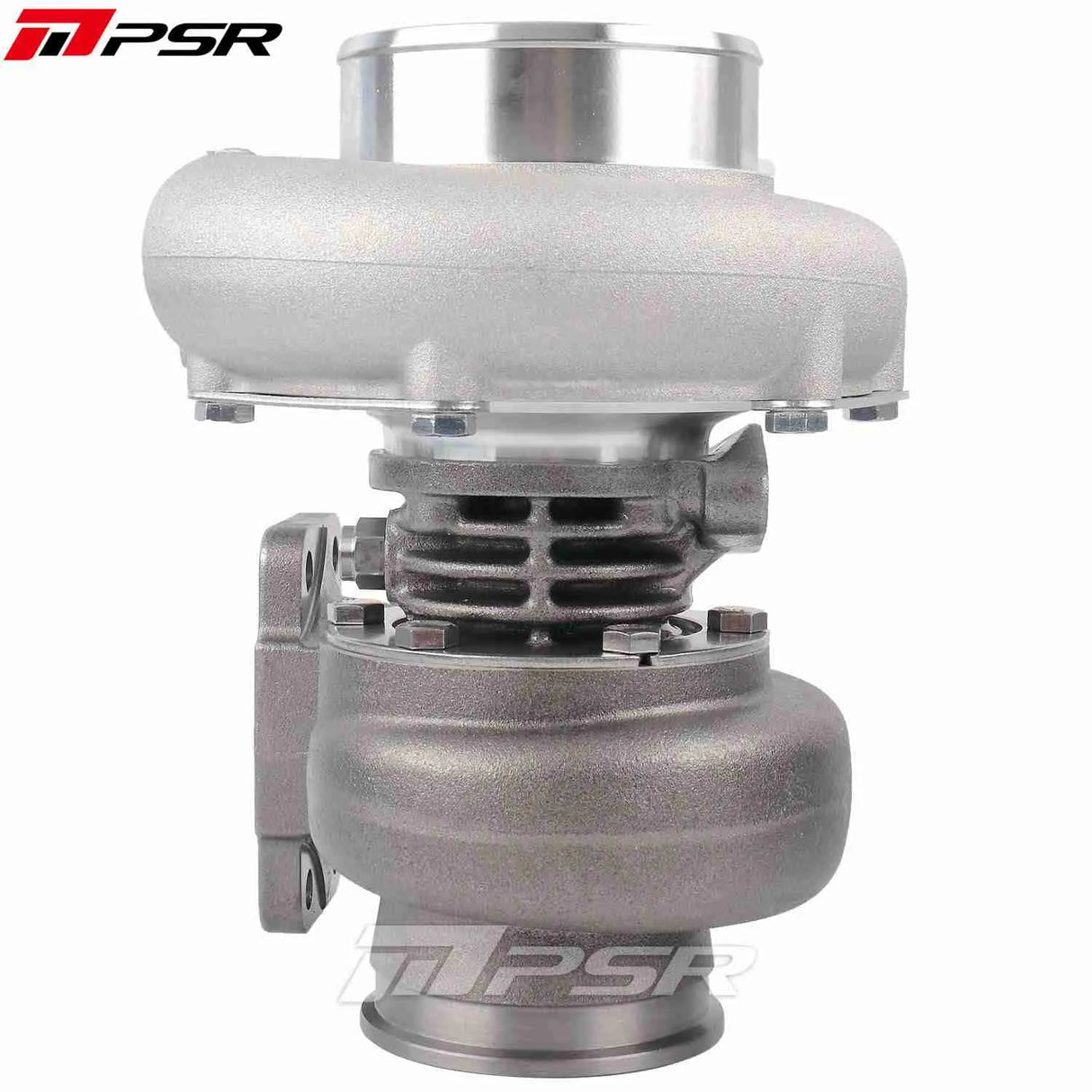

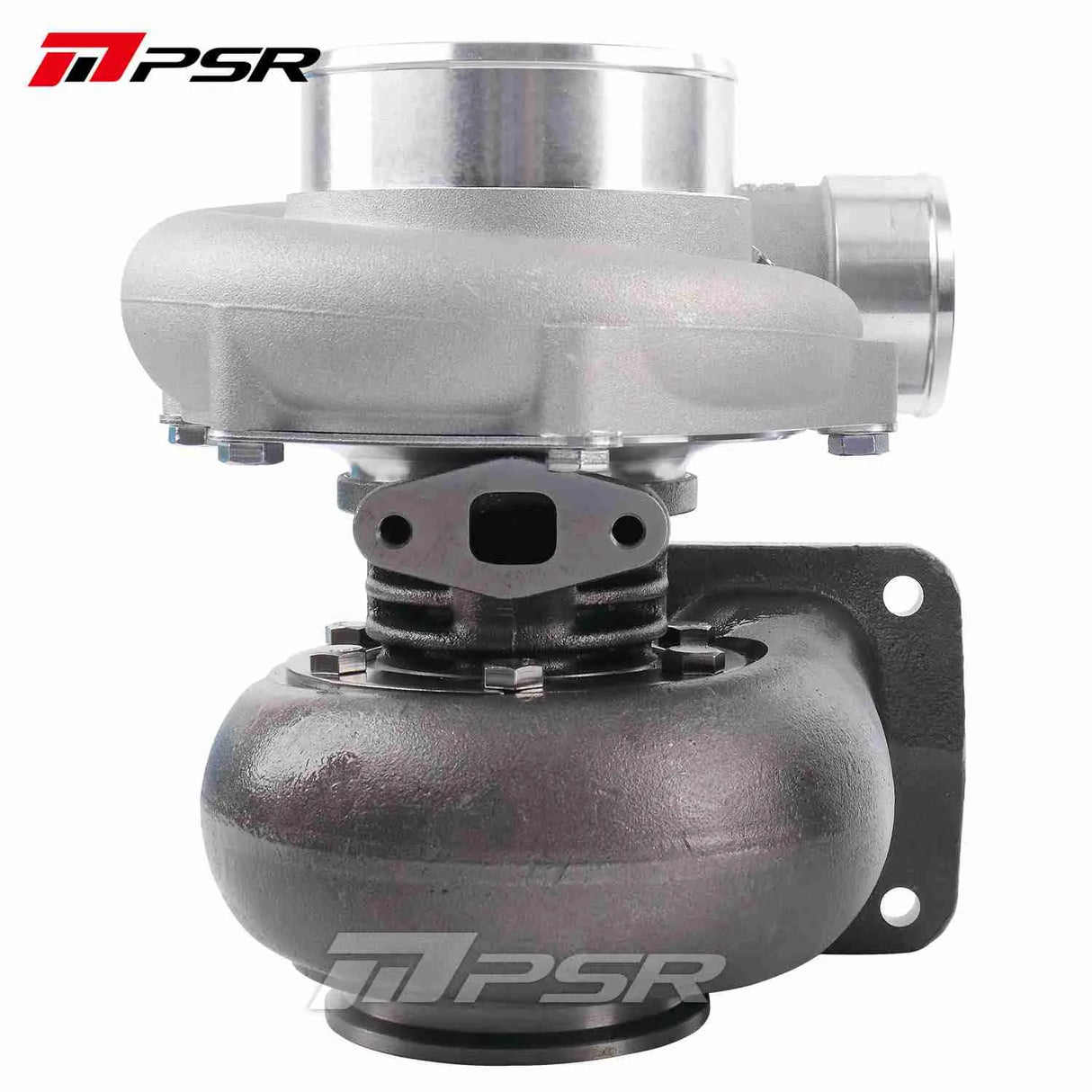

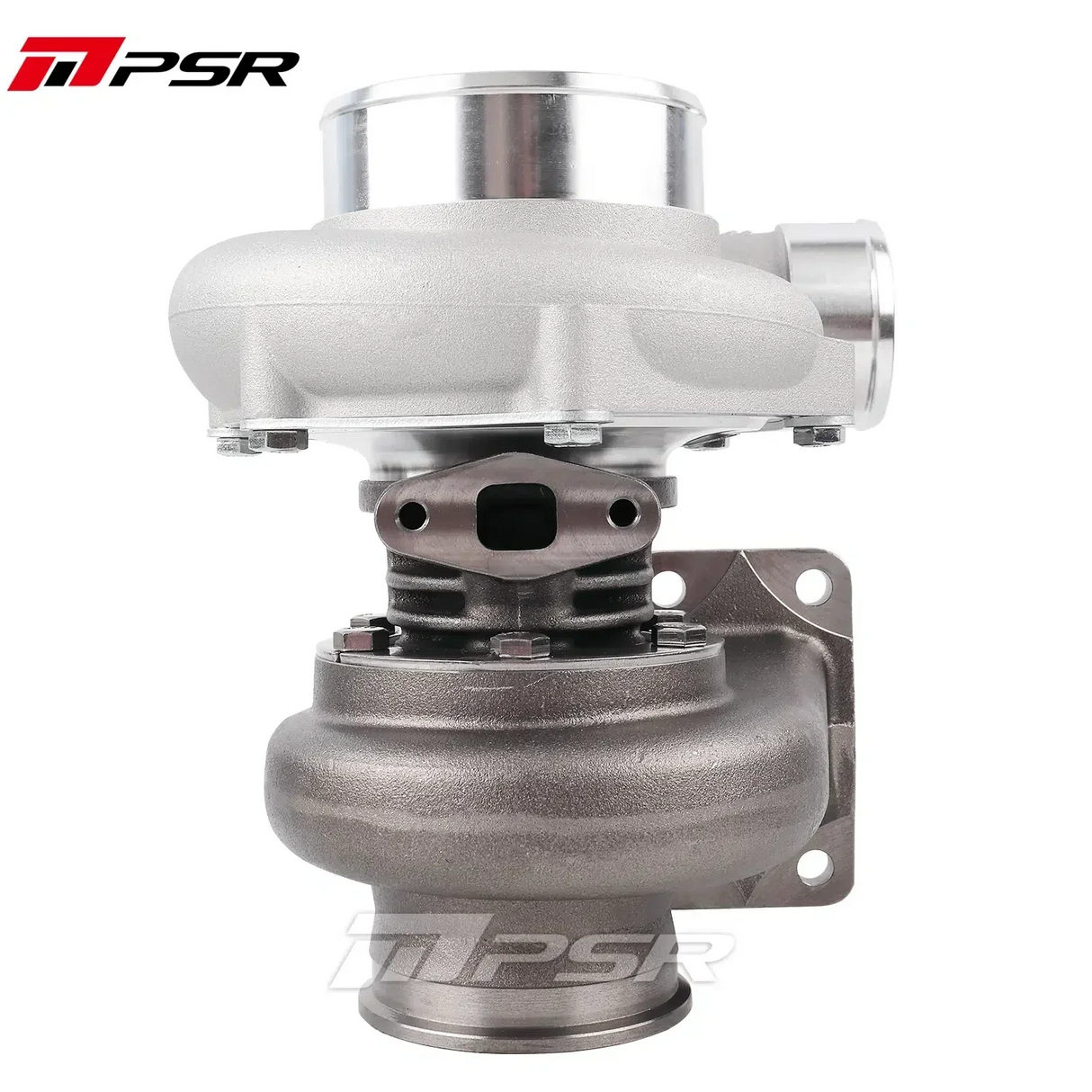

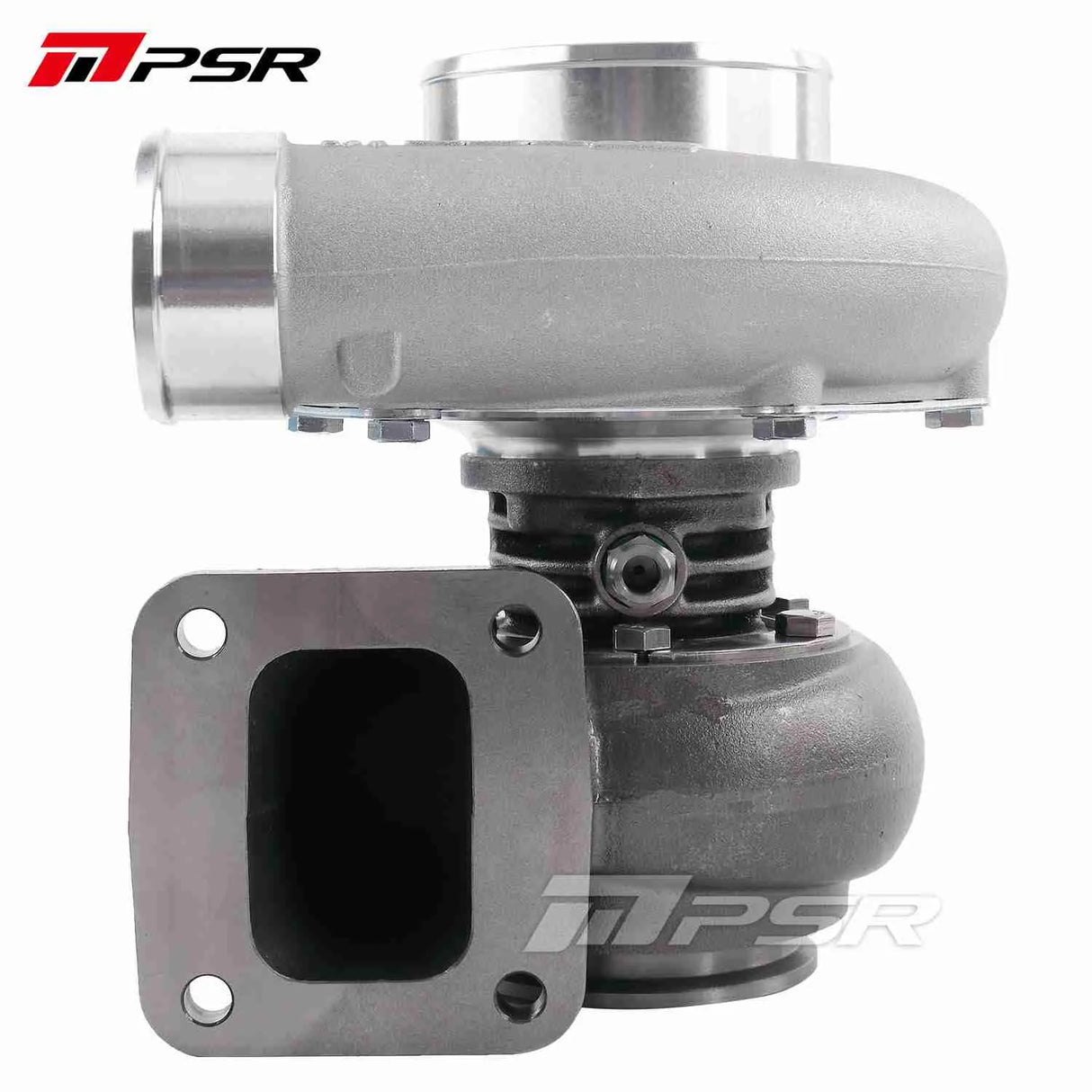

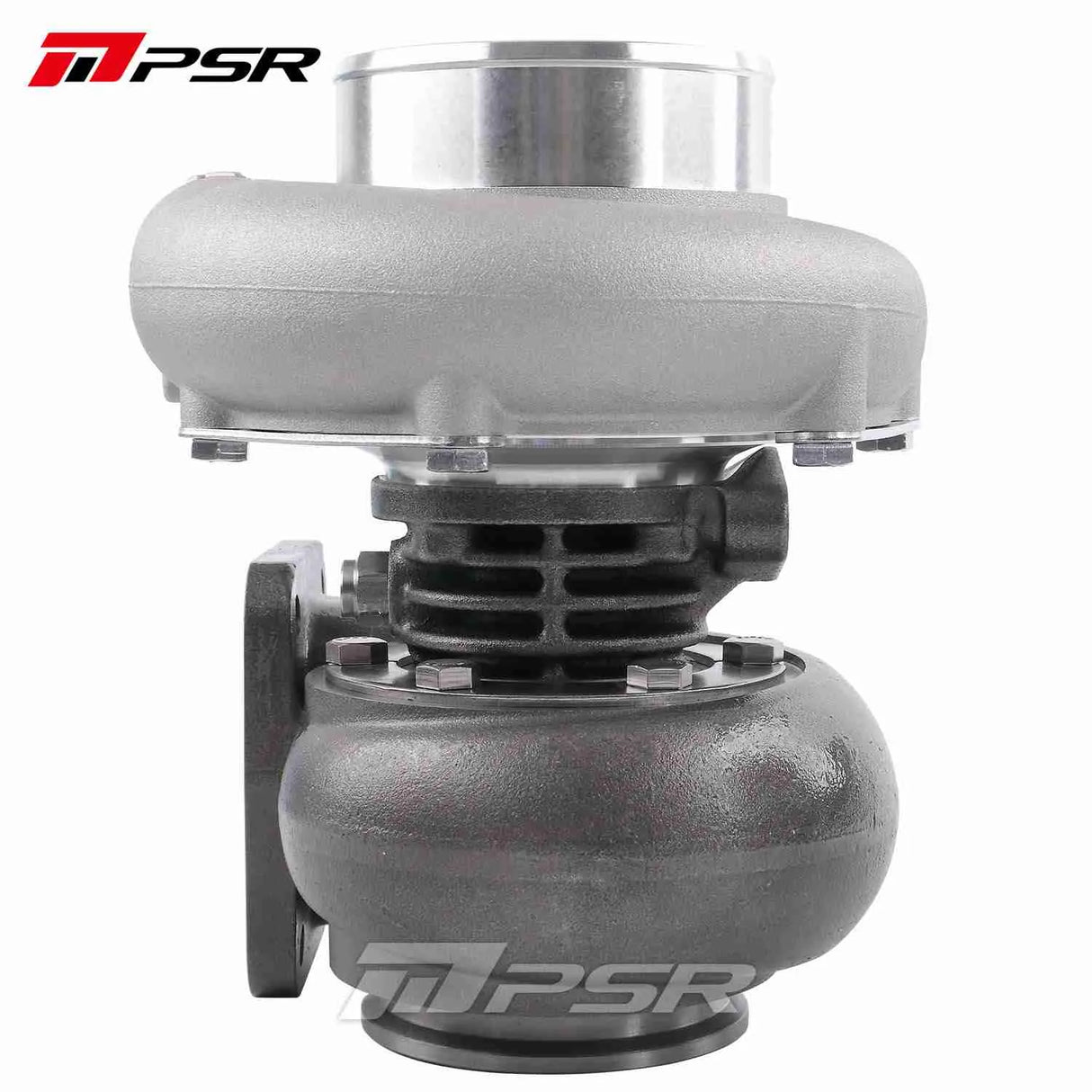

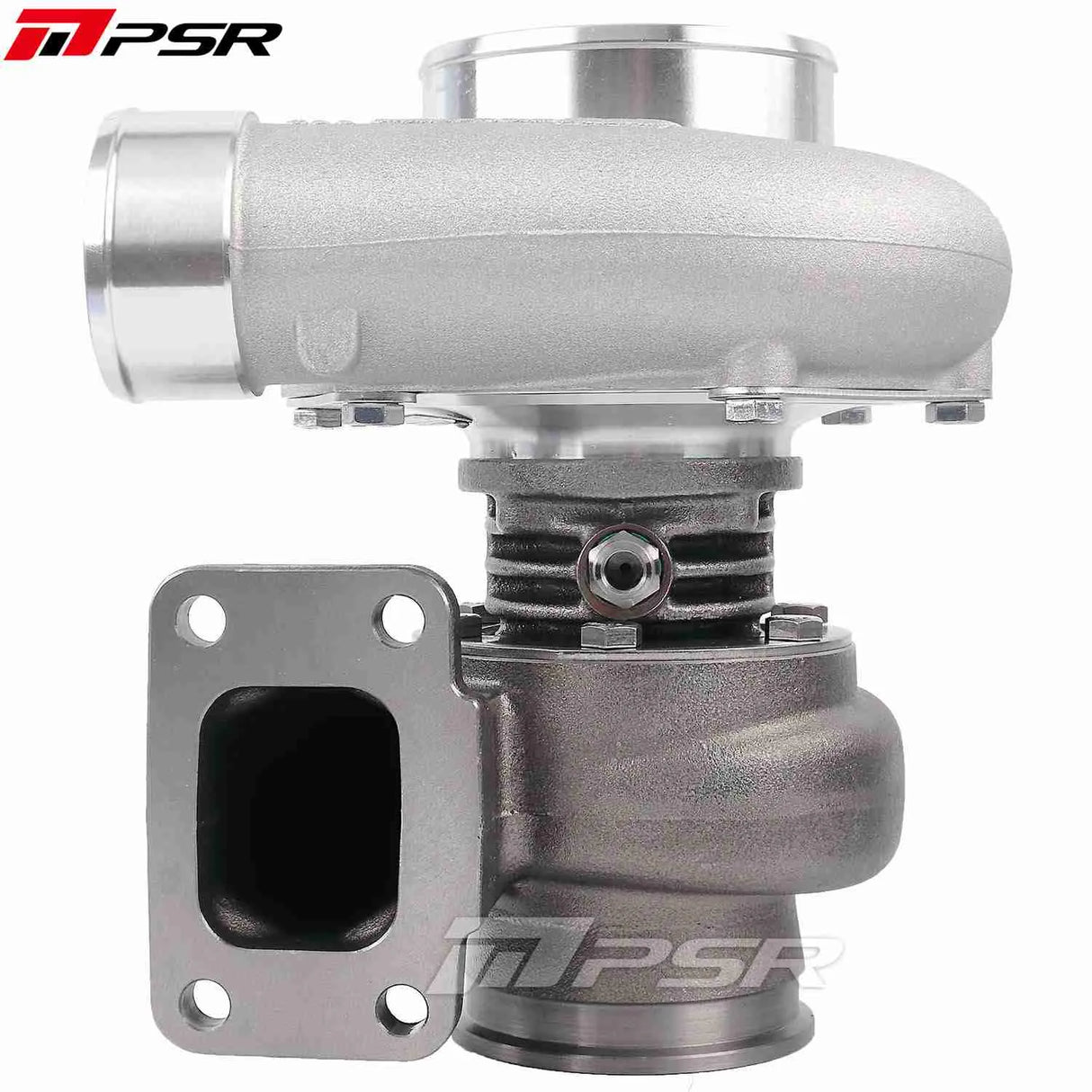

6466E Ball Bearing Turbo UP to 900HP

$1,470.63 $1,730.15
Tax included Shipping calculated at checkout.

Description
  • Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 900

Description:

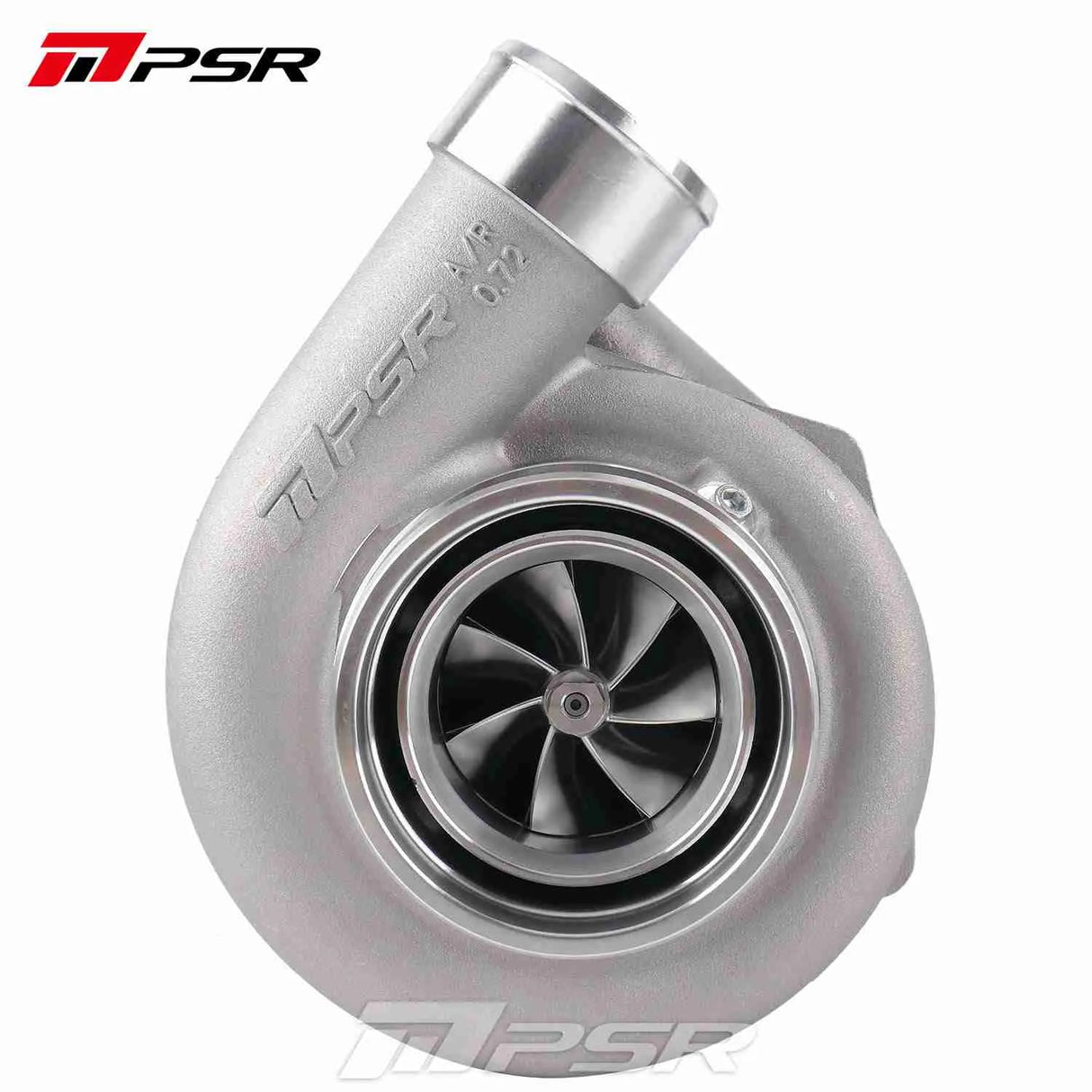

  • Billet Compressor Wheel: 64.4mm / 82.2mm / 87.1mm, 7+7 Blade

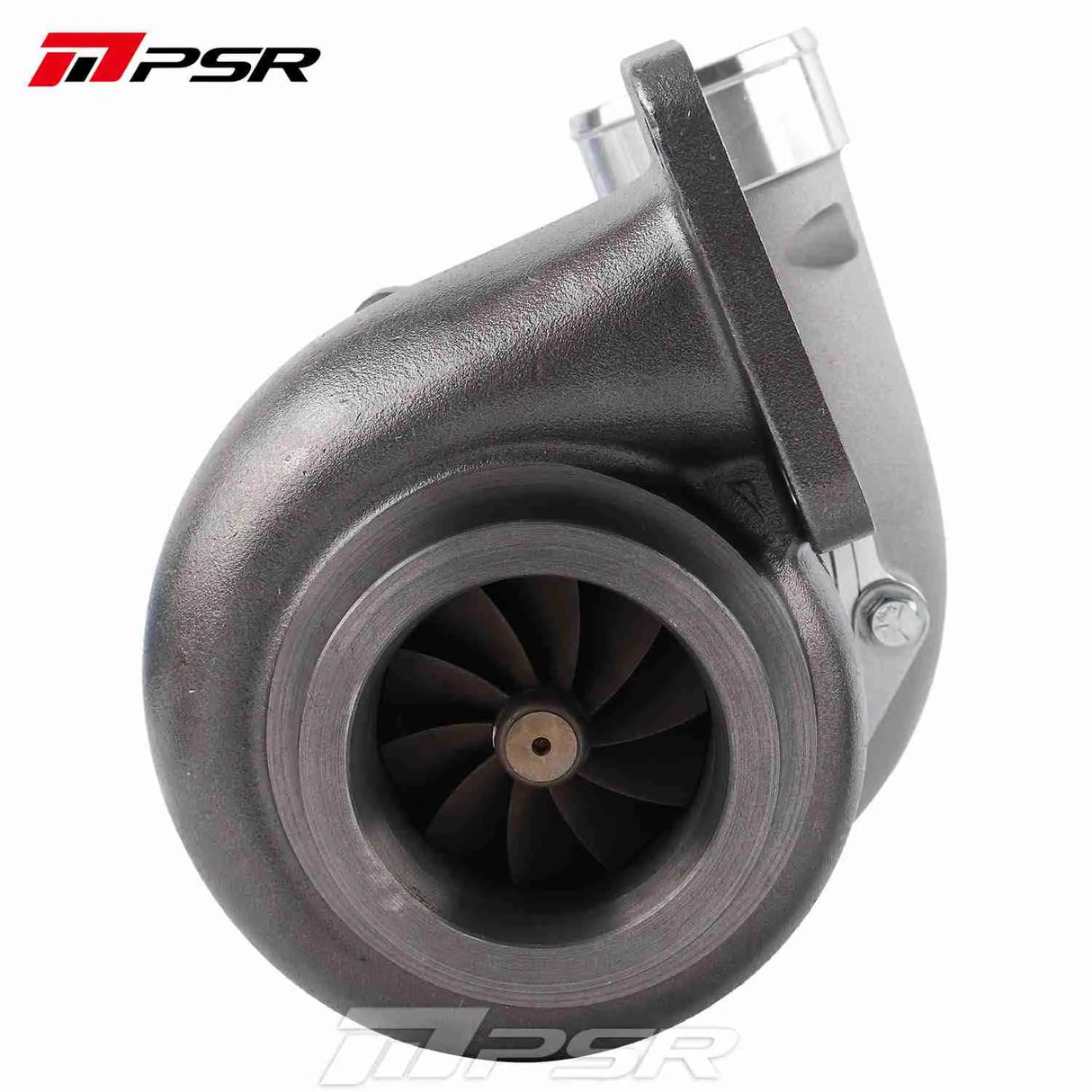

  • Turbine Wheel: 66.1 / 74.17mm, 10 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
  • Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose

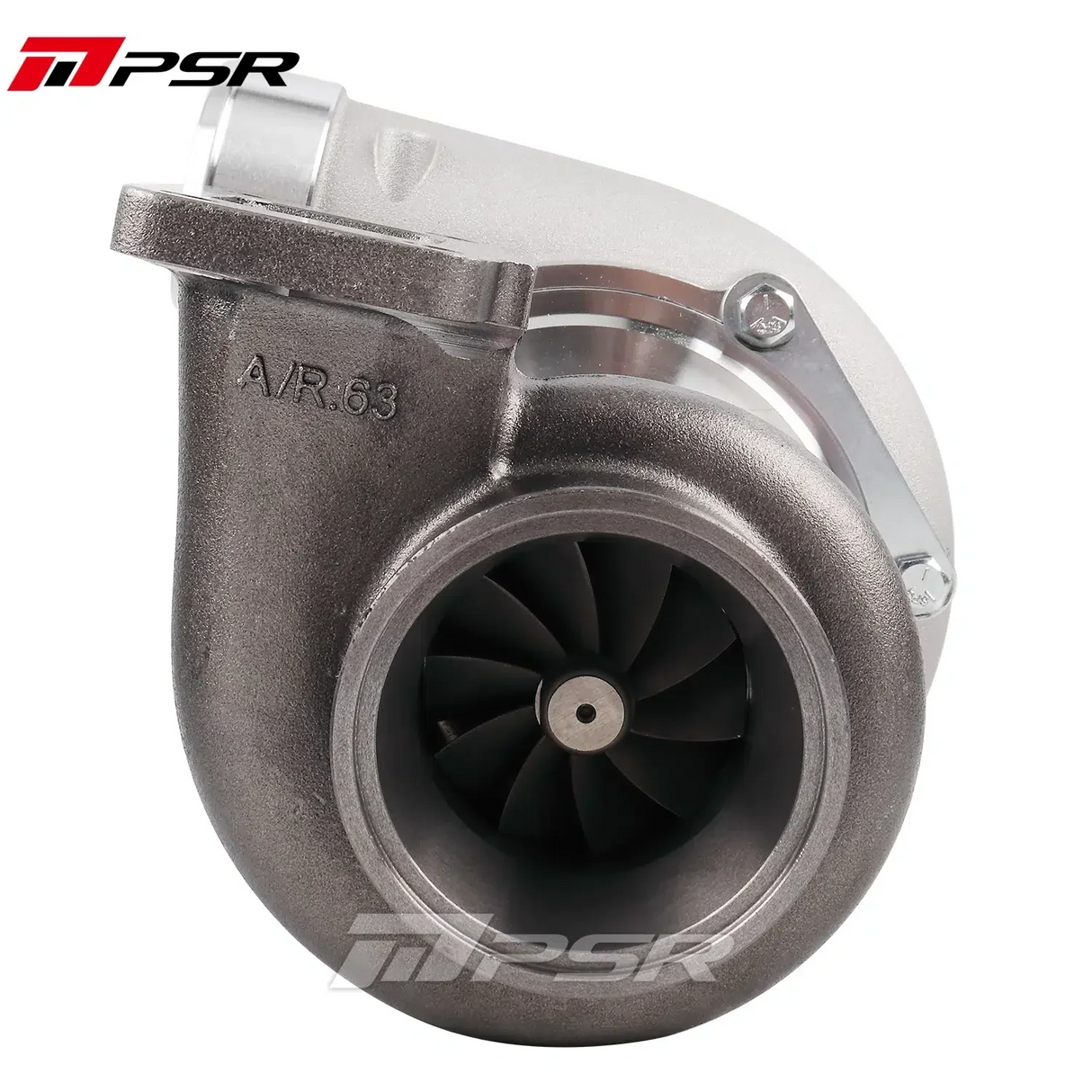

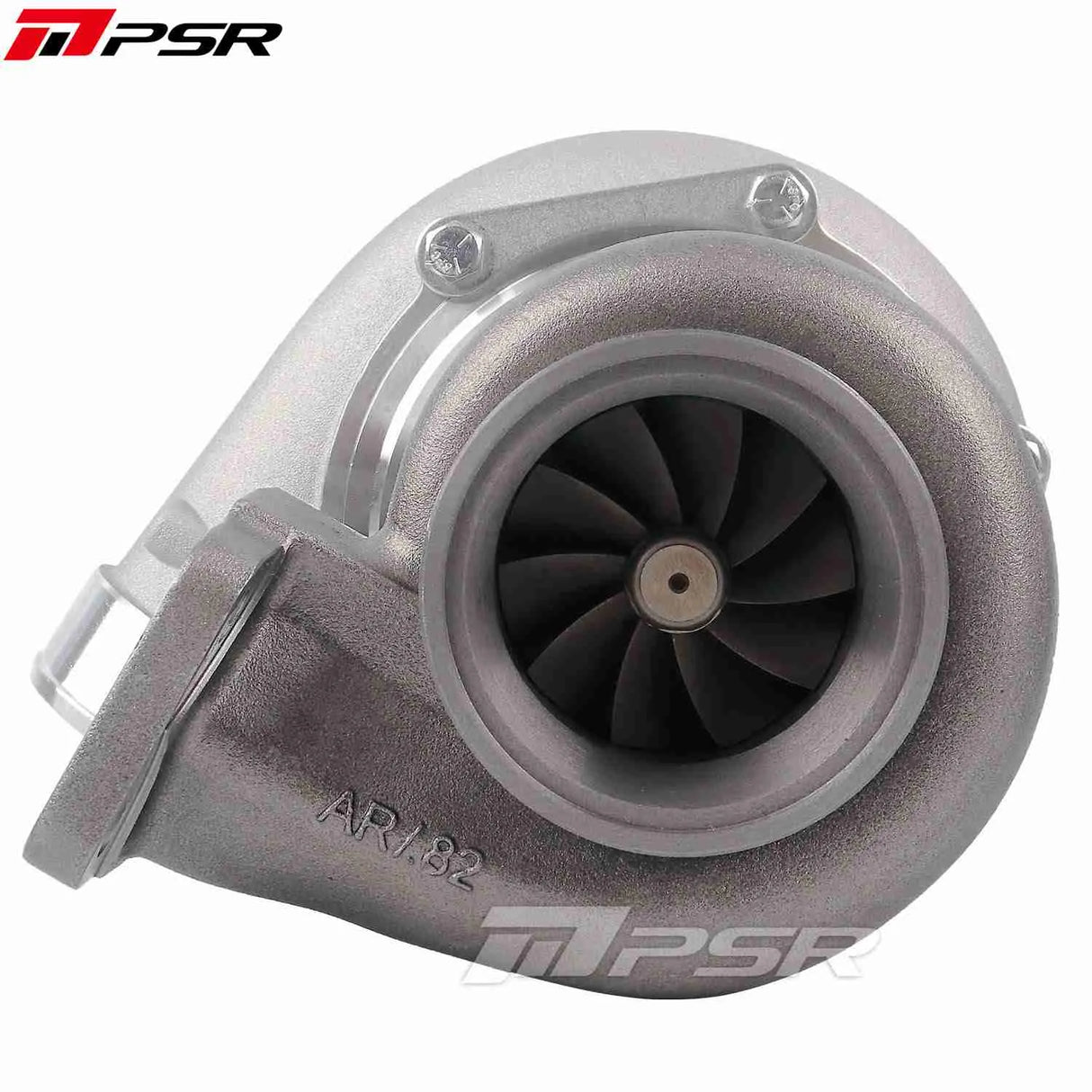

  • Turbine Housing: T3 0.63A/R, T3 0.82A/R, T4 0.96A/R
  • Oil feed fitting: 1/8-27 NPSF (Drawing 1)
  • Oil drain: T4 flange (Drawing 2)

NOTE:  For the options without Turbine Housing, you will receive a compressor cover only.

Drop in PSR 66466 Turbo Only

Oil Drain Fitting:

10 AN Standard

-10 AN Extended

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

LOOKING FOR A SPECIFIC PART?

Share announcements and information with your customers and welcome them to your store.

Enquire Now!
Pulsar Turbo Systems New Zealand

6466E Ball Bearing Turbo UP to 900HP

From $346.04 $407.10
  • Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
  • Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel
  • V-Band Flange kit for the exhaust housing included
  • Max Engine Horsepower: 900

Description:

  • Billet Compressor Wheel: 64.4mm / 82.2mm / 87.1mm, 7+7 Blade
  • Turbine Wheel: 66.1 / 74.17mm, 10 Blade
  • Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
  • Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
  • Turbine Housing: T3 0.63A/R, T3 0.82A/R, T4 0.96A/R
  • Oil feed fitting: 1/8-27 NPSF (Drawing 1)
  • Oil drain: T4 flange (Drawing 2)

NOTE:  For the options without Turbine Housing, you will receive a compressor cover only.

Drop in PSR 66466 Turbo Only

Oil Drain Fitting:

10 AN Standard

-10 AN Extended

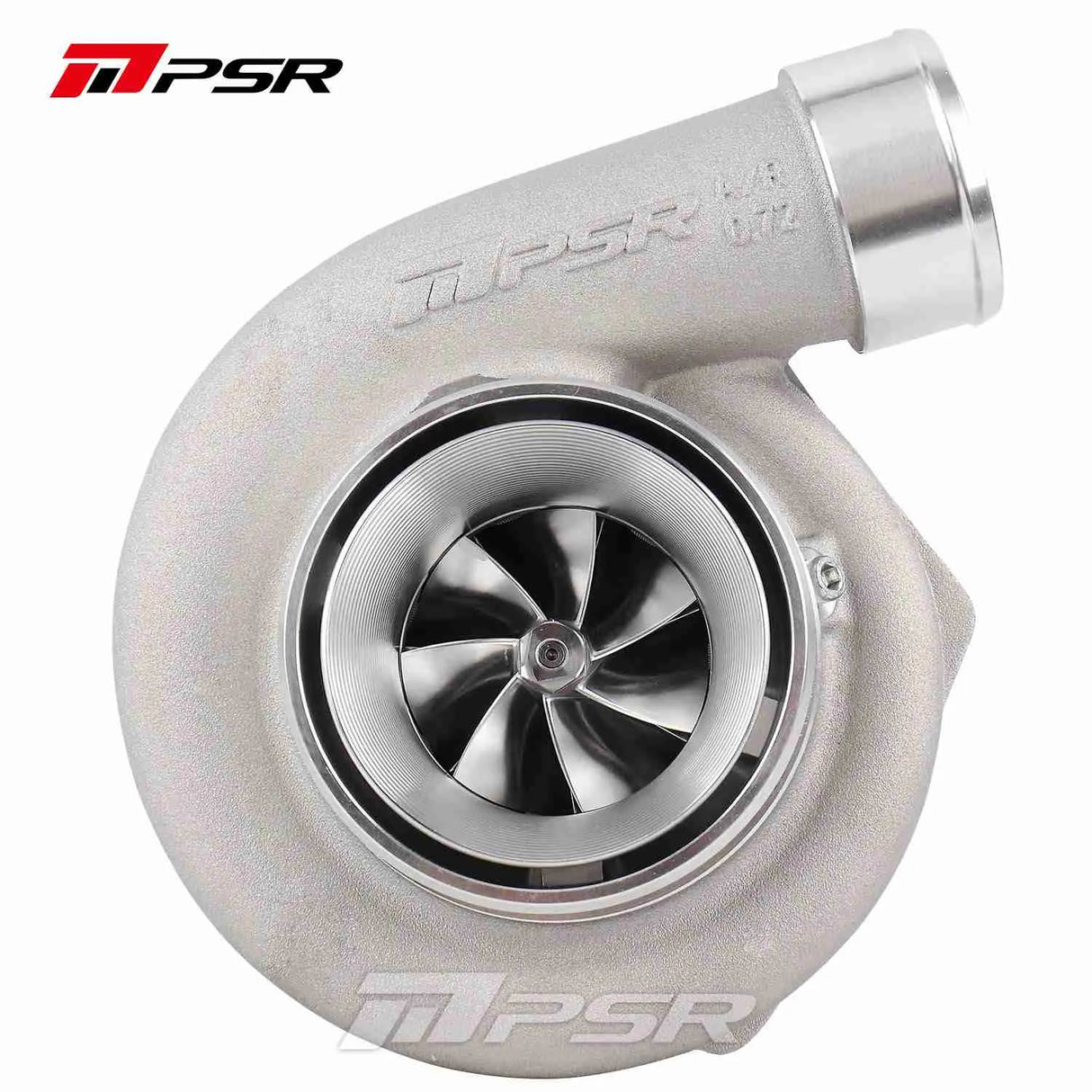

Compressor Cover Option

  • Standard
  • T51R Mod
  • STD Compressor Cover Separately
  • T51R Mod Compressor Cover Separately
  • Without Compressor Housing

Turbine Housing Option

  • T3 Inlet V-Band Outlet 0.63 A/R
  • T3 Inlet V-Band Outlet 0.82 A/R
  • T3 Divided Inlet V-Band Outlet 0.86A/R
  • T4 Open 0.63 A/R Stainless Steel
  • T4 Open Inlet V-Band Outlet 0.96 A/R
  • Without Turbine Housing
  • V-Band Inlet & V-Band Outlet 0.82A/R Stainless Steel
  • V-Band Inlet & Outlet 0.96A/R
