Oil Block (AN10) "1JZ / 2JZ"
Oil Block (AN10) "1JZ / 2JZ" is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
Oil Block (AN10) "1JZ / 2JZ"
Description
Description

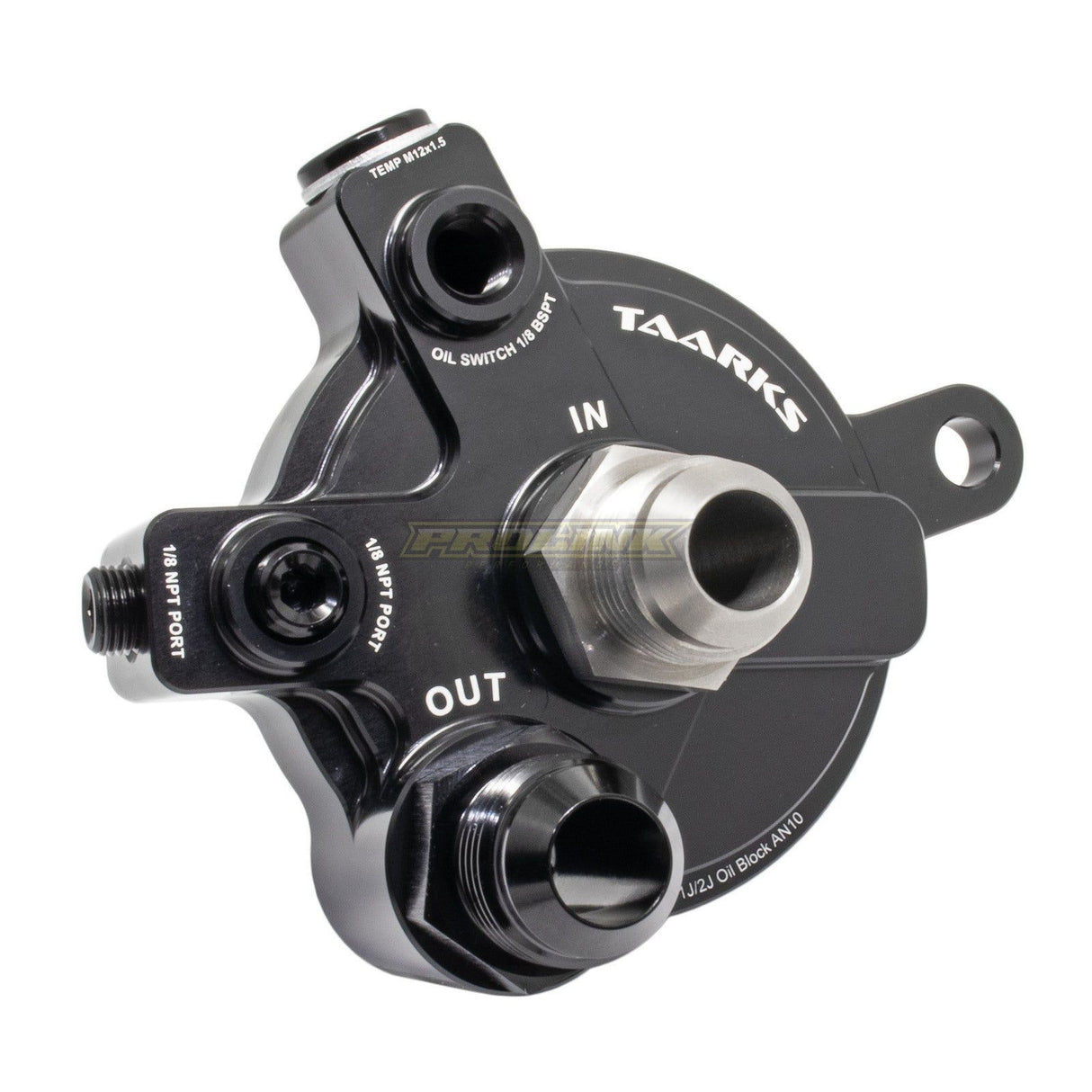

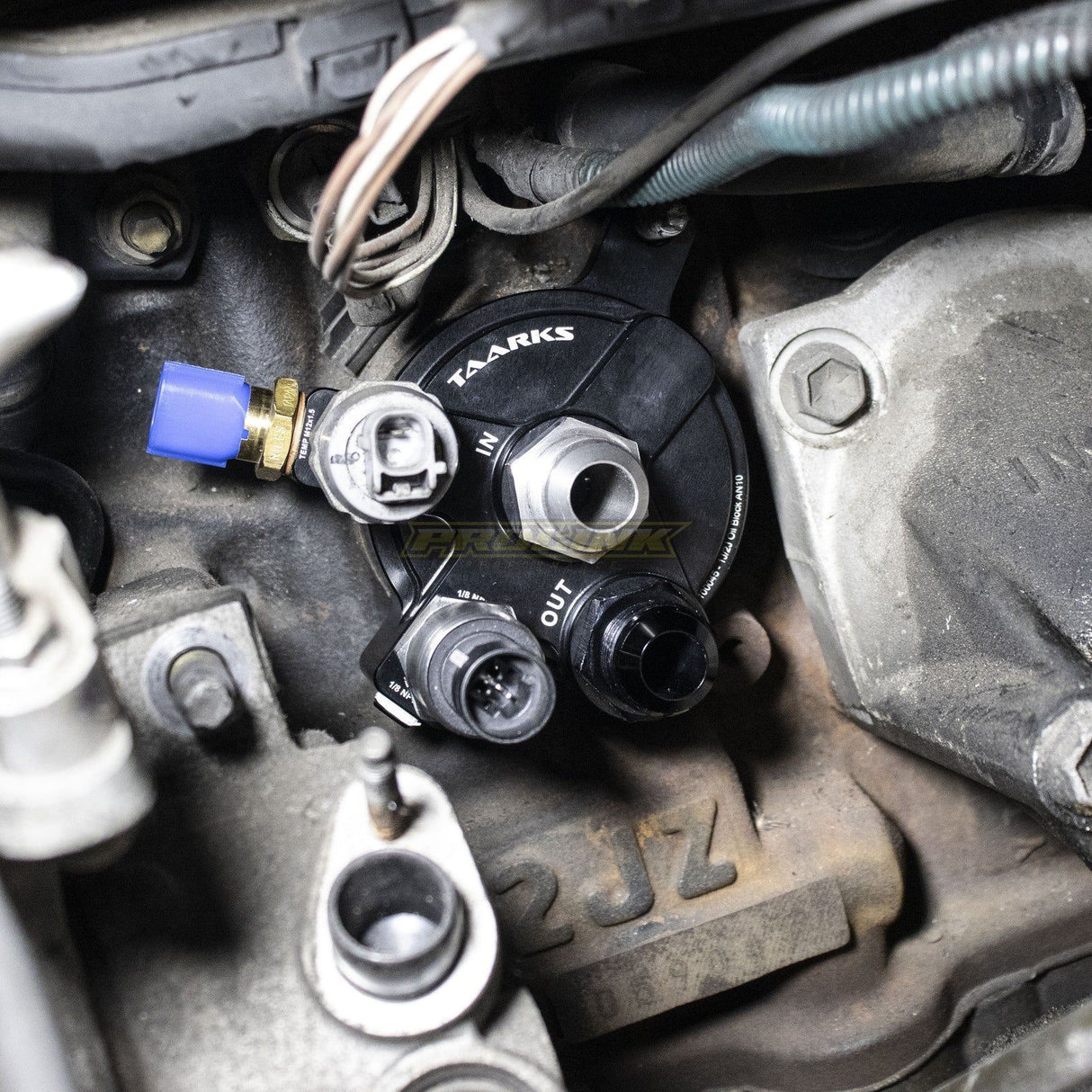

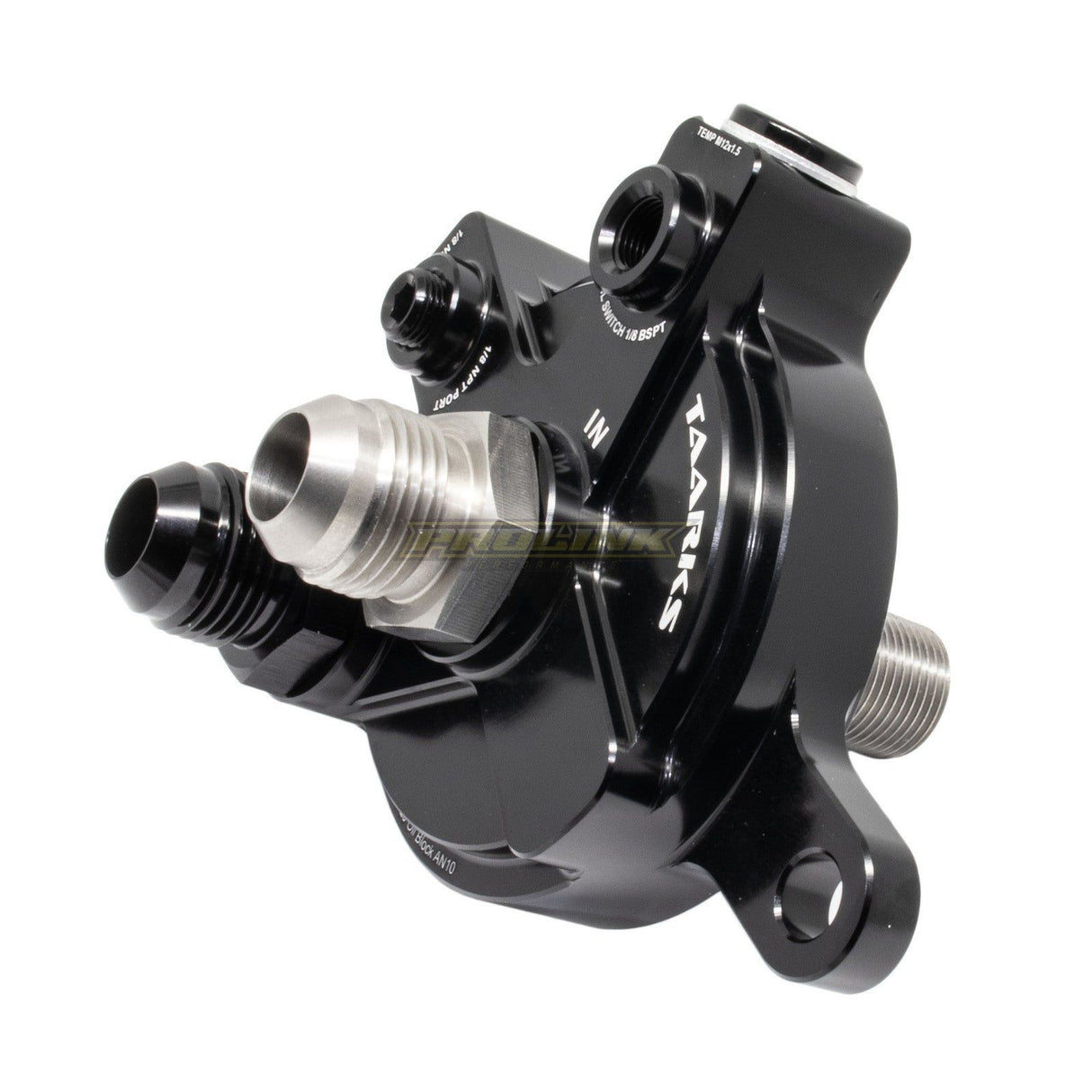

This is a direct replacement for the standard 1JZ & 2JZ oil filter block / oil cooler, this allows you to run an oil filter relocator and/or oil cooler without fear of the screw on type adapters leaking.
These have also been designed with extra sensors / gauges in mind, they have an additional 2x 1/8" NPT ports & 1x M12x1.5 temp sensor port on top of the factory sensor port.
Benefits over other designs:
These use standard type o-rings that are easily found at most bearing and seal shops if they ever need replacing. No gaskets required.
Laser etched with oil flow direction.
CNC Machined from 6061-T6 Billet aluminum.
Anodised to stop corrosion

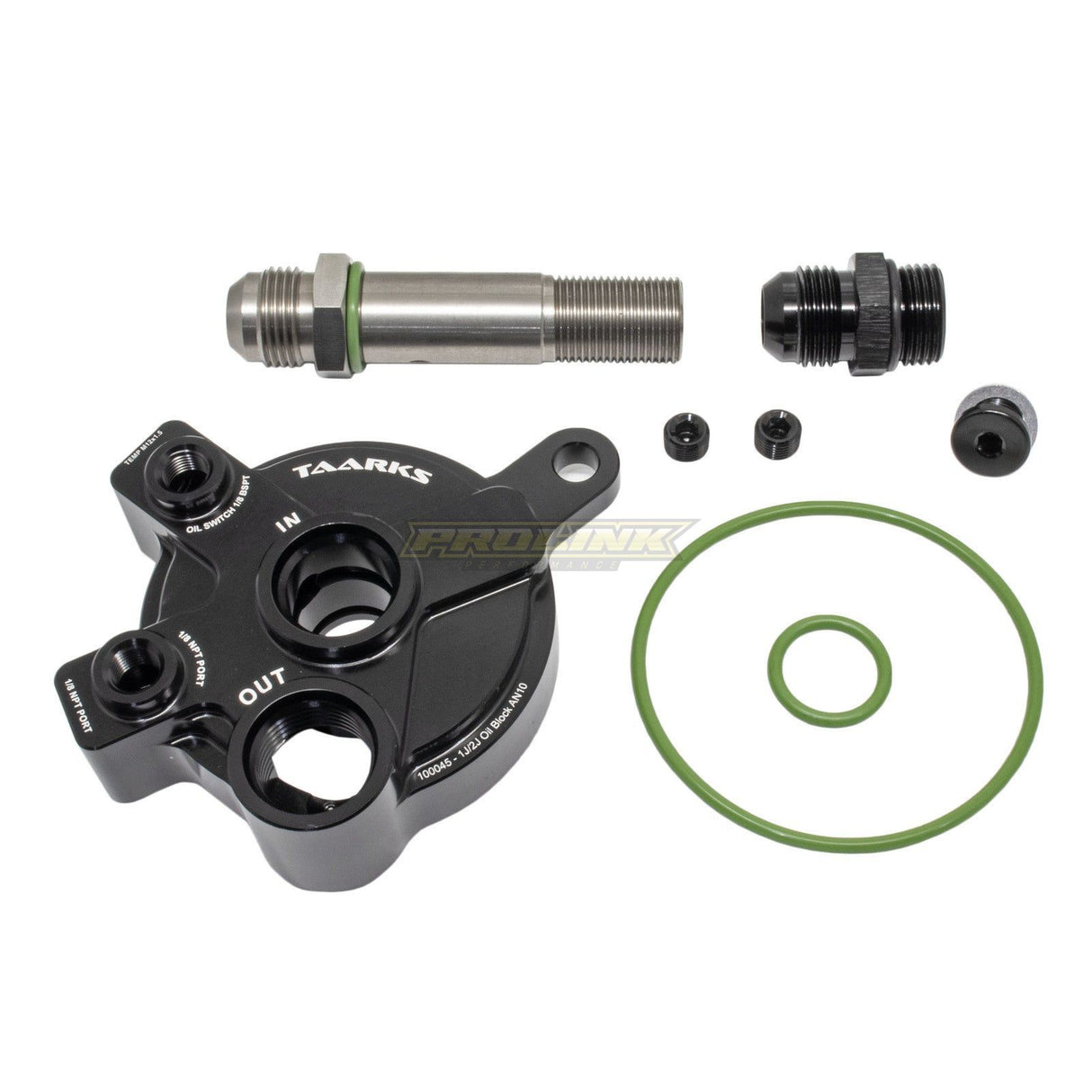

The kit includes:
- 1x Oil Block (Black)
- 1x AN10 ORB Fitting (Black)
- 1x AN10 ORB Mouting Stud (Stainless Steel)
- 2x 1/8" NPT Plug
- 1x M12x1.5 Plug
- 2x Viton O-rings
**Sensors are not included.
Application:
Fits Toyota 1JZ Engines
Fits Toyota 2JZ Engines
