Pulsar Turbochargers | SKU:

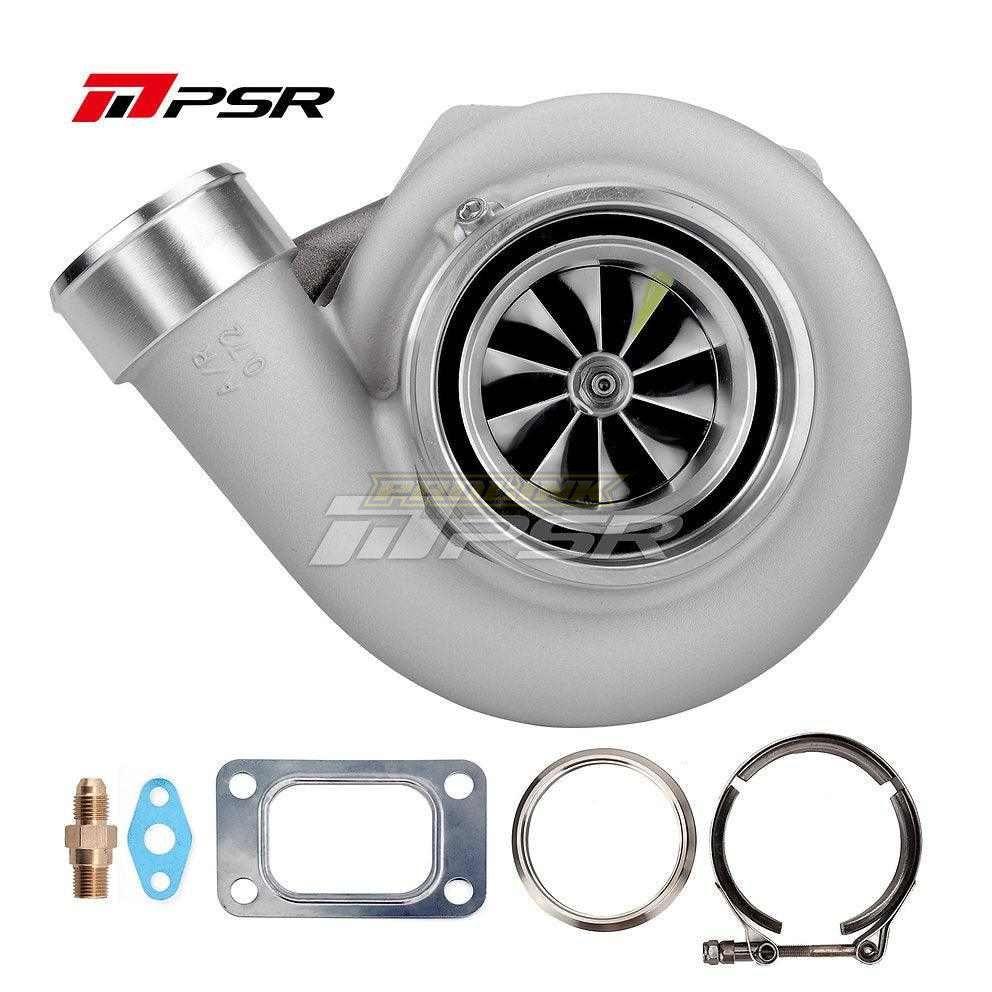

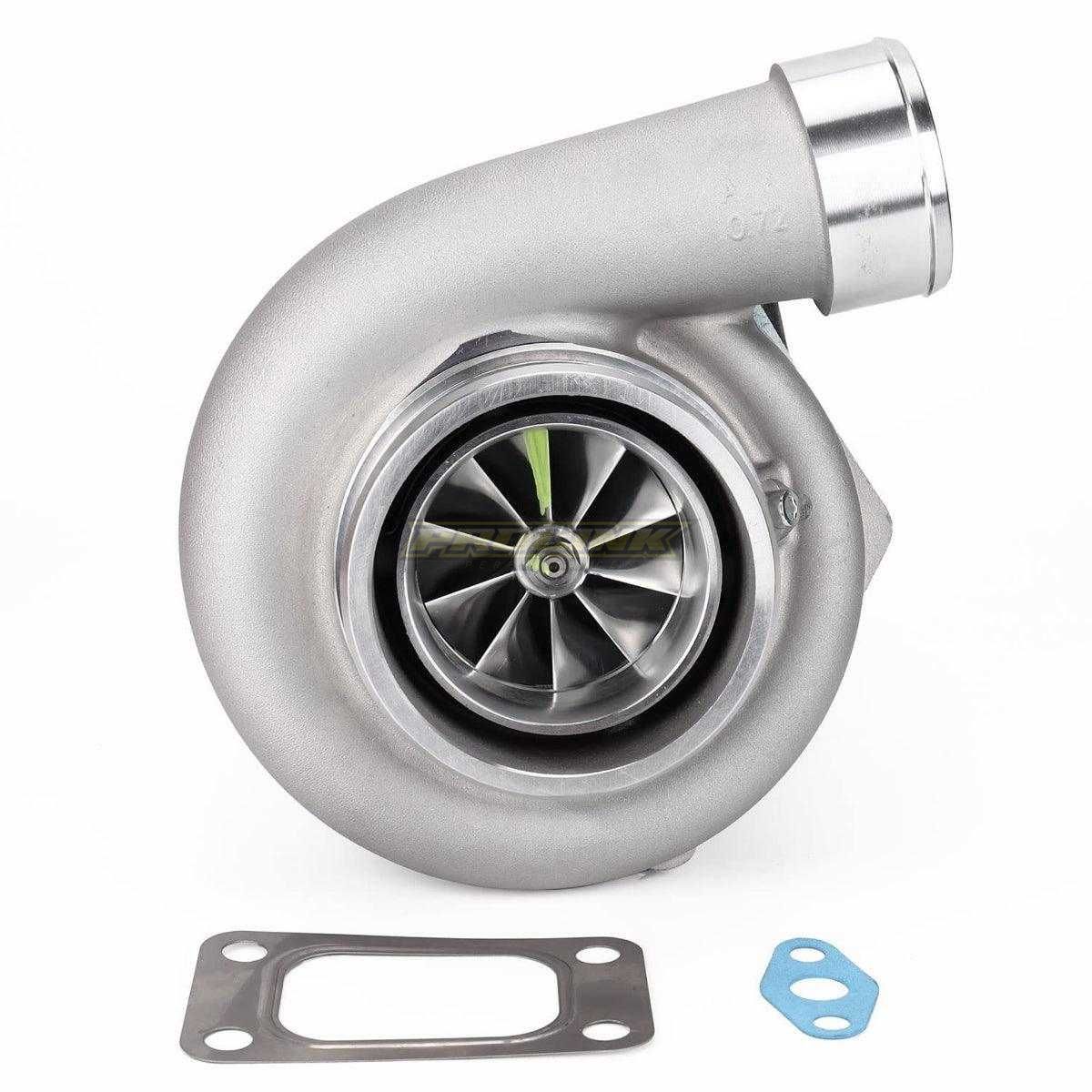

PULSAR GTX3576 GEN2 Turbocharger
$1,092.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
PULSAR GTX3576 GEN2 Turbocharger - Standard / Without Turbine Housing is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
PULSAR GTX3576 GEN2 Turbocharger
From
$958.00
Unit price
/
Unavailable
Description
Description
- Dual Ceramic Ball Bearing System
- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82, 1.06 A/R V-Band outlet, etc. turbine housings In option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
Specs
- Compressor Wheel: 58*76mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.0 Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
