Exhaust Gas Temperature Probe 101-0146
$201.25
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Exhaust Gas Temperature Probe 101-0146 is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
Exhaust Gas Temperature Probe 101-0146
$201.25
Unit price
/
Unavailable
Description
Description

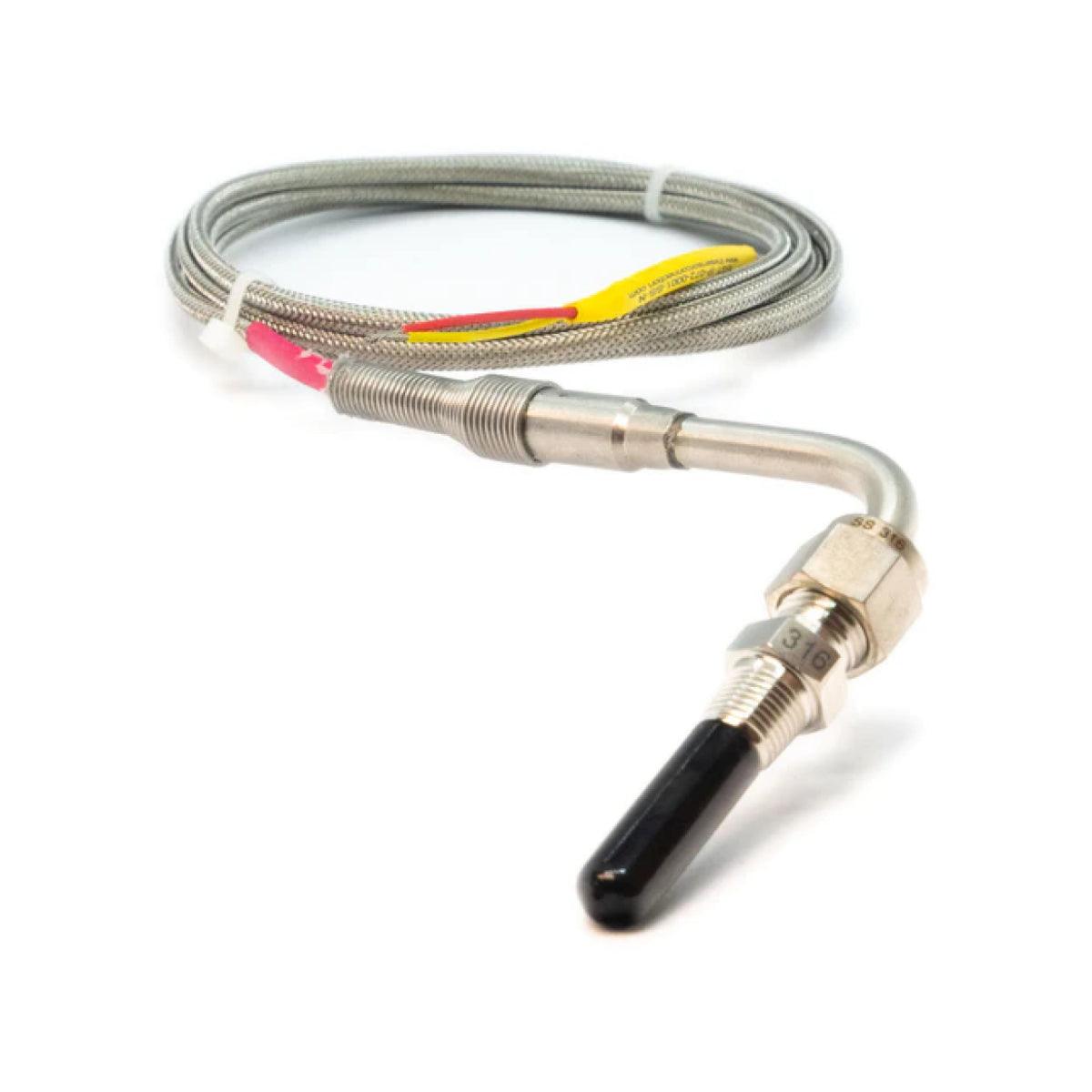

Extreme Duty Fast Response EGT Temperature Probe
Type K thermocouple probe
Exposed sensing junction for fastest response
Includes 316 SS adjustable compression fitting
Stainless steel protected wires
Designed for extreme engine test & racing environments
When using this with an ECU other than the Thunder, you will need to use an amplifier.
Specifications
Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
Wiring: + = Yellow – = Red
Type K thermocouple probe
Exposed sensing junction for fastest response
Includes 316 SS adjustable compression fitting
Stainless steel protected wires
Designed for extreme engine test & racing environments
When using this with an ECU other than the Thunder, you will need to use an amplifier.
Specifications
Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C)
Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm)
Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS
*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value
Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge
Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
Wiring: + = Yellow – = Red
