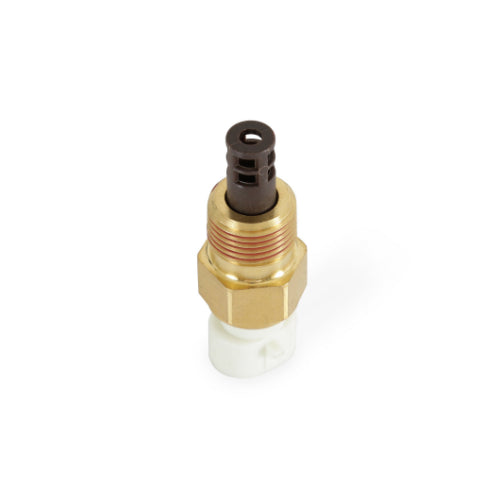

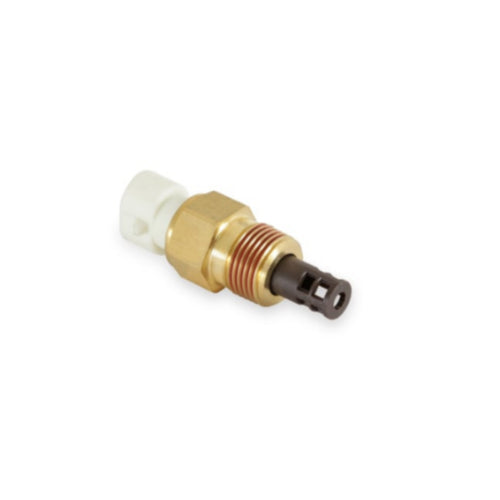

AEM Air Inlet Temperature Sensor, 3/8' NPT Male Thread
AEM Air Inlet Temperature Sensor, 3/8' NPT Male Thread is a special order in item. They take approximately 3 - 5 working days to arrive to us. Please get in touch with in prior to ordering if you are needing something more urgently.
Couldn't load pickup availability
AEM Air Inlet Temperature Sensor, 3/8' NPT Male Thread
Description
Description
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
30-2010 - Air Temp Sensor Kit
- Accuracy: < 1.5°C / 2.7°F
- Operating Temp: -40C to 135C / -40F to 275F
- Resistive Range (Ω): See Table
- Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
- Sensor Body Material: Brass
- Thread: 3/8" NPT
- Hex Size: 3/4"
- Installation Torque: 20Nm / 15 ft-lbs
- Weight: 33.3g
- Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

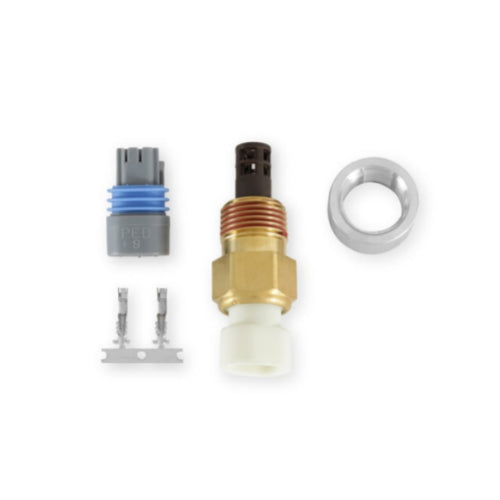

- Includes: Air Temp Sensor, 3/8" NPT Aluminum Bung, Mating Connector, Pins & Wire Seals
30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
30-2010: Air Temp Sensor with 3/8' NPT Male Thread, Aluminum Bung, Connector & Pins
